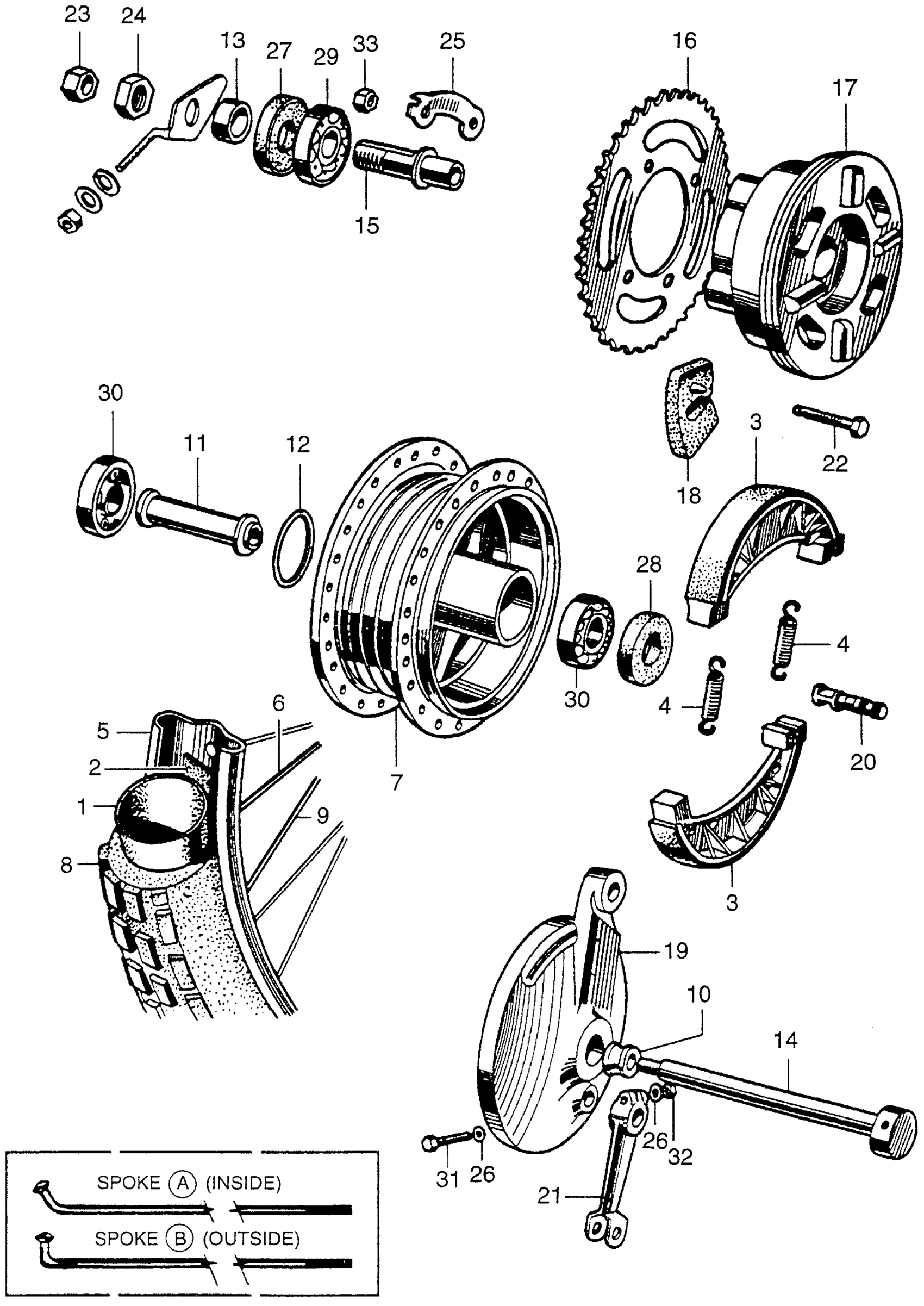

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 REAR WHEEL Diagram

#

Description
Price

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

1

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

2

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

2

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

2

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

3

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600 This part replaces 06450-GAG-003.

06450-178-932

$24.89

3

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600

06450-178-932

$24.89

3

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600 This part replaces 45120-001-000.

06450-178-932

$24.89

3

SHOE, BRAKE (N/A: USE P/N 451A0-001-670) | Use from Frame SN 0040601

45120-001-010

Unavailable

3

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600 This part replaces 45120-001-305.

06450-178-932

$24.89

4

SPRING, SHOE (NOT AVAILABLE)

45133-001-000

Unavailable

4

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

4

SPRING, BRAKE SHOE

45133-028-000

$2.03

5

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

5

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

6

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-020.

97251-42163-13

$3.77

6

SPOKE B (10X161.5) (OUTSIDE) This part replaces 42721-001-030.

97251-42163-13

$3.77

6

SPOKE B (10X161.5) (OUTSIDE)

97251-42163-13

$3.77

7

HUB, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 0100134

42601-001-030

Unavailable

7

HUB, RR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0100135 to 0189615

42601-001-040

Unavailable

7

HUB, RR. WHEEL This part replaces 42601-001-060.

42601-001-070

Unavailable

7

HUB, RR. WHEEL

42601-001-070

Unavailable

8

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE) This part replaces 42711-001-820.

42711-041-000

Unavailable

8

TIRE, RR. (2.25-17) (NITTO) (NOT AVAILABLE)

42711-041-000

Unavailable

9

SPOKE B, RR.

42638-001-020

$4.66

10

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-001-000

Unavailable

11

COLLAR, RR. AXLE DISTANCE | Use up to Frame SN 0040600

42620-001-010

Unavailable

11

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE) | Use from Frame SN 0040601

42620-001-020

Unavailable

12

O-RING (40.5X3) (NIPPON DUST KEEPER) This part replaces 42653-001-000.

42653-001-004

$2.39

12

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

13

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE) | Use up to Frame SN H042044

42304-001-010

Unavailable

13

COLLAR, RR. AXLE SLEEVE (NOT AVAILABLE) | Use from Frame SN H042045

42304-030-000

Unavailable

14

AXLE, RR. WHEEL This part replaces 42301-001-000.

42301-121-760

Unavailable

14

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-001-020

Unavailable

14

AXLE, RR. WHEEL This part replaces 42301-041-020.

42301-121-760

Unavailable

14

AXLE, RR. WHEEL This part replaces 42301-041-030.

42301-121-760

Unavailable

14

AXLE, RR. WHEEL

42301-121-760

Unavailable

15

SLEEVE, RR. WHEEL AXLE (NOT AVAILABLE)

42303-001-020

Unavailable

16

SPROCKET, FINAL DRIVEN (40T)

41201-GBJ-000

Unavailable

16

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-001-030.

41201-GBJ-000

Unavailable

16

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-000.

41201-GBJ-000

Unavailable

16

SPROCKET, FINAL DRIVEN (40T) This part replaces 41201-086-720.

41201-GBJ-000

Unavailable

17

FLANGE, FINAL DRIVE (NOT AVAILABLE) | Use up to Frame SN 0024000

42610-001-040

Unavailable

17

FLANGE, FINAL DRIVE (NOT AVAILABLE) | Use from Frame SN 0024001 to H042044

42610-001-050

Unavailable

17

FLANGE, FINAL DRIVE (NOT AVAILABLE) | Use from Frame SN H042045

42610-030-000

Unavailable

18

DAMPER, RR. WHEEL (NOT AVAILABLE) | Use up to Frame SN 0024000

41241-001-030

Unavailable

18

DAMPER, RR. WHEEL | Use from Frame SN 0024001 This part replaces 41241-001-040.

41241-001-050

$7.31

18

DAMPER, RR. WHEEL | Use from Frame SN 0024001

41241-001-050

$7.31

19

PANEL, RR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 0017088

43100-001-010

Unavailable

19

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0017089 to 0040600

43100-001-020

Unavailable

19

PANEL, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0040601

43100-001-050

Unavailable

20

CAM, RR. BRAKE (NOT AVAILABLE)

43141-001-000

Unavailable

21

ARM, RR. BRAKE (NOT AVAILABLE)

43410-001-010

Unavailable

22

BOLT, SPROCKET This part replaces 90128-001-020.

90128-001-030

Unavailable

22

BOLT, SPROCKET

90128-001-030

Unavailable

23

NUT, AXLE (NOT AVAILABLE)

90305-001-000

Unavailable

23

NUT, RR. AXLE (NOT AVAILABLE)

90308-001-000

Unavailable

24

NUT, RR. AXLE SLEEVE

90307-001-000

Unavailable

25

WASHER, TOOTHED

90552-001-000

Unavailable

26

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

27

OIL SEAL (23X35X7) (NOT AVAILABLE) | Use up to Frame SN H042044

91253-001-000

Unavailable

27

OIL SEAL (23X40X6) (NOT AVAILABLE) | Use from Frame SN H042045

91253-030-000

Unavailable

28

OIL SEAL (18X37X7) (NOT AVAILABLE)

91254-001-000

Unavailable

29

BEARING, RADIAL BALL (6003Z) (NOT AVAILABLE)

96120-60030

$13.34

30

BEARING, RADIAL BALL (6301U) This part replaces 96100-63010.

96140-63010-10

$14.84

30

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

30

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

31

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

31

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

33

NUT, HEX. (8MM) This part replaces 94002-08000.

94031-08000

$1.49

33

NUT, HEX. (8MM)

94031-08000

$1.49
