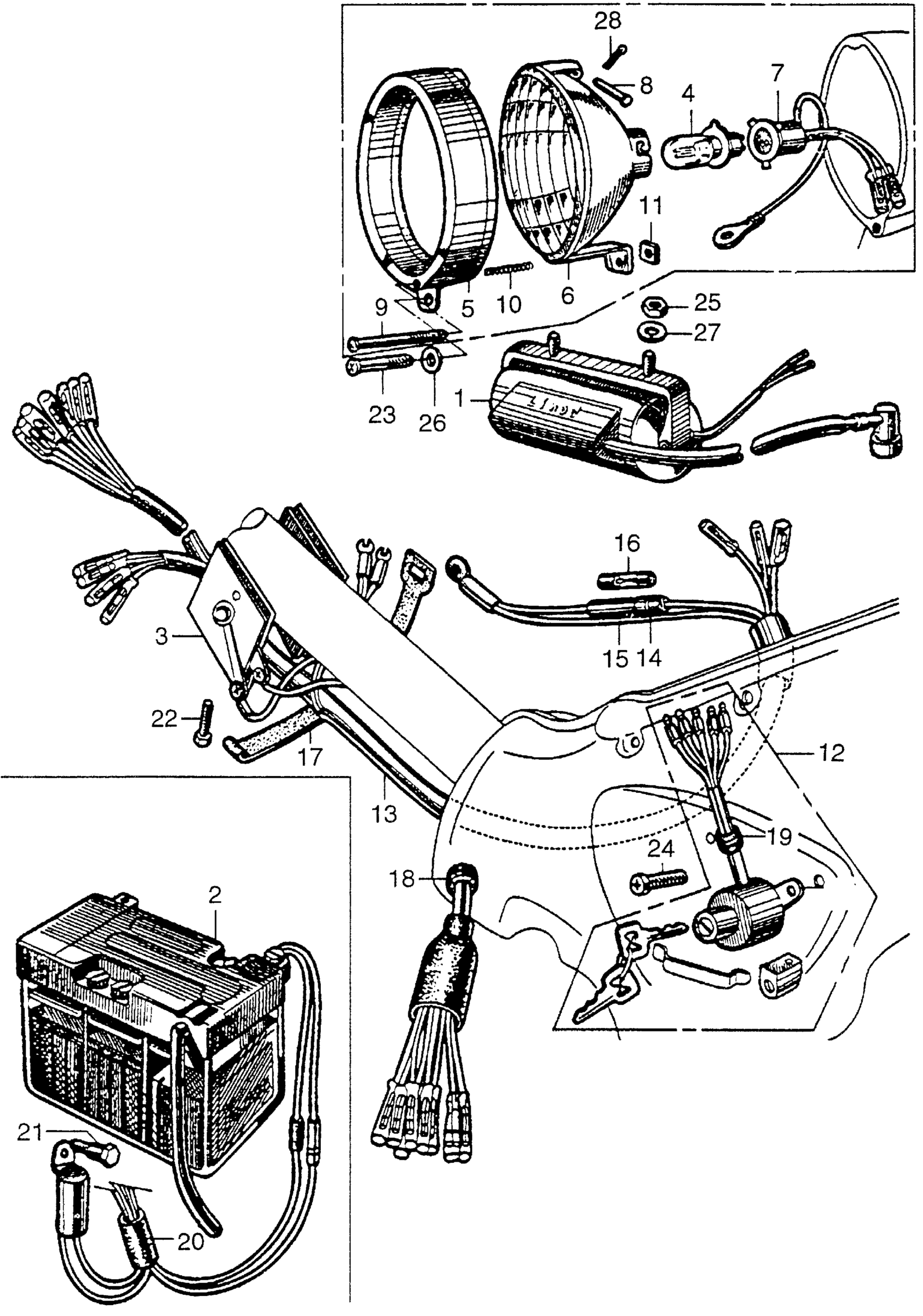

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 HEADLIGHT + BATTERY + WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-001-010.

30500-041-156

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-001-014.

30500-041-156

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-041-000.

30500-041-156

Unavailable

1

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-041-156

Unavailable

2

BATTERY ASSY. (NOT AVAILABLE) This part replaces 31500-001-030.

31500-035-000

Unavailable

2

BATTERY ASSY. (NOT AVAILABLE) This part replaces 31500-011-000.

31500-035-000

Unavailable

2

BATTERY ASSY. (NOT AVAILABLE)

31500-035-000

Unavailable

2

BATTERY (6N2) This part replaces 31500-035-672.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-505.

31500-147-505AH

Unavailable

2

BATTERY (6N2) This part replaces 31500-147-672.

31500-147-505AH

Unavailable

3

RECTIFIER, SELENIUM (NOT AVAILABLE)

31700-001-305

Unavailable

3

RECTIFIER, SELENIUM (NOT AVAILABLE) This part replaces 31700-001-602.

31700-001-305

Unavailable

3

RECTIFIER, SELENIUM (NOT AVAILABLE) This part replaces 31700-063-008.

31700-001-305

Unavailable

4

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$19.11

4

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-671.

34901-001-025

$19.11

5

RIM, HEADLIGHT (NOT AVAILABLE)

33101-005-000

Unavailable

6

LENS, HEADLIGHT

33121-005-000

Unavailable

7

SOCKET, HEADLIGHT (NOT AVAILABLE)

33130-022-000

Unavailable

8

PIN, HOLDER (NOT AVAILABLE)

33125-001-013

Unavailable

9

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33102-001-003

Unavailable

10

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) This part replaces 33107-001-003.

33107-001-020

Unavailable

10

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-001-020

Unavailable

11

NUT, HEADLIGHT BEAM ADJ.

33117-001-003

Unavailable

12

SWITCH, HANDLE LOCK (NOT AVAILABLE)

35010-001-010

Unavailable

13

WIRE HARNESS (NOT AVAILABLE) | Use up to Frame SN 0513739

32100-001-030

Unavailable

13

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN C013084 This part replaces 32100-001-060.

32100-001-030

Unavailable

13

WIRE HARNESS (NOT AVAILABLE) | Use from Frame SN 0513740 to C013083

32100-005-040

Unavailable

14

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

15

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

16

FUSE A (7A) This part replaces 38201-001-000.

98200-10700

$1.49

16

FUSE A (10A) | Use up to Frame SN 0011043 This part replaces 38201-030-000.

98200-11000

$1.80

16

FUSE A (7A)

98200-10700

$1.49

16

FUSE A (10A)

98200-11000

$1.80

17

BAND A3, WIRE This part replaces 32161-001-000.

95014-61300

$1.97

17

BAND A3, CABLE

95014-61300

$1.97

18

GROMMET, WIRE HARNESS

32983-011-000

$3.31

19

GROMMET, SWITCH CABLE

32987-001-000

Unavailable

20

TUBE, CONNECTOR RUBBER (NOT AVAILABLE)

32171-001-000

Unavailable

21

BOLT, TURN SIGNAL RELAY MOUNT

90157-001-000

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

SCREW, PAN (5X12)

93500-05012-0B

$1.49

23

SCREW, PAN (5X12) This part replaces 93500-05012-02.

93500-05012-0B

$1.49

24

SCREW, PAN (6X8) This part replaces 90053-371-980.

93500-06008-0H

$1.49

24

SCREW, PAN (6X8)

93500-06008

$1.49

24

SCREW, PAN (6X8)

93500-06008-0A

$1.49

24

SCREW, PAN (6X8)

93500-06008-0H

$1.49

24

SCREW, PAN (6X8) This part replaces 93500-06008-1H.

93500-06008-0H

$1.49

25

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

26

WASHER, PLAIN (5MM)

94101-05000

$1.49

27

WASHER, SPRING (6MM)

94111-06000

$1.49

28

PIN, COTTER (1.2MM) This part replaces 94201-12100.

94201-12200

Unavailable

28

PIN, COTTER (1.2MM) This part replaces 94201-12150.

94201-12200

Unavailable

28

PIN, COTTER (1.2MM)

94201-12200

Unavailable
