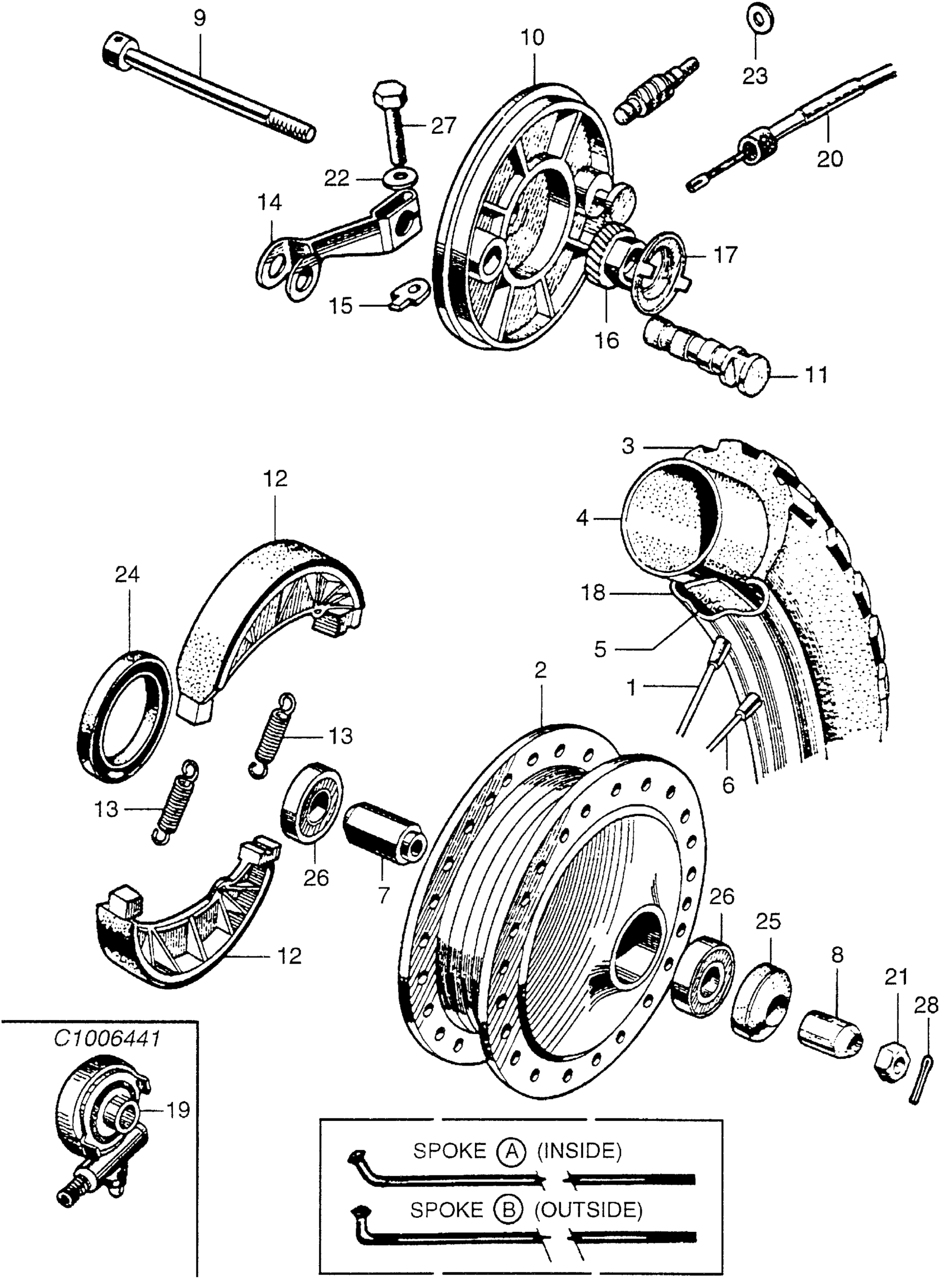

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE A, FR.

44618-001-020

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE) | Use up to Frame SN C029583

44600-001-060

Unavailable

2

HUB, FR. WHEEL | Use from Frame SN C029584

44601-011-000

Unavailable

3

TIRE, FR. (2.25-17) (NITTO) (NOT AVAILABLE)

44711-001-680

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 0Y400-03010.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 08400-03010.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-041-003.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE)

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-052-009.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-610.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 42712-148-672M2.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-030-000.

42712-041-154

Unavailable

4

TUBE, TIRE (2.50-17) (INOUE) This part replaces 44712-169-005.

42712-041-154

Unavailable

5

FLAP, TIRE (2.15-17) (BS)

42713-MG7-003

$7.75

5

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-001-000.

42713-MG7-003

$7.75

5

FLAP, TIRE (2.15-17) (BS) This part replaces 44713-030-000.

42713-MG7-003

$7.75

6

SPOKE A (12X162)

97351-21164-10

$3.21

6

SPOKE A (12X162) This part replaces 97351-21164-12.

97351-21164-10

$3.21

7

COLLAR, FR. DISTANCE AXLE

44620-001-010

Unavailable

8

COLLAR, FR. SIDE WHEEL (NOT AVAILABLE)

44311-011-000

Unavailable

9

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-001-640

Unavailable

10

PANEL, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN 0040600

45100-001-040

Unavailable

10

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0040601 to C029583

45100-001-060

Unavailable

10

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN C029584

45100-001-070

Unavailable

11

CAM, BRAKE (NOT AVAILABLE) | Use up to Frame SN 0040600

45131-001-010

Unavailable

11

CAM, BRAKE | Use from Frame SN 0040601 to C029583

45131-001-020

Unavailable

12

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600 This part replaces 06450-GAG-003.

06450-178-932

$24.89

12

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600

06450-178-932

$24.89

12

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600 This part replaces 45120-001-000.

06450-178-932

$24.89

12

SHOE, BRAKE (N/A: USE P/N 451A0-001-670) | Use from Frame SN 0040601

45120-001-010

Unavailable

12

SHOE SET, BRAKE (JB) | Use up to Frame SN 0040600 This part replaces 45120-001-305.

06450-178-932

$24.89

13

SPRING, SHOE (NOT AVAILABLE) | Use up to Frame SN 0040600

45133-001-000

Unavailable

13

SPRING, BRAKE SHOE This part replaces 45133-001-010.

45133-028-000

$2.03

13

SPRING, BRAKE SHOE

45133-028-000

$2.03

14

ARM, FR. BRAKE (NOT AVAILABLE) | Use up to Frame SN C029583

45410-001-020

Unavailable

14

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN C029584

45410-001-030

Unavailable

15

NUT, FR. BRAKE ARM SETTING | Use from Frame SN C029584

45436-001-000

$1.80

16

GEAR, SPEEDOMETER | Use from Frame SN C029584

44804-096-000

Unavailable

16

GEAR, SPEEDOMETER | Use from Frame SN C029584 This part replaces 44806-001-000.

44804-096-000

Unavailable

17

GEAR, SPEEDOMETER (NOT AVAILABLE)

44806-011-010

Unavailable

17

GEAR, SPEEDOMETER (NOT AVAILABLE) This part replaces 44808-011-000.

44806-011-010

Unavailable

18

RIM, WHEEL This part replaces 42701-001-053.

42701-001-073

Unavailable

18

RIM, WHEEL This part replaces 42701-001-063.

42701-001-073

Unavailable

19

GEAR BOX, SPEEDOMETER (NOT AVAILABLE) | Use up to Frame SN 0040600

44800-001-010

Unavailable

19

GEAR BOX, SPEEDOMETER | Use from Frame SN 0040601 to 0508544

44800-001-020

Unavailable

19

GEAR BOX, SPEEDOMETER | Use from Frame SN 0508545 to C029583

44800-001-040

Unavailable

20

CABLE, SPEEDOMETER (NOT AVAILABLE) | Use up to Frame SN 0508544

44830-001-000

Unavailable

20

CABLE, SPEEDOMETER | Use from Frame SN 0508545 This part replaces 44830-001-030.

44830-074-000

Unavailable

20

CABLE, SPEEDOMETER | Use from Frame SN 0508545

44830-074-000

Unavailable

21

NUT, CASTLE (10MM) (NOT AVAILABLE)

94011-10020

Unavailable

22

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

23

WASHER, SPEEDOMETER PINION

90539-011-000

Unavailable

24

OIL SEAL (40X55X7) (NOT AVAILABLE) | Use up to Frame SN 0015836

91251-001-000

Unavailable

24

OIL SEAL (42X55X7) (NOT AVAILABLE) | Use from Frame SN 0015837 to 0071415

91251-001-010

Unavailable

24

OIL SEAL (45X58X7) | Use from Frame SN 0071416 This part replaces 91251-001-020.

91251-001-023

Unavailable

24

OIL SEAL (45X58X7) | Use from Frame SN 0071416

91251-001-023

Unavailable

25

OIL SEAL (19X23X7) (NOT AVAILABLE) | Use from Frame SN C029584 This part replaces 91252-001-000.

91252-001-305

Unavailable

25

OIL SEAL (19X35X7) (NOT AVAILABLE) | Use from Frame SN 0071416 to 0040600

91252-001-010

Unavailable

25

OIL SEAL (21X35X5.5) | Use from Frame SN 0040601 to C029583 This part replaces 91252-001-020.

91252-001-023

$6.14

25

OIL SEAL (21X35X5.5) | Use from Frame SN 0040601 to C029583

91252-001-023

$6.14

25

OIL SEAL (19X23X7) (NOT AVAILABLE) | Use up to Frame SN 0071415

91252-001-305

Unavailable

26

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

27

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

27

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

28

PIN, COTTER (2.0X22)

94201-20220

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

28

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

28

PIN, COTTER (2.0X35)

94201-20350

$1.49
