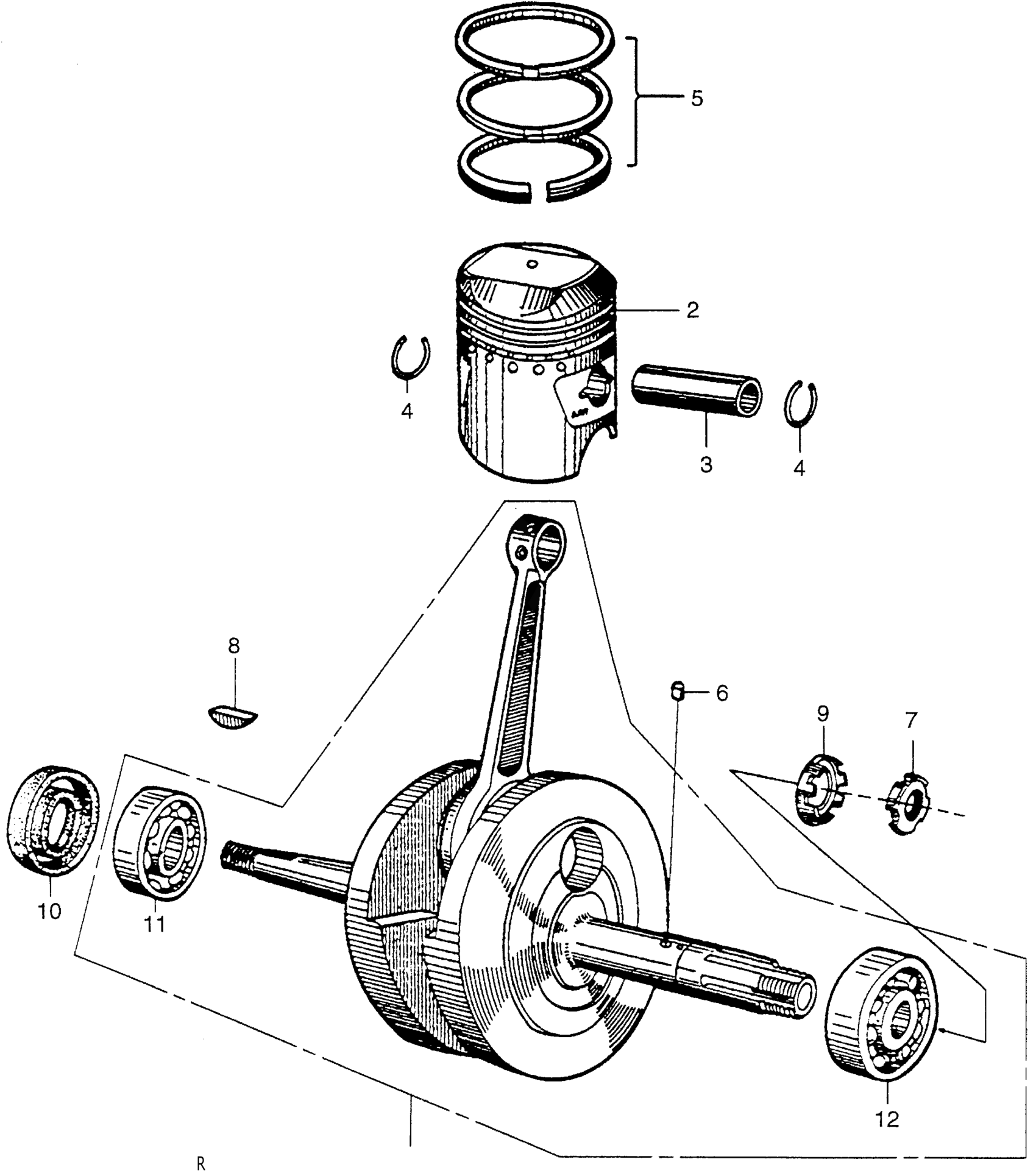

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use from Engine SN 0155332 to 0050530

13000-001-060

Unavailable

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use from Engine SN 0050532

13000-001-120

Unavailable

1

CRANKSHAFT ASSY. (NOT AVAILABLE) | Use up to Engine SN 0155332

13000-001-314

Unavailable

2

PISTON (STD)

13101-001-020

Unavailable

2

PISTON (STD) | Use from Engine SN 0270557

13101-001-040

Unavailable

2

PISTON (OS 0.25)

13102-001-020

Unavailable

2

PISTON (OS 0.25) | Use from Engine SN 0270557

13102-001-040

Unavailable

2

PISTON (OS 0.50) (NOT AVAILABLE)

13103-001-020

Unavailable

2

PISTON (OS 0.50) | Use from Engine SN 0270557

13103-001-040

Unavailable

2

PISTON (0.75) (NOT AVAILABLE)

13104-001-020

Unavailable

2

PISTON (0.75) (NOT AVAILABLE) | Use from Engine SN 0270557

13104-001-040

Unavailable

2

PISTON (1.00)

13105-001-020

Unavailable

2

PISTON (1.00) | Use from Engine SN 0270557

13105-001-040

Unavailable

3

PIN, PISTON (NOT AVAILABLE)

13111-001-010

Unavailable

4

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

4

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

5

RING SET, PISTON (STD) (NOT AVAILABLE)

13010-001-010

Unavailable

5

RING SET, PISTON (OS 0.25)

13020-001-010

Unavailable

5

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

13030-001-010

Unavailable

5

RING SET, PISTON (0.75)

13040-001-010

Unavailable

5

RING SET, PISTON (1.00) (NOT AVAILABLE)

13050-001-010

$46.69

6

PIN, KNOCK GEAR (NOT AVAILABLE)

90719-001-000

Unavailable

6

PIN, KNOCK GEAR (NOT AVAILABLE) | Use from Engine SN A000001

90719-001-020

Unavailable

7

NUT, LOCK (14MM)

90231-KY4-900

$4.22

7

NUT, LOCK (14MM) This part replaces 90231-001-000.

90231-KY4-900

$4.22

7

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

8

KEY, WOODRUFF (3X5) (NOT AVAILABLE)

90741-001-000

$8.51

9

WASHER, LOCK (14MM)

90431-001-000

Unavailable

10

OIL SEAL (17X34X7)

91204-001-000

Unavailable

11

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

11

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70

12

BEARING, RADIAL BALL (6303) This part replaces 96100-63030.

96100-63030-00

$14.95

12

BEARING, RADIAL BALL (6303)

96100-63030-00

$14.95
