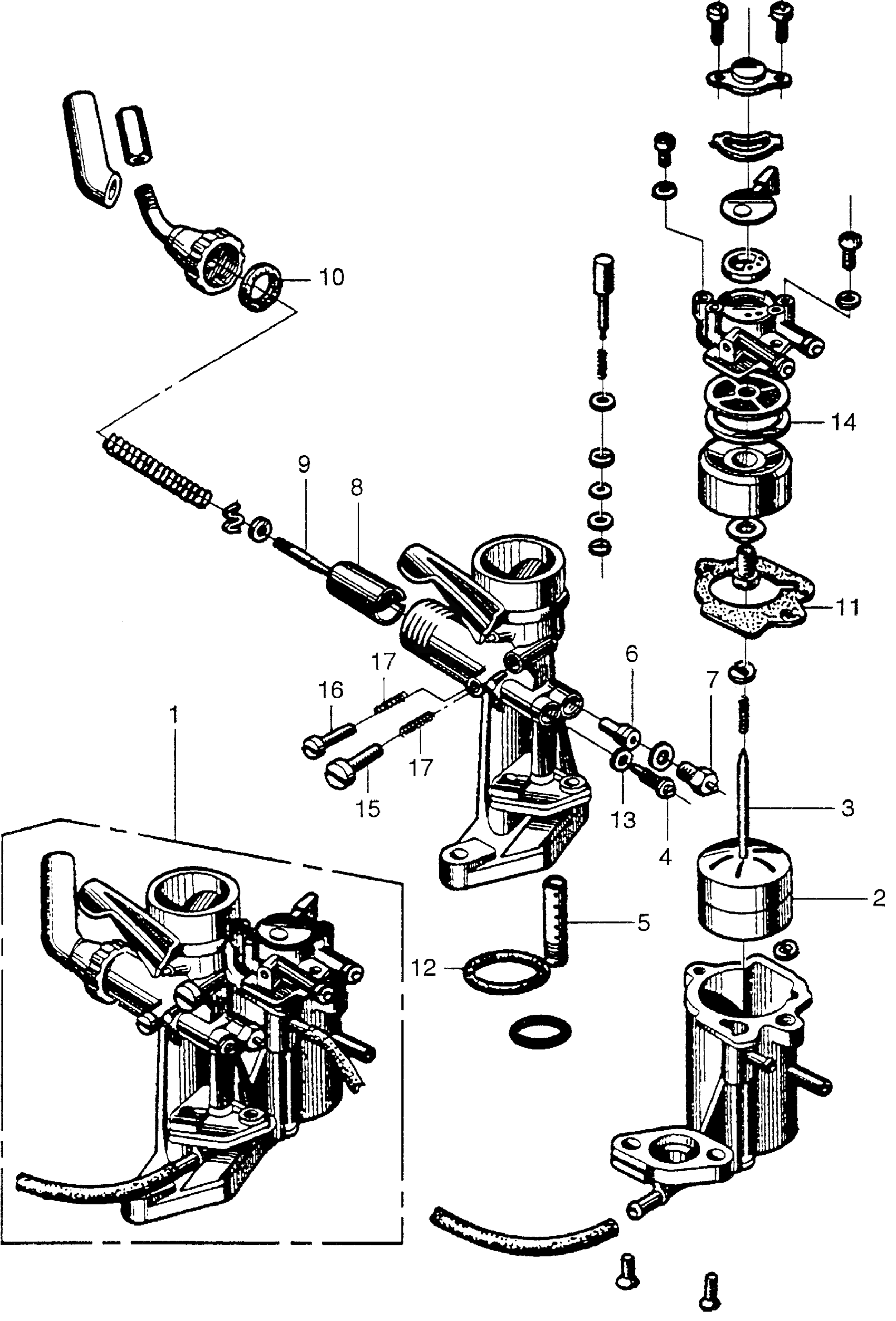

Honda CA100A MOTORCYCLE, JPN, VIN# CA100-100001 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE) This part replaces 16100-001-020.

16100-001-030

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-001-030

Unavailable

2

FLOAT (NOT AVAILABLE)

16122-001-004

Unavailable

3

VALVE, FLOAT (NOT AVAILABLE)

16125-001-004

Unavailable

4

JET, SLOW (#35) (NOT AVAILABLE)

99128-03504

Unavailable

4

JET, SLOW (#38) (NOT AVAILABLE)

99128-03804

Unavailable

5

JET, MAIN (#60) (NOT AVAILABLE)

99103-06004

Unavailable

5

JET, MAIN (#78) (NOT AVAILABLE)

99103-07804

Unavailable

5

JET, MAIN (#80) (NOT AVAILABLE)

99103-08004

Unavailable

5

JET, MAIN (#82) (NOT AVAILABLE)

99103-08204

Unavailable

5

JET, MAIN (#85) (NOT AVAILABLE)

99103-08504

Unavailable

5

JET, MAIN (#88) (NOT AVAILABLE)

99103-08804

Unavailable

5

JET, MAIN (#90) (NOT AVAILABLE)

99103-09004

Unavailable

5

JET, MAIN (#92) (NOT AVAILABLE)

99103-09204

Unavailable

5

JET, MAIN (#95) (NOT AVAILABLE)

99103-09504

Unavailable

5

JET, MAIN (#98) (NOT AVAILABLE)

99103-09804

Unavailable

5

JET, MAIN (#100) (NOT AVAILABLE)

99103-10004

Unavailable

6

NEEDLE, JET (NOT AVAILABLE)

16133-001-004

Unavailable

7

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-001-004

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-040-680

Unavailable

8

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16141-001-004.

16022-040-680

Unavailable

9

NEEDLE, JET (NOT AVAILABLE)

16151-001-004

Unavailable

10

TOP GASKET (NOT AVAILABLE)

16171-001-004

Unavailable

11

FLOAT, GASKET (NOT AVAILABLE)

16172-001-004

Unavailable

12

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

12

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

12

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

12

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

12

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

13

O-RING (4.5MM)

16175-001-004

Unavailable

14

O-RING (23X2.4)

16176-001-004

Unavailable

15

SCREW, AIR (NOT AVAILABLE)

16162-001-004

$3.66

16

SCREW, THROTTLE

16163-001-004

Unavailable

17

SPRING, AIR SCREW (NOT AVAILABLE)

16181-001-004

Unavailable
