1990 Yamaha BIG Wheel (BW80A) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

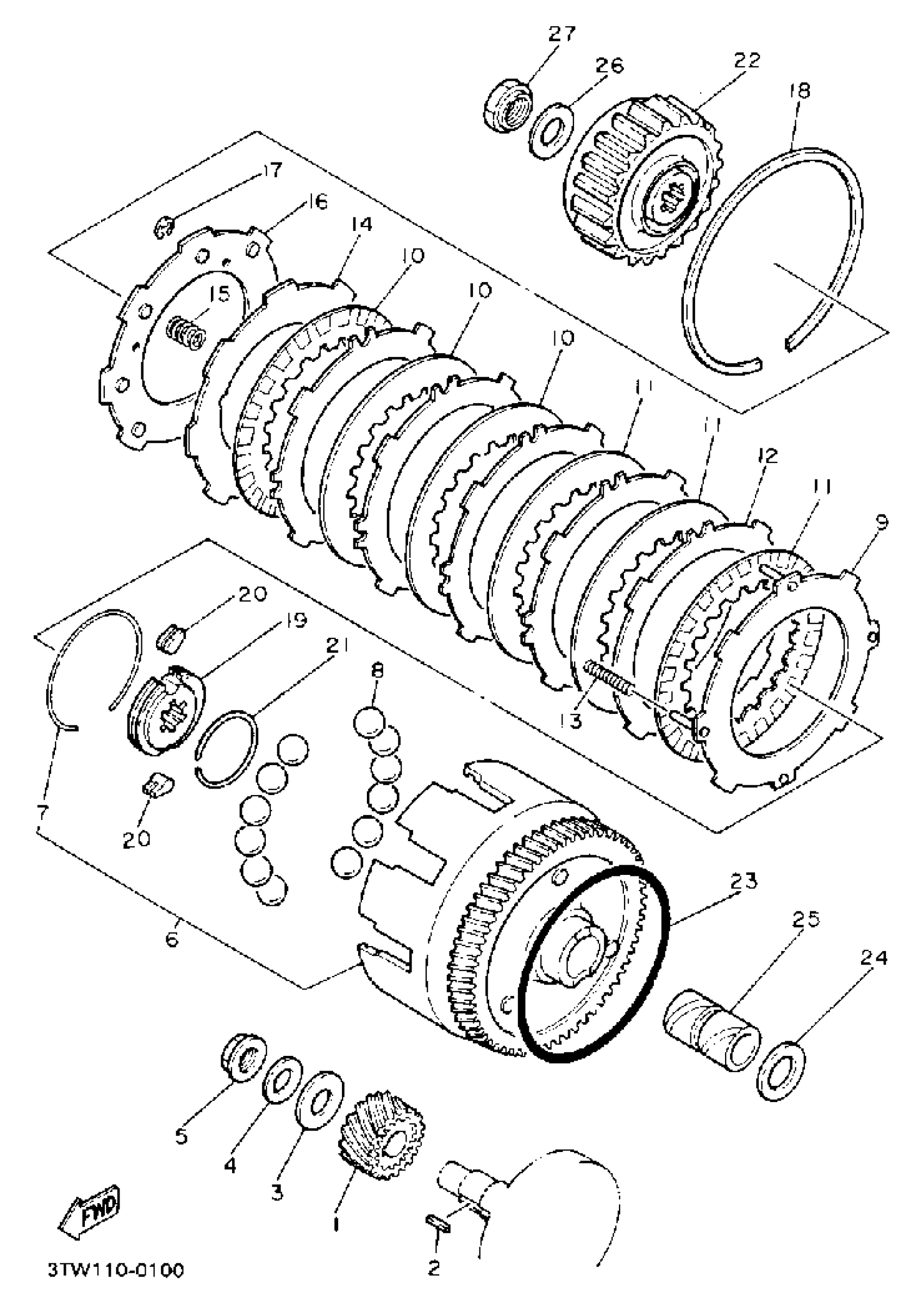

1990 Yamaha BIG Wheel (BW80A) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRIVE GEAR ASSY

56H-16110-00-00

1
Out of stock

2

KEY, STRAIGHT(56H)

90282-04064-00

1
Out of stock

3

WASHER(21W)

90209-12280-00

—
Out of stock

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

5

NUT(1EE)

90179-12659-00

1

$5.37

In stock

6

PRIMARY DRIVEN GEAR COMP.

3E5-16150-02-00

—
Out of stock

7

CIRCLIP (3E1)

90468-16090-00

1
Out of stock

8

BALL (5/8INCH) (527 CKD)

93505-08030-00

1

$6.68

In stock

9

PLATE, THRUST WEIGHT

527-16520-10-00

—
Out of stock

10

PLATE, FRICTION

3E5-16521-00-00

1

$14.46

In stock

11

PLATE, FRICTION

3E5-16521-00-00

1

$14.46

In stock

12

PLATE, CLUTCH 1

517-16524-10-00

—

$34.94

In stock

12

PLATE, CLUTCH 2

517-16524-20-00

1

$35.03

In stock

12

PLATE, CLUTCH 3

517-16524-30-00

—

$32.46

In stock

13

SPRING, COMPRESSION (4G2)

90501-10602-00

—
Out of stock

14

PLATE, PRESSURE 1

517-16550-10-00

—
Out of stock

15

SPRING COMPRESSION116165330000

90501-12088-00

—
Out of stock

16

PLATE, PRESSURE 2

517-16561-01-00

—
Out of stock

17

CIRCLIP(6L5)

99080-03600-00

1

$3.26

In stock

18

CIRCLIP (22F)

93451-08094-00

—

$7.66

In stock

19

BOSS, ONEWAY

517-16180-00-00

—

$21.11

In stock

20

PAWL, ONE WAY

384-15635-00-00

—

$4.95

In stock

21

SPRING, PAWL

2T4-15637-01-00

—

$3.25

In stock

22

BOSS, CLUTCH

527-16571-01-00

—
Out of stock

23

O-RING (353)

93210-98202-00

—
Out of stock

24

PLATE, THRUST

122-16164-00-00

—

$7.08

In stock

25

SPACER (517)

90560-17146-00

—

$21.02

In stock

26

WASHER (517 CLUTCH)

90208-16019-00

—
Out of stock

27

NUT (517 CLUTCH)

90179-16190-00

—
Out of stock
