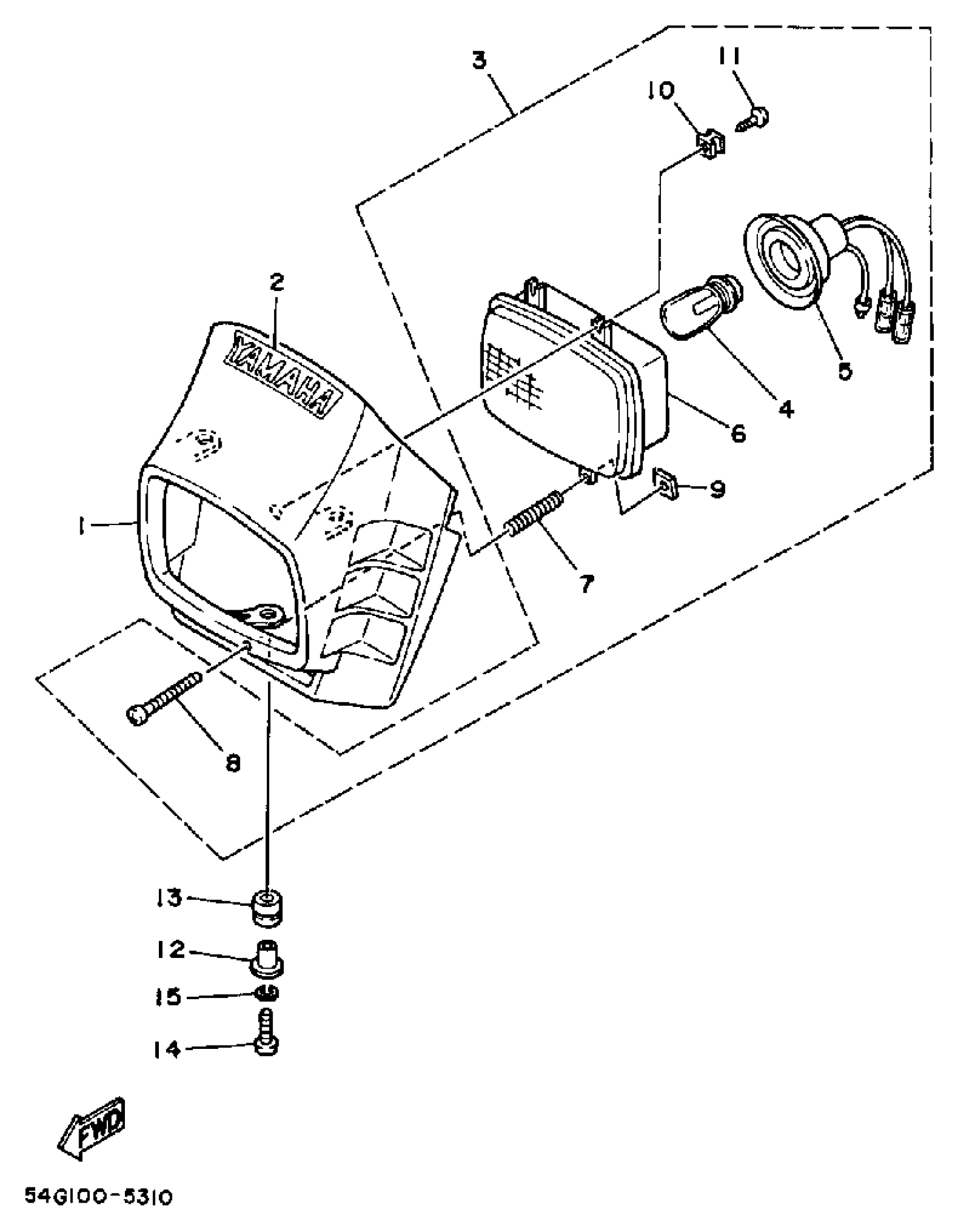

Find the part on the Headlight diagram for your 1988 Yamaha Big Wheel (BW350U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Big Wheel (BW350U) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, HEADLIGHT

54G-84311-00-00

1
Out of stock

2

EMBLEM, YAMAHA

99244-00100-00

—
Out of stock

3

HEADLIGHT UNIT ASSEMBLY

(54G-84310-00-00)

1
Out of stock

4

BULB,H.L.12V45/45W

21V-84314-00-XX

1
Out of stock

5

. SOCKET

54G-84312-00-00

1
Out of stock

6

. LENS ASSEMBLY

21V-84320-00-00

1
Out of stock

7

SPRING,SCREW

3AA-84332-00-00

1
Out of stock

8

SCREW, ADJUSTING

5BF-8433E-00-00

1
Out of stock

9

. NUT, ADJUSTING

21V-84334-00-00

1
Out of stock

10

. NUT, BODY FITTING

21V-84316-00-00

1
Out of stock

11

SCREW, PAN TAP.2 SLIT

97707-40614-00

1
Out of stock

12

COLLAR

90387-06166-00

1
Out of stock

13

GROMMET

90480-14412-00

1
Out of stock

14

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1
Out of stock
