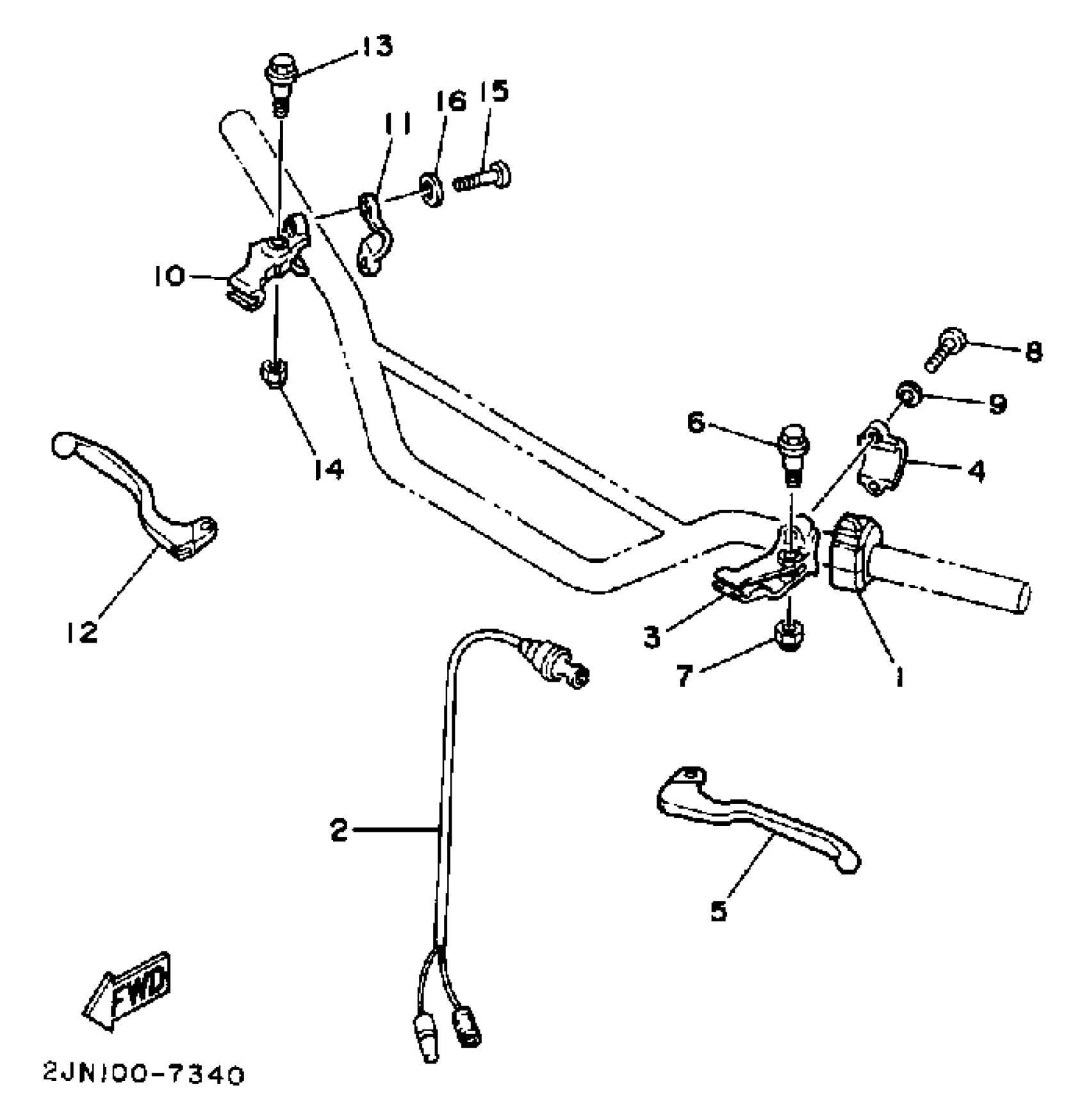

Yamaha BW350U (BIG WHEEL) 1988 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

2JN-83973-08-00

Unavailable

2

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$58.58

3

HOLDER SET, LEVER 1

99999-03034-00

$84.76

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

LEVER 1

23X-83912-02-00

$20.03

6

BOLT(1FG)

90109-06798-00

$5.84

7

NUT, SELF-LOCKING

95617-06100-00

$2.17

8

SCREW, PAN HEAD

98517-05020-00

$1.26

9

WASHER(3SX)

92907-05100-00

$5.76

10

H0LDER, LEVER 2

38V-82921-00-00

$35.10

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

LEVER R

23X-83922-01-00

$20.29

13

BOLT(1FG)

90109-06798-00

$5.84

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

SCREW, PAN HEAD

98517-05020-00

$1.26

16

WASHER(3SX)

92907-05100-00

$5.76
