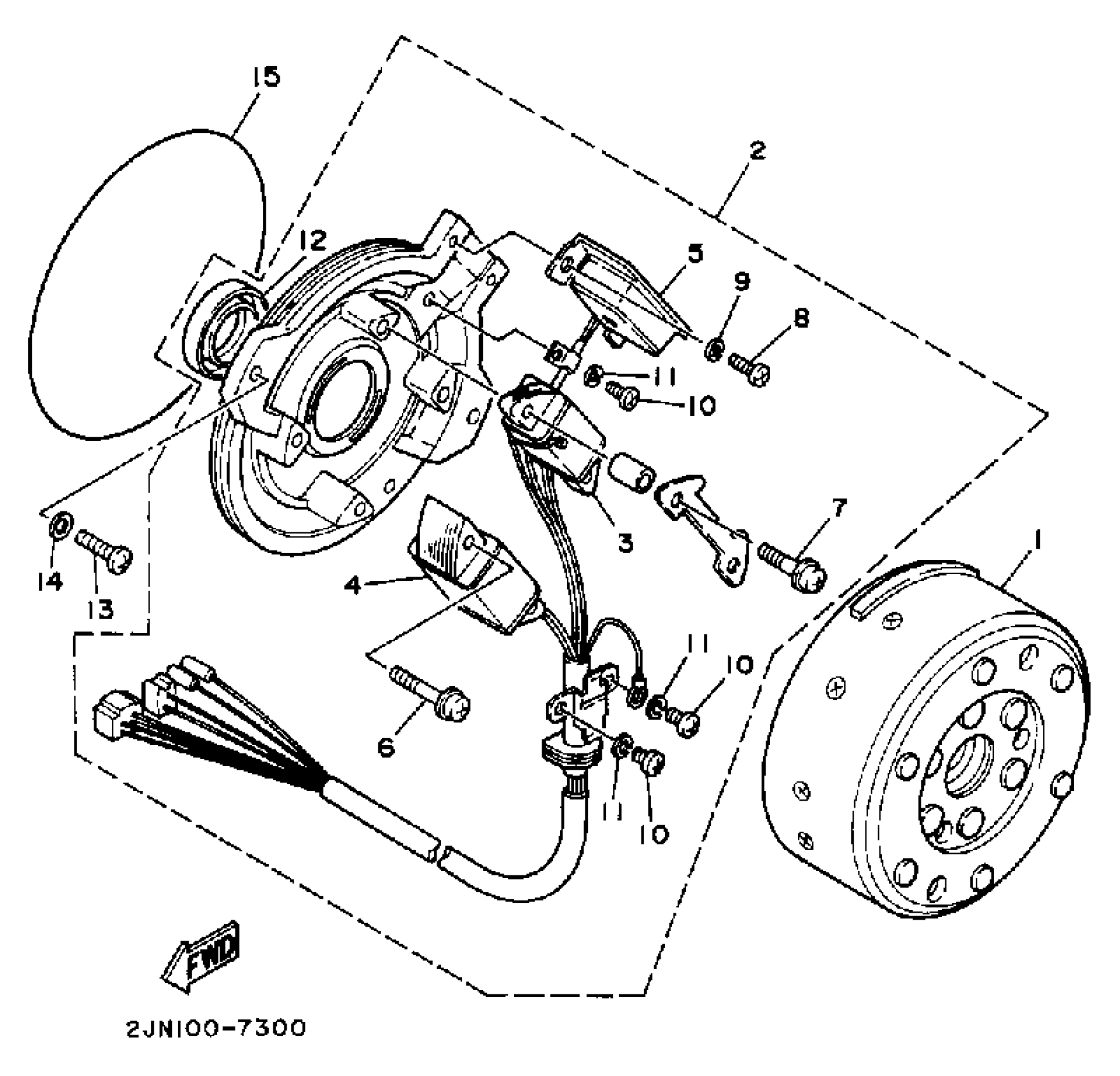

Yamaha BW350U (BIG WHEEL) 1988 GENERATOR Diagram

#

Description
Price

1

INACTIVE PART NUMBER

2JN-85550-M0-00

Unavailable

2

BASE ASSEMBLY

(2JN-85560-M0-00)

Unavailable

3

. COIL, CHARGE

2JN-85520-M0-00

Unavailable

4

. COIL, LIGHTING 1

2JN-81313-M0-00

Unavailable

5

. COIL, PULSER

2JN-85595-M0-00

Unavailable

6

SCREW, WITH WASHER(81E)

90159-05129-00

$1.47

7

SCREW, WITH WASHER

90159-05145-00

Unavailable

8

SCREW, PAN HEAD (E56)

98580-04010-00

$5.75

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

10

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

12

OIL SEAL (3Y1)

93102-25226-00

$11.50

13

SCREW PAN HEAD

98580-06020-00

$4.89

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

O-RING (3Y2)

93211-19413-00

$13.27
