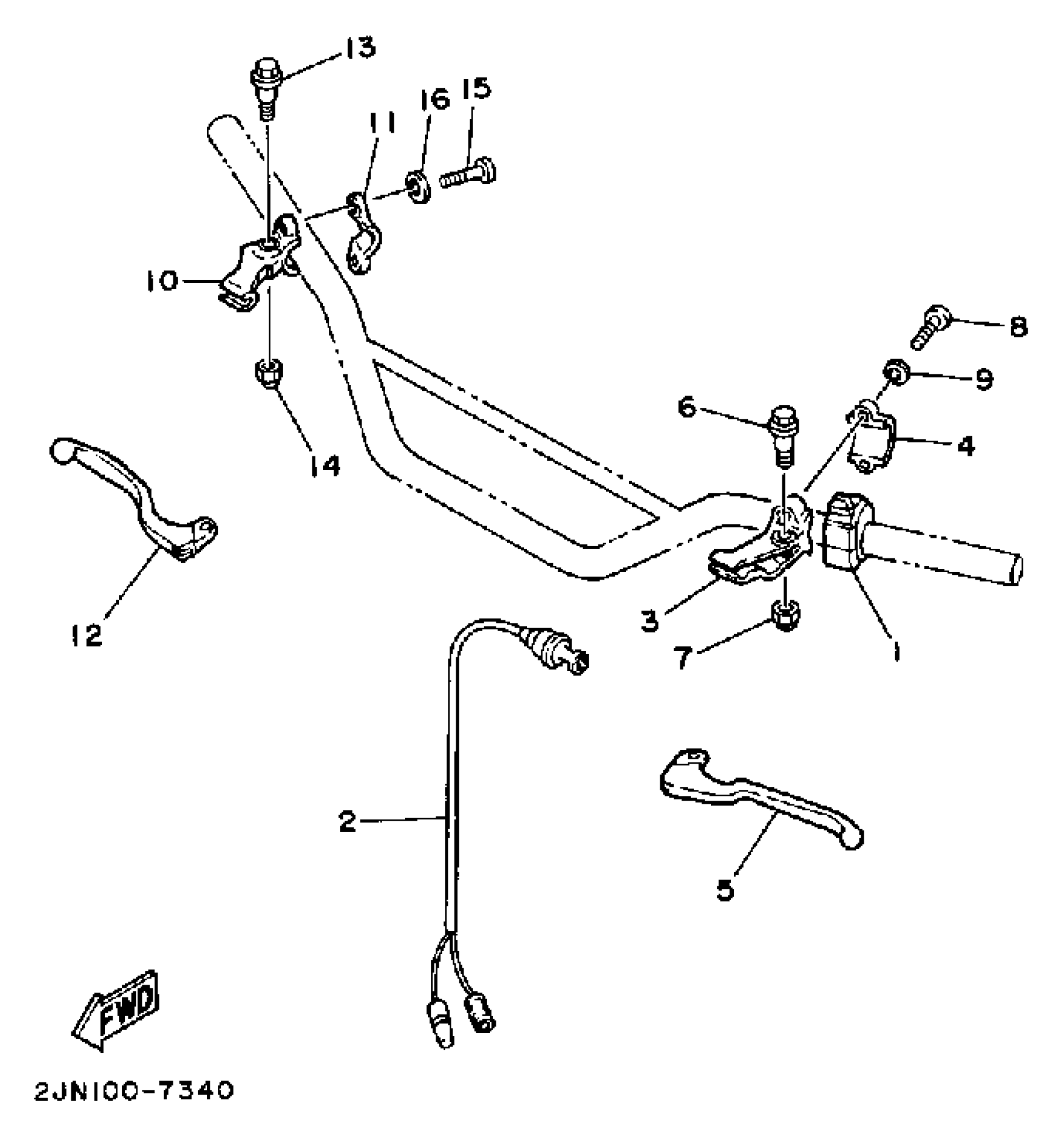

Yamaha BW350T (BIG WHEEL) 1987 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

2JN-83973-08-00

Unavailable

2

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$59.81

3

HOLDER SET, LEVER 1

99999-03034-00

$84.76

4

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

5

LEVER 1

23X-83912-02-00

$20.45

6

BOLT(1FG)

90109-06798-00

$5.97

7

BOLT(1FG)

90109-06798-00

$5.97

8

SCREW, PAN HEAD

98517-05020-00

$1.49

9

WASHER(3SX)

92907-05100-00

$5.88

10

H0LDER, LEVER 2

38V-82921-00-00

$35.84

11

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

12

LEVER R

23X-83922-01-00

$20.72

13

BOLT(1FG)

90109-06798-00

$5.97

14

NUT, SELF-LOCKING

95617-06100-00

$2.29

15

SCREW, PAN HEAD

98517-05020-00

$1.49

16

WASHER(3SX)

92907-05100-00

$5.88
