1970 Kawasaki Bushwhacker Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1970 Kawasaki Bushwhacker, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

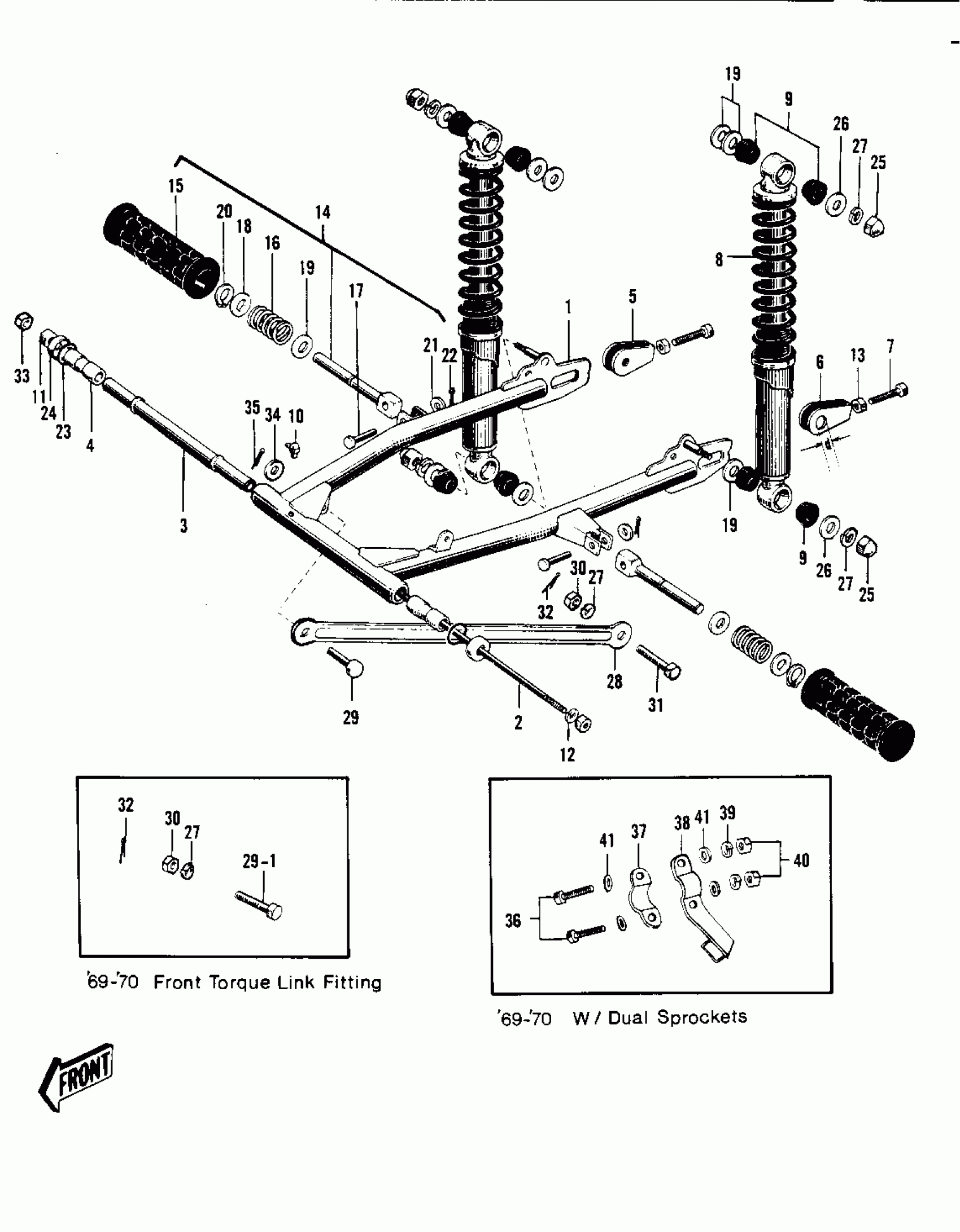

1970 Kawasaki Bushwhacker Swing Arm/shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ARM SWING

33001-015

1
Out of stock

1

ARM SWINGING

33001-010

1
Out of stock

2

SHAFT SWING ARM PIVOT

33032-022

1
Out of stock

3

COLLAR SWING ARM

33036-001

1
Out of stock

4

SLEEVE SWING ARM

33034-001

1
Out of stock

5

ADJUSTER CHAIN R.H

33040-024

1
Out of stock

5

ADJUSTER CHAIN R.H

33040-030

1
Out of stock

6

ADJUSTER CHAIN L.H

33040-031

1
Out of stock

6

ADJUSTER CHAIN L.H

33040-031

1
Out of stock

7

BOLT CHAIN ADJUST

92001-009

1
Out of stock

7

BOLT,8X50

92001-1399

1
Out of stock

8

SHOCK ABSBR RR

45014-051

1
Out of stock

9

BUSH RUBB RR SHCK ABS

45017-002

1
Out of stock

10

GREASE NIPPLE

92005-002

1
Out of stock

11

NUT,12MM

314G1200A

1
Out of stock

11

NUT-HEX-FINE

314B1200

1
Out of stock

12

WASHER-SPRING,12MM

461F1200

1
Out of stock

13

NUT 6MM

312B0600

1
Out of stock

13

NUT 8MM

312B0800

1
Out of stock

14

FOOTREST ASSY REAR

34027-004

1
Out of stock

15

RUBBER REAR FOOTREST

92076-007

1
Out of stock

16

1

$1.42

In stock

17

PIN FOOTREST FIT

92043-047

1
Out of stock

18

WASHER FOLDING PEG

92022-050

1
Out of stock

19

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock

20

CIRCLIP-TYPE-C,14MM

480J1400

1
Out of stock

21

WASHER PLAIN 8MM

410B0800

1
Out of stock

22

PIN COTTER 2.5X16

550D2516

1
Out of stock

23

DUST SHIELD PIVOT SFT

92093-004

1
Out of stock

24

HOLDER DUST SHIELD

33035-001

1
Out of stock

25

NUT,CAP,10MM

92020-003

1
Out of stock

26

WASHER,10.5X26X2.3

92022-044

1
Out of stock

27

WASHER SPRING 10MM

461F1000

1
Out of stock

28

TORQUE LINK REAR BRK

43007-007

1
Out of stock

28

TORQUE LINK REAR BRK

43007-018

1
Out of stock

29

PIN,SPRING,10X12

43009-001

1
Out of stock

29-1

BOLT,10X25

92003-017

1
Out of stock

30

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

31

BOLT,10X32

92003-003

1
Out of stock

32

PIN COTTER 2.0X15

550D2015

1
Out of stock

33

NUT-HEX-FINE

315B1200

1
Out of stock

33

NUT-HEX-FINE

315B1200

1
Out of stock

34

WASHER PLAIN 10MM

410B1000

1
Out of stock

35

PIN-COTTER,2.5X20

550D2520

1
Out of stock

36

BOLT,8X20

115G0820

1
Out of stock

37

BRACKET CHAIN GUARD

55021-002

1
Out of stock

38

BODY CHAIN GUARD

55020-002

1

$6.68

In stock

39

WASHER SPRING 8MM

461F0800

1
Out of stock

40

NUT,8MM

311B0800

1
Out of stock

41

WASHER PLAIN 8MM

411B0800

1
Out of stock
