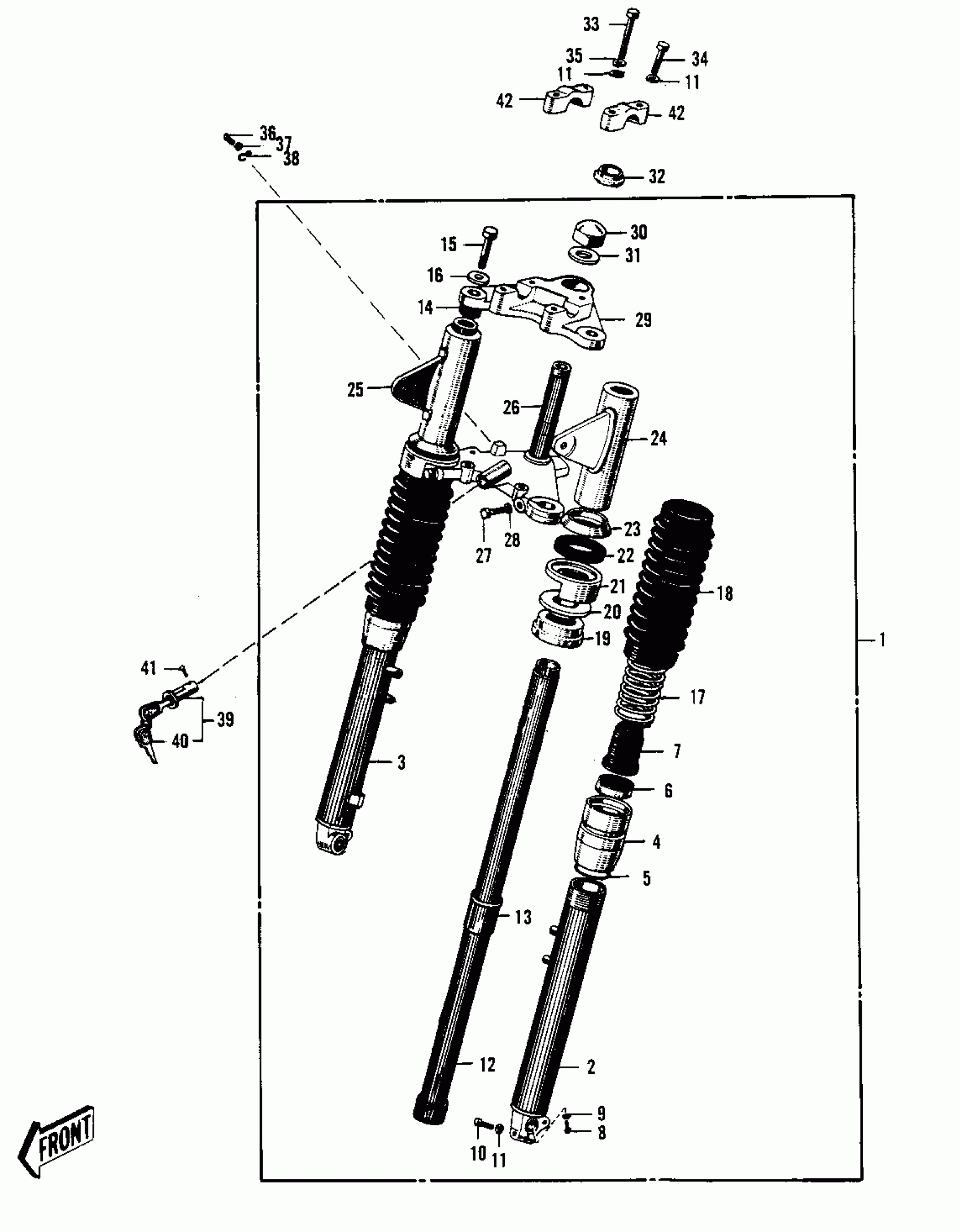

Kawasaki Bushwhacker FRONT FORK ('68.'69) Diagram

#

Description
Price

1

FRONT FORK ASSY,SLVR

44001-031-14

$230.17

1

FRONT FORK ASY SILVER

44001-053-15

$509.07

1

UNAVAILABLE IN PRICE BOOK

44001-042-15

Unavailable

1

FRONT FORK ASSY

44001-042

$415.14

2

TUBE,LH,FORK OUTER

44005-016

$66.92

3

TUBE,RH,FORK OUTER

44006-014

$74.12

4

NUT FORK OUTER TUBE

44007-012

$16.81

5

'O' RING OUTER TUBE

44046-012

Unavailable

6

OIL SEAL

92049-1049

$17.15

7

DUST SHIELD FORK

44010-004

Unavailable

8

SCREW PAN HEAD 4X8

220B0408

Unavailable

9

GASKET,FORK DRAIN PLUG

44045-002

$3.95

10

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

11

WASHER SPRING 8MM

461F0800

Unavailable

12

TUBE FORK INNER

44013-013

$78.32

13

GUIDE FORK INNER TUBE

44015-009

$5.56

14

'O' RING FRK TOP BOLT

44046-011

$1.37

15

BOLT FORK TOP

44041-015

$2.80

16

WASHER FORK TOP

44043-026

$1.10

17

SPRING FORK

44026-016

$12.76

17

SPRING FORK

44026-021

$12.76

18

COVER DUST

44027-008

$12.15

19

GUIDE DUST COVER

44028-013

$3.24

20

GUIDE FORK SPRING

44029-007

$1.97

21

RING FORK COVER

44030-006

$5.71

22

GASKET-FORK COVER

44045-036

Unavailable

23

WASHER FORK COVER

44043-036

$4.29

24

COVER L.H FORK SILVER

44033-017-14

Unavailable

25

COVER R.H FORK SILVER

44034-016-14

Unavailable

26

STEM STEERING

44037-021

$100.95

27

BOLT HEX HEAD 10X32

113B1032

Unavailable

28

WASHER SPRING 10MM

461F1000

Unavailable

29

HEAD STEERING STEM

44039-018

$58.92

30

NUT STEERING STEM HD

44042-005

Unavailable

31

WASHER STEERING STEM

44043-013

Unavailable

32

RACE,STEERING STEM BEARING

92047-010

$10.12

33

BOLT HEX HEAD 8X45

110N0845

Unavailable

34

BOLT HEX HEAD 8X35

110N0835

Unavailable

35

WASHER-PLAIN-SMALL,8MM

410D0800

$1.62

36

SCREW PAN HEAD 6X12

220B0612

Unavailable

37

WASHER SPRING 8MM

461F0800

Unavailable

38

CLAMP CABLE

92037-026

$1.03

39

UNAVAILABLE IN PRICE BOOK

27017-012

Unavailable

40

KEY SET STRNG NO.116

27018-009-16

$4.00

40

KEY SET STRNG NO.117

27018-009-17

$4.00

40

KEY SET STRNG NO.118

27018-009-18

$4.00

40

KEY SET STRNG NO.119

27018-009-19

$4.02

40

KEY SET STRNG NO.120

27018-009-20

$7.10

41

RIVET

92099-001

$3.51

42

HOLDER-HANDLE,UPP

46012-004

Unavailable
