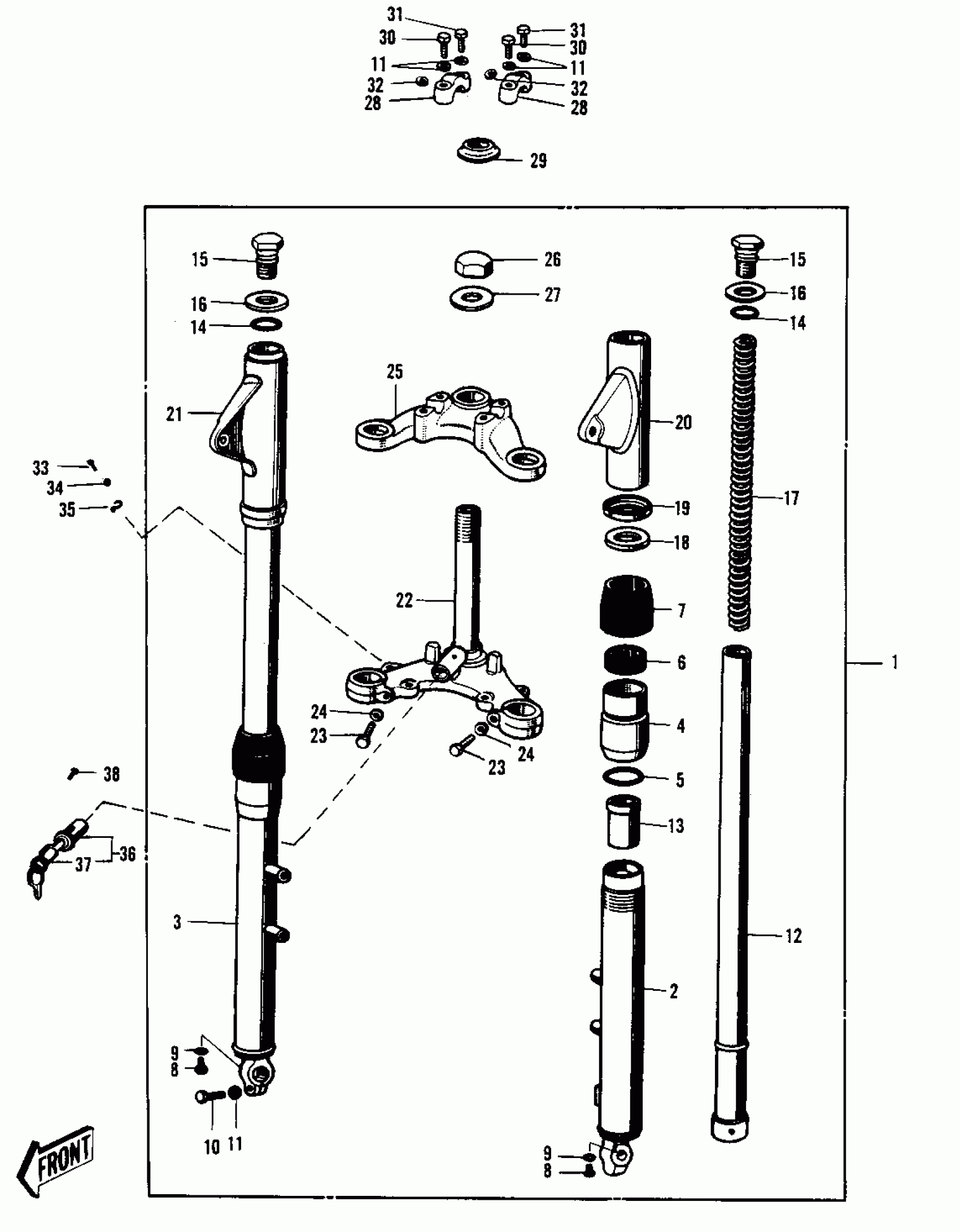

Kawasaki Bushwhacker FRONT FORK ('70) Diagram

#

Description
Price

1

FRONT FORK ASY SILVER

44001-053-15

$509.07

2

TUBE,LH,FORK OUTER

44005-028

$96.95

3

TUBE,RH,FORK OUTER

44006-027

$106.98

4

NUT FORK OUTER TUBE

44007-007

$59.80

5

'O' RING OUTER TUBE

44046-012

Unavailable

6

OIL SEAL

92049-1049

$17.15

7

DUST SHIELD FORK

44010-006

Unavailable

8

SCREW PAN HEAD 4X8

220B0408

Unavailable

9

GASKET,FORK DRAIN PLUG

44045-002

$3.95

10

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

11

WASHER SPRING 8MM

461F0800

Unavailable

12

TUBE-FORK INNER

44013-021

$105.05

13

GUIDE FORK INNER TUBE

44015-012

$8.90

14

'O' RING INNER TUBE

44046-014

Unavailable

15

BOLT FORK TOP

44041-022

$20.44

16

WASHER-FORK TOP

44043-040

$1.29

17

SPRING-FORK

44026-027

$19.61

18

GASKET FORK COVER

44045-012

Unavailable

19

WASHER FORK COVER

44043-035

Unavailable

20

COVER-L.H FORK,SILVER

44033-029-15

Unavailable

21

COVER-R.H FORK,SILVER

44034-028-15

Unavailable

22

STEM STEERING

44037-021

$100.95

23

BOLT HEX HEAD 10X32

113B1032

Unavailable

24

WASHER SPRING 10MM

461F1000

Unavailable

25

HEAD-STEERING STEM

44039-031

$82.07

26

NUT STEERING STEM HD

44042-005

Unavailable

27

WASHER STEERING STEM

44043-013

Unavailable

28

HOLDER-HANDLE,UPP

46012-004

Unavailable

29

RACE,STEERING STEM BEARING

92047-010

$10.12

30

BOLT HEX HEAD 8X45

110N0845

Unavailable

31

UNAVAILABLE IN PRICE BOOK

116B0836

Unavailable

32

WASHER-PLAIN-SMALL,8MM

410D0800

$1.62

33

SCREW PAN HEAD 6X12

220B0612

Unavailable

34

WASHER SPRING 6MM

461F0600

Unavailable

35

CLAMP CABLE

92037-026

$1.03

36

UNAVAILABLE IN PRICE BOOK

27017-012

Unavailable

37

KEY SET NO.134

27008-022-34

$5.25

37

KEYSET NO.135

27008-022-35

$6.80

37

KEY SET NO.136

27008-022-36

Unavailable

38

RIVET

92099-001

$3.51
