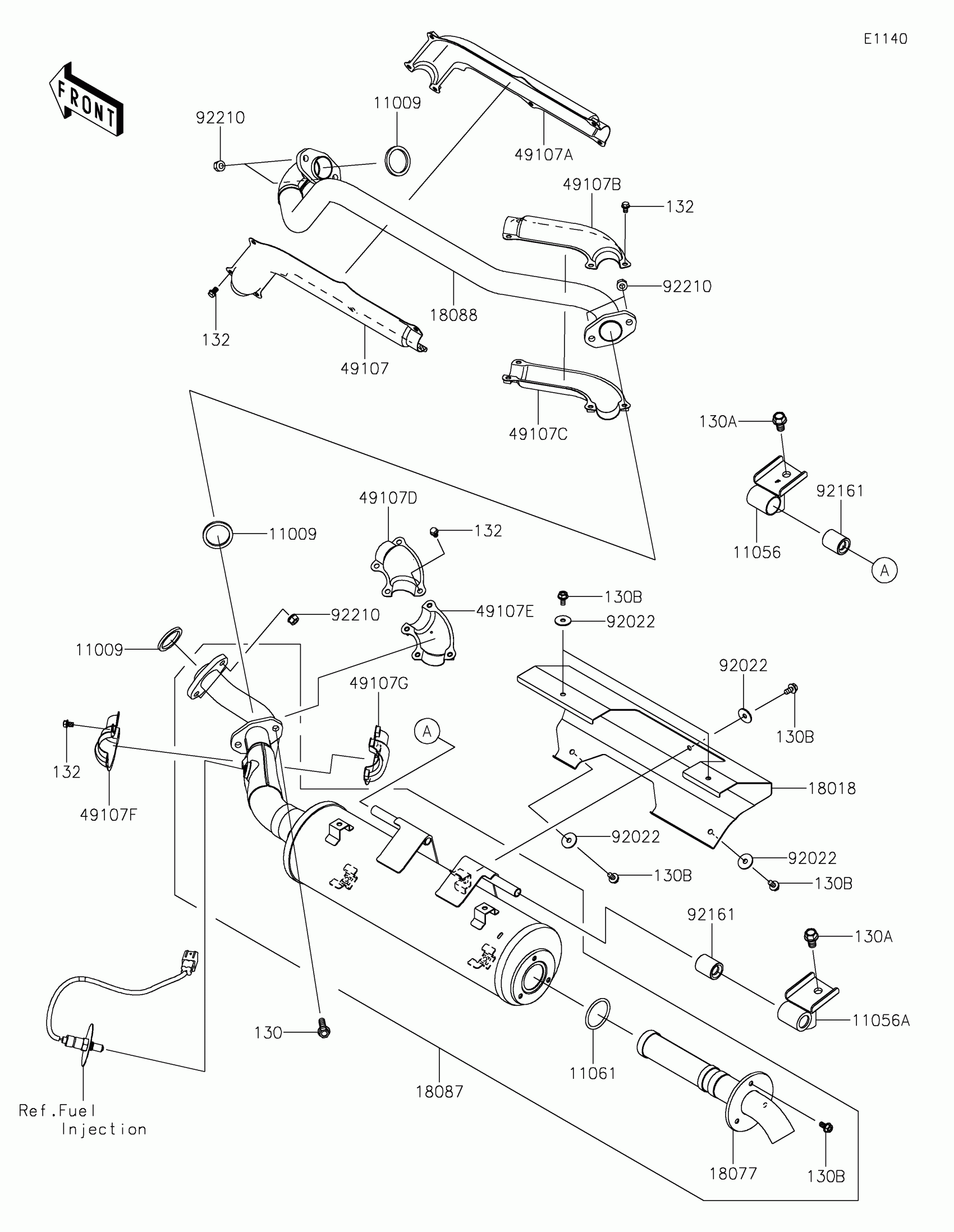

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Muffler(s) Diagram

Description

Price

11009

GASKET,EXHAUST HOLDER

11009-1894

$6.13

11056

BRACKET,MUFFLER,FR

11056-0532

$10.69

11056A

BRACKET,MUFFLER,RR

11056-0533

$10.69

11061

GASKET,38.9X46.4X3.0

11061-0082

$5.80

18018

PLATE-HEAT GUARD

18018-0036

$32.28

18077

ARRESTER-SPARK

18077-0036

$172.15

18087

MUFFLER

18087-0323

$683.29

18088

PIPE-EXHAUST

18088-0856

$284.66

49107

COVER-EXHAUST PIPE,FR,FR,LH

49107-0759

$14.27

49107A

COVER-EXHAUST PIPE,FR,FR,RH

49107-0760

$19.07

49107B

COVER-EXHAUST PIPE,FR,RR,UPP

49107-0761

$12.92

49107C

COVER-EXHAUST PIPE,FR,RR,LWR

49107-0762

$20.34

49107D

COVER-EXHAUST PIPE,RR,FR,UPP

49107-0763

$14.03

49107E

COVER-EXHAUST PIPE,RR,FR,LWR

49107-0764

$15.51

49107F

COVER-EXHAUST PIPE,RR,RR,FR

49107-0765

$10.25

49107G

COVER-EXHAUST PIPE,RR,RR,RR

49107-0766

$15.86

92022

WASHER,6.5X22X1.6

92022-237

$2.99

92161

DAMPER

92161-0961

$19.69

92210

NUT,8MM

92210-1242

$1.73

130

BOLT-FLANGED,8X30

130BD0830

$1.43

130A

BOLT-FLANGED,10X16

130CA1016

$2.31

130B

BOLT-FLANGED,6X12

130CD0612

$1.32

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$2.34
