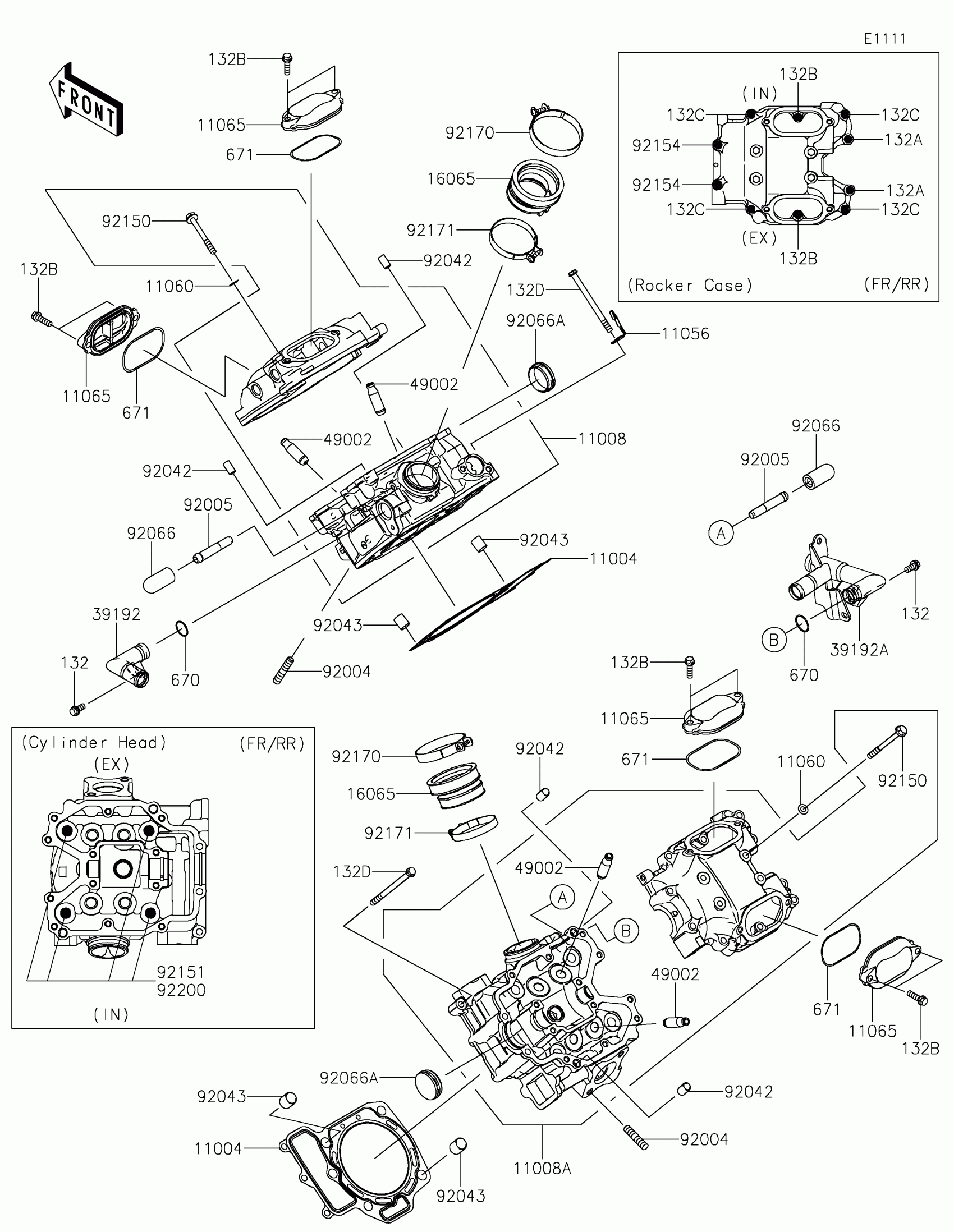

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0011

$25.79

11008

HEAD-COMP-CYLINDER,FR

11008-1495

$901.44

11008A

HEAD-COMP-CYLINDER,RR

11008-1496

$901.44

11056

BRACKET

11056-1255

$3.93

11060

GASKET,6.2X12X0.3

11060-1994

$1.71

11065

CAP,ROCKER CASE

11065-0724

$10.77

16065

HOLDER-CARBURETOR

16065-0113

$11.10

39192

PIPE-WATER,FR

39192-0119

$37.14

39192A

PIPE-WATER,RR

39192-0120

$86.54

49002

GUIDE-VALVE

49002-0706

$25.56

92004

STUD,8X22

92004-1217

$4.27

92005

FITTING

92005-1264

$7.44

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,10.1X12X14

92043-4009

$4.67

92066

PLUG

92066-0713

$3.19

92066A

PLUG

92066-0904

$12.90

92150

BOLT,6X55

92150-1302

$4.78

92151

BOLT,FLANGED,10X150

92151-1917

$16.19

92154

BOLT,FLANGED,6X130

92154-0993

$3.93

92170

CLAMP

92170-1448

$6.18

92171

CLAMP

92171-0722

$11.53

92200

WASHER,11.5X20.5X1.6

92200-1128

$4.18

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X20

132BA0620

$1.77

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132C

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

132D

BOLT-FLANGED-SMALL,6X95

132BA0695

$2.05

670

O RING,16MM

670B2016

$1.04

671

O RING,55MM

671D2555

$2.76
