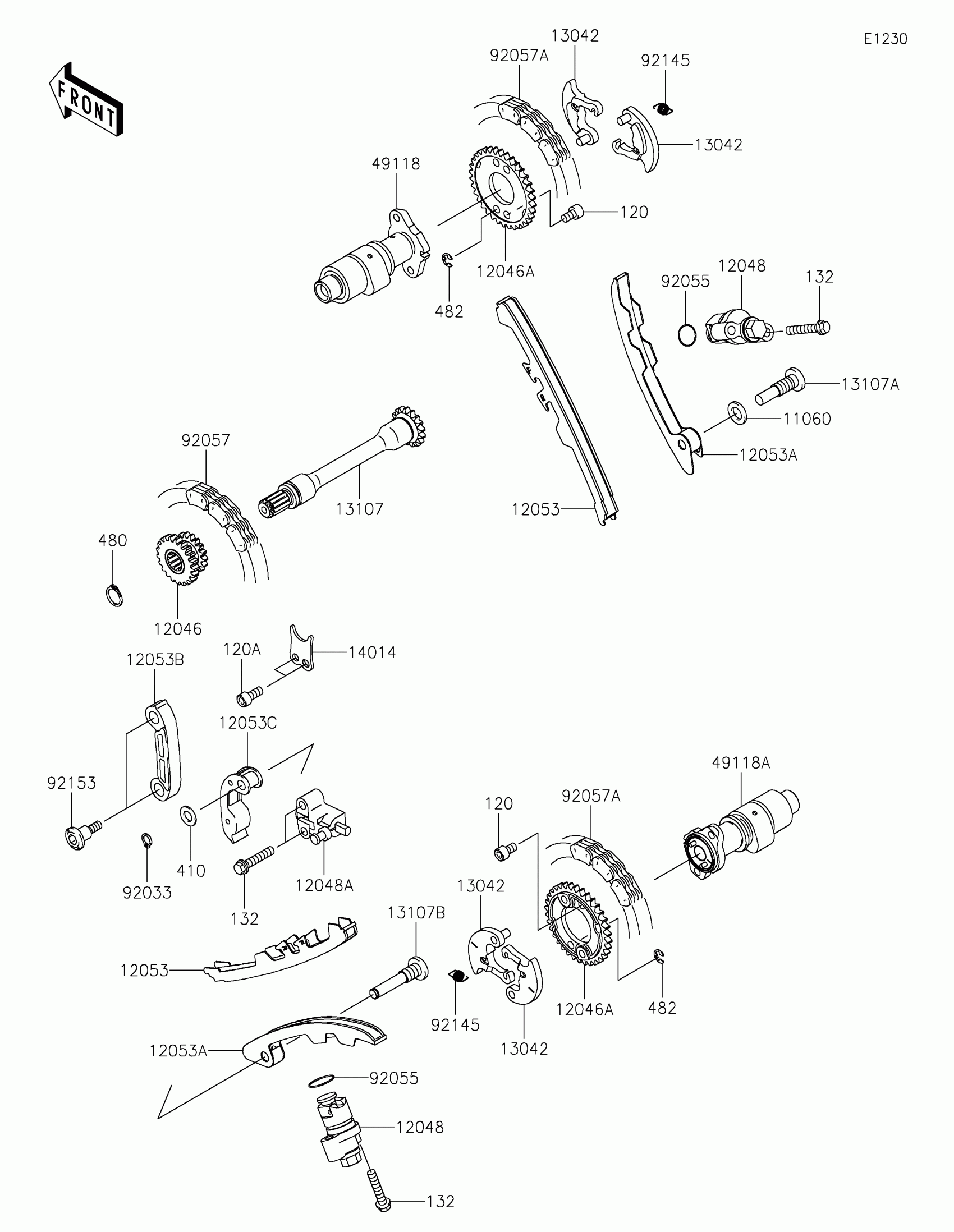

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Camshaft(s)/Tensioner Diagram

Description

Price

11060

GASKET

11060-1966

$1.86

12046

SPROCKET,21T&17T

12046-0562

$67.76

12046A

SPROCKET,CAMSHAFT,34T

12046-0568

$59.72

12048

TENSIONER-ASSY,CAM

12048-1176

$124.72

12048A

TENSIONER-ASSY,SECONDARY

12048-1177

$142.70

12053

GUIDE-CHAIN,CAMSHAFT,TENSION

12053-1441

$47.93

12053A

GUIDE-CHAIN,CAMSHAFT,SLACK

12053-1442

$50.60

12053B

GUIDE-CHAIN,TENSION

12053-1443

$25.59

12053C

GUIDE-CHAIN,SLACK

12053-1444

$50.48

13042

WEIGHT,DECOMP

13042-1141

$44.85

13107

SHAFT

13107-0029

$171.54

13107A

SHAFT,CHAIN GUIDE,FR

13107-1443

$10.49

13107B

SHAFT,CHAIN GUIDE,RR

13107-1444

$12.32

14014

PLATE-POSITION,DRIVE

14014-0050

$2.63

49118

CAMSHAFT-COMP,FR

49118-0937

$211.19

49118A

CAMSHAFT-COMP,RR

49118-0938

$211.19

92033

RING-SNAP,8MM

92033-1039

$3.25

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,DID SCR-0412 SV

92057-0186

$26.35

92057A

CHAIN,DID SCR-0409 SV

92057-0187

$36.90

92145

SPRING,DECOMP

92145-1495

$3.71

92153

BOLT,SOCKET,6X24.5

92153-1200

$8.81

120

BOLT-SOCKET,6X10

120CA0610

$1.27

120A

BOLT-SOCKET,6X14

120CB0614

$3.14

132

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36
