2026 Kawasaki Brute Force® 750 Front Bevel Gear Diagram

← All diagrams

Find the part on the Front Bevel Gear diagram for your 2026 Kawasaki Brute Force® 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

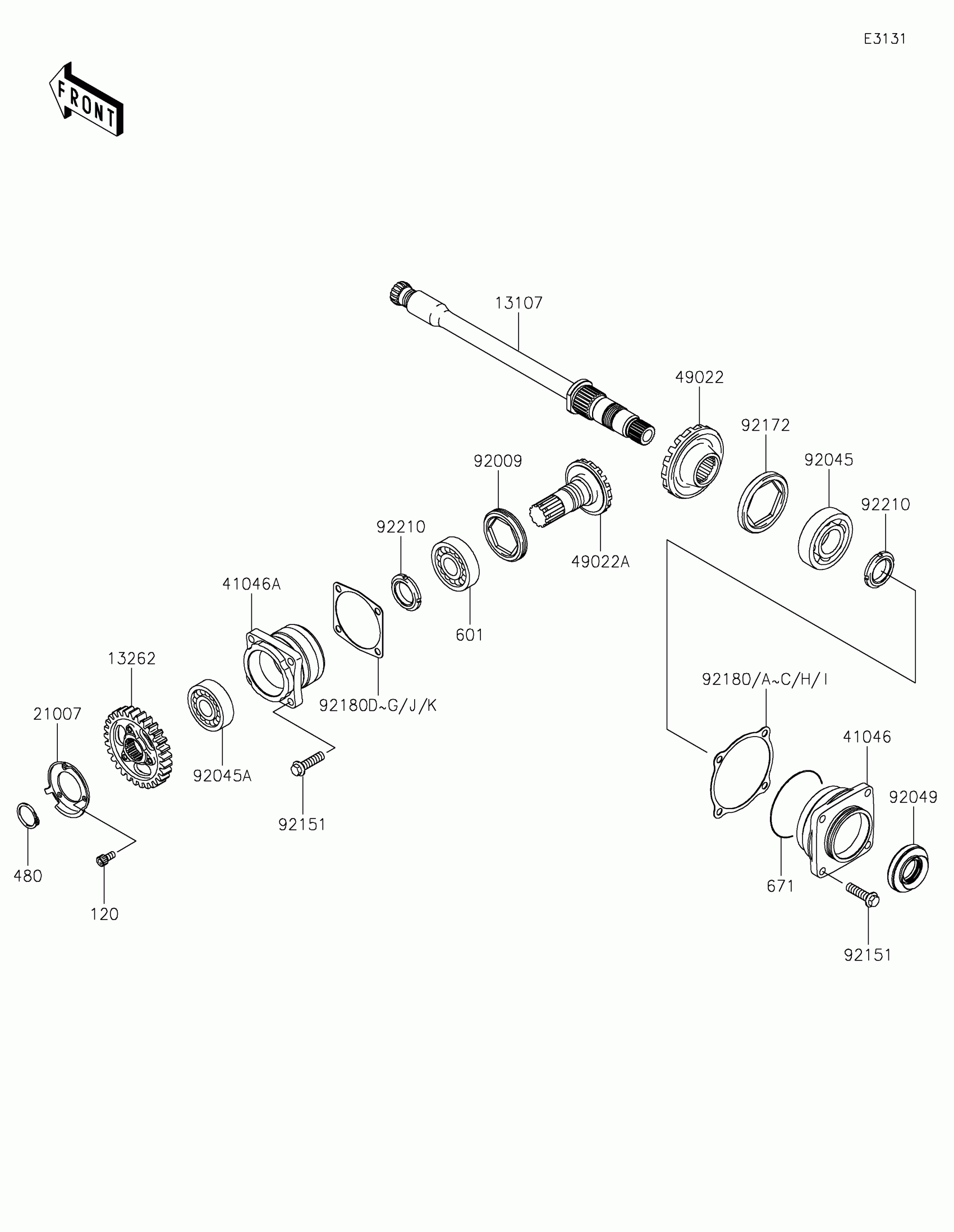

2026 Kawasaki Brute Force® 750 Front Bevel Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,F/R OUTPUT

13107-0727

1
Out of stock

13262

GEAR,OUTPUT,29T

13262-0960

1

$175.66

In stock

21007

ROTOR,REVERSE SENSOR

21007-1416

1
Out of stock

41046

HOUSING-BEARING

41046-0025

1

$169.39

In stock

41046A

HOUSING-BEARING

41046-1101

1

$137.12

In stock

49022

GEAR-BEVEL,DRIVEN,20T

49022-0011

1
Out of stock

49022A

GEAR-BEVEL,DRIVE,12T

49022-1192

1
Out of stock

92009

SCREW,64MM

92009-1914

1
Out of stock

92045

BEARING-BALL,6306SH2

92045-1190

1
Out of stock

92045A

BEARING-BALL,62/28

92045-1207

1
Out of stock

92049

SEAL-OIL

92049-0160

1
Out of stock

92151

BOLT-FLANGED-SMALL,8X30

92151-1688

1
Out of stock

92172

SCREW,SET,75X10

92172-0371

1
Out of stock

92180

SHIM,DRIVEN,T=0.15

92180-1307

—
Out of stock

92180A

SHIM,DRIVEN,T=0.20

92180-1308

—
Out of stock

92180B

SHIM,DRIVEN,T=0.50

92180-1309

—
Out of stock

92180C

SHIM,DRIVEN,T=0.80

92180-1310

—
Out of stock

92180D

SHIM,DRIVE,T=0.15

92180-1311

—
Out of stock

92180E

SHIM,DRIVE,T=0.20

92180-1312

—
Out of stock

92180F

SHIM,DRIVE,T=0.50

92180-1313

—
Out of stock

92180G

SHIM,DRIVE,T=0.80

92180-1314

—
Out of stock

92180H

SHIM,DRIVEN,T=1.00

92180-1349

—
Out of stock

92180I

SHIM,DRIVEN,T=1.20

92180-1350

—
Out of stock

92180J

SHIM,DRIVE,T=1.00

92180-1351

—
Out of stock

92180K

SHIM,DRIVE,T=1.20

92180-1352

—
Out of stock

92210

NUT,30MM

92210-1294

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

601

BALL BEARING,#6206

601B6206

1
Out of stock

671

O RING

671D2585

1
Out of stock
