2026 Kawasaki Brute Force® 750 Drive Shaft-Propeller Diagram

← All diagrams

Find the part on the Drive Shaft-Propeller diagram for your 2026 Kawasaki Brute Force® 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

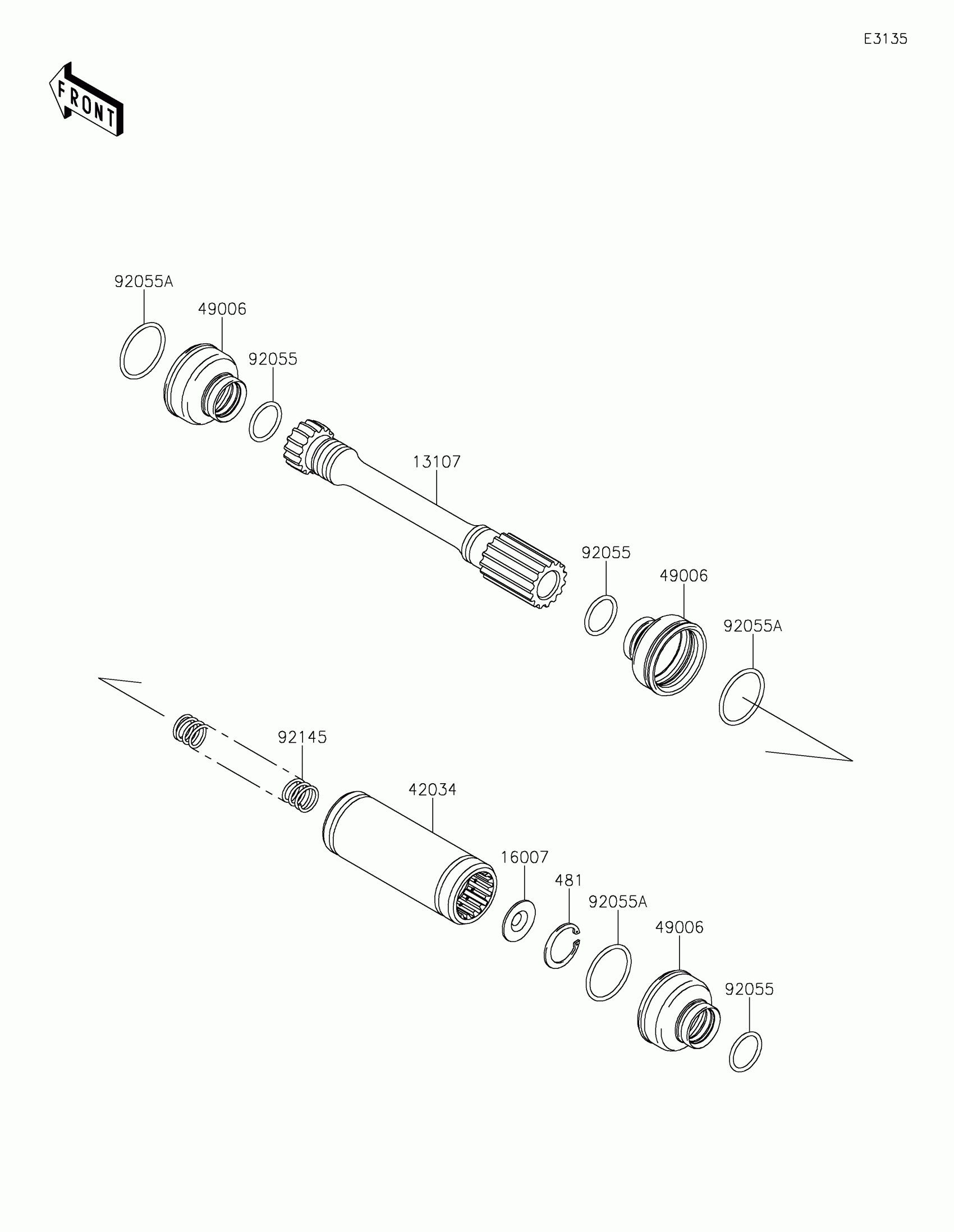

2026 Kawasaki Brute Force® 750 Drive Shaft-Propeller Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,FR,PROPELLER

13107-0788

1
Out of stock

16007

SEAT-SPRING,PROPELLER SHAFT

16007-0042

1
Out of stock

42034

COUPLING,PROPELLER

42034-0730

1
Out of stock

49006

BOOT

49006-1362

1
Out of stock

92055

RING-O,18X24X3

92055-1633

1
Out of stock

92055A

RING-O,30X35X2.5

92055-1693

1
Out of stock

92145

SPRING,PROPELLER SHAFT

92145-1583

1
Out of stock

481

CIRCLIP-TYPE-C,25MM

481J2500

1
Out of stock
