2026 Kawasaki Brute Force® 750 Driven Converter/drive Belt Diagram

← All diagrams

Find the part on the Driven Converter/drive Belt diagram for your 2026 Kawasaki Brute Force® 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

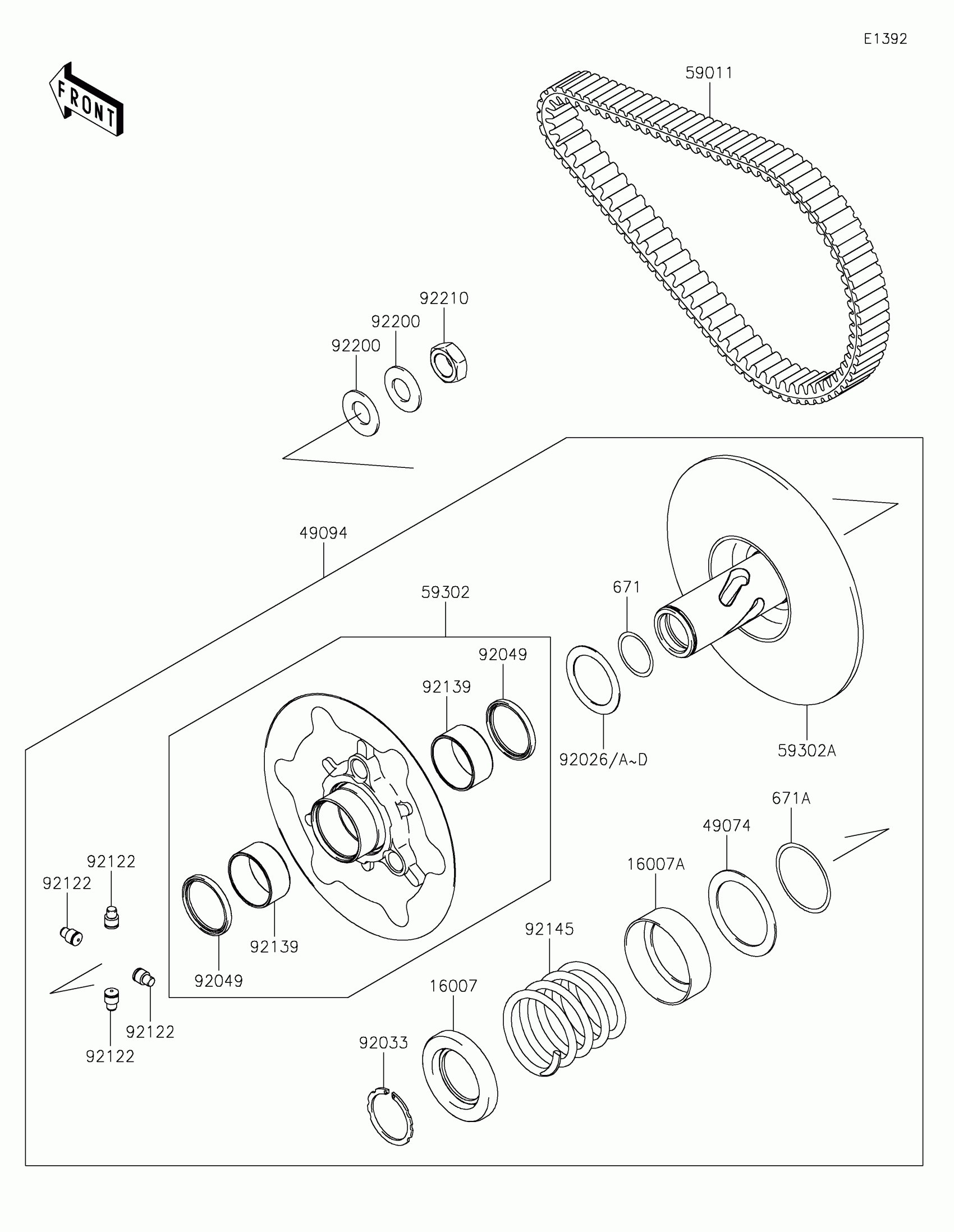

2026 Kawasaki Brute Force® 750 Driven Converter/drive Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16007

SEAT-SPRING

16007-1203

1

$10.03

In stock

16007A

1

$18.59

In stock

49074

PLATE-THRUST

49074-1055

1

$37.28

In stock

49094

1

$684.10

In stock

59011

BELT,CVT

59011-0019

1

$118.09

In stock

59302

SHEAVE-COMP,MOVABLE

59302-0039

1

$344.81

In stock

59302A

SHEAVE-COMP,FIXED

59302-0077

1

$344.81

In stock

92026

SPACER,T=0.30

92026-0034

—
Out of stock

92026A

SPACER,T=1.00

92026-1565

—

$6.34

In stock

92026B

SPACER,T=0.60

92026-1569

—

$6.34

In stock

92026C

SPACER,T=1.40

92026-1570

—

$6.34

In stock

92026D

SPACER,T=0.80

92026-1617

—

$6.34

In stock

92033

RING-SNAP

92033-1317

1

$4.84

In stock

92049

SEAL-OIL

92049-1528

1
Out of stock

92122

ROLLER

92122-1209

1

$6.09

In stock

92139

BUSHING

92139-0313

1

$23.64

In stock

92145

SPRING,PURPLE

92145-1499

1

$34.67

In stock

92200

WASHER

92200-1505

1
Out of stock

92210

NUT,18MM

92210-1367

1
Out of stock

671

O RING

671D2530

1

$4.59

In stock

671A

O RING

671D2550

1

$5.71

In stock
