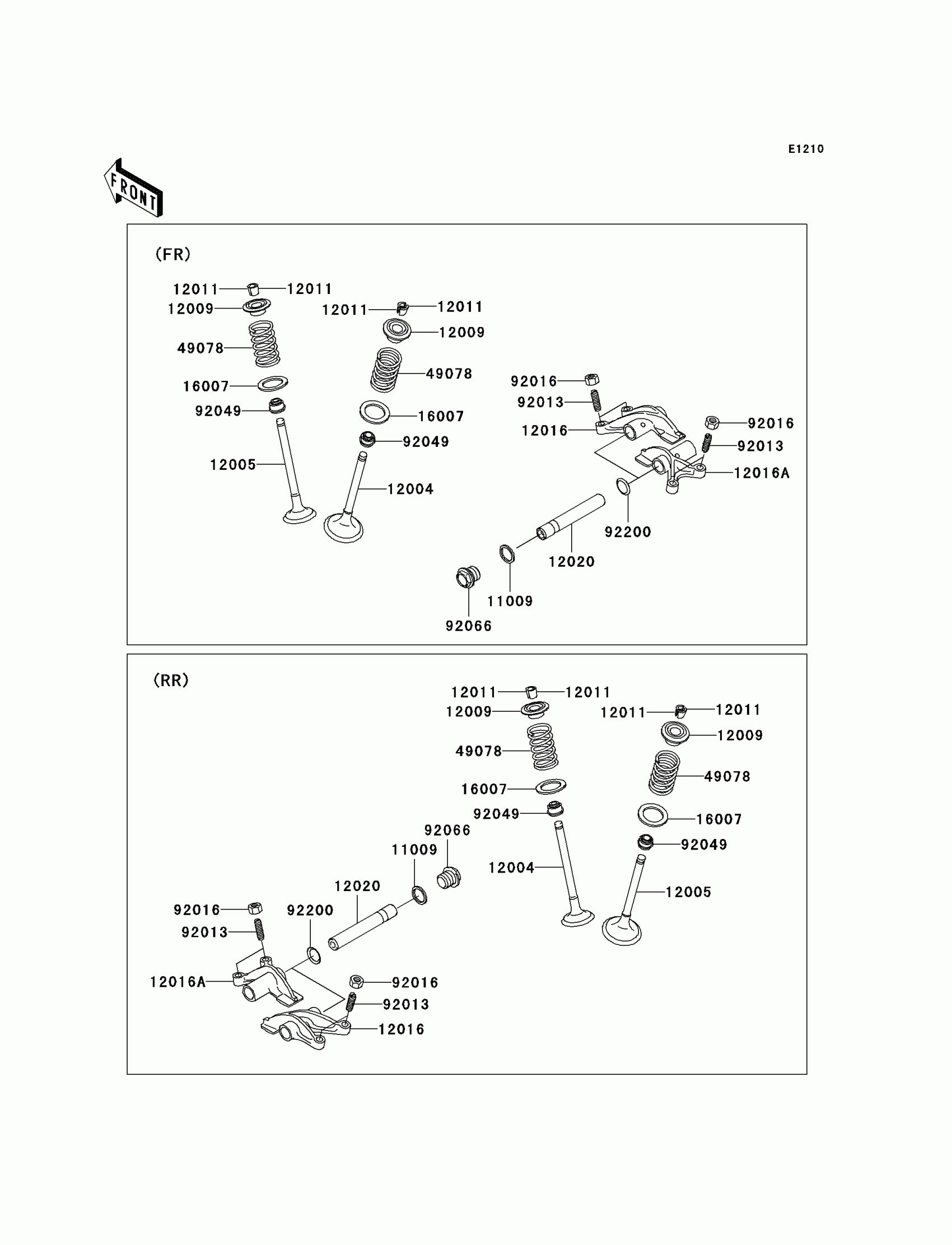

Kawasaki Brute Force 750 4x4i Valve(s) Diagram

Description

Price

11009

GASKET,14X18X1.5

11009-1430

$4.88

12004

VALVE-INTAKE

12004-0007

Unavailable

12005

VALVE-EXHAUST

12005-0040

Unavailable

12009

RETAINER-VALVE SPRING

12009-1056

$8.78

12011

COLLET

12011-1051

$1.42

12016

ARM-ROCKER,EXHAUST

12016-1128

$92.58

12016A

ARM-ROCKER,INTAKE

12016-1129

$92.58

12020

SHAFT-ROCKER

12020-0004

$11.43

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1178

$4.64

49078

SPRING-ENGINE VALVE

49078-0014

$11.93

92013

SCREW,6MM

92013-009

$4.93

92016

NUT,6MM

92016-061

$3.57

92049

SEAL-OIL,VSB58.558

92049-1218

$3.01

92066

PLUG,DRAIN

92066-2196

$2.98

92200

WASHER,13X17X0.3

92200-1508

Unavailable
