2005 Kawasaki Brute Force 750 4x4i Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

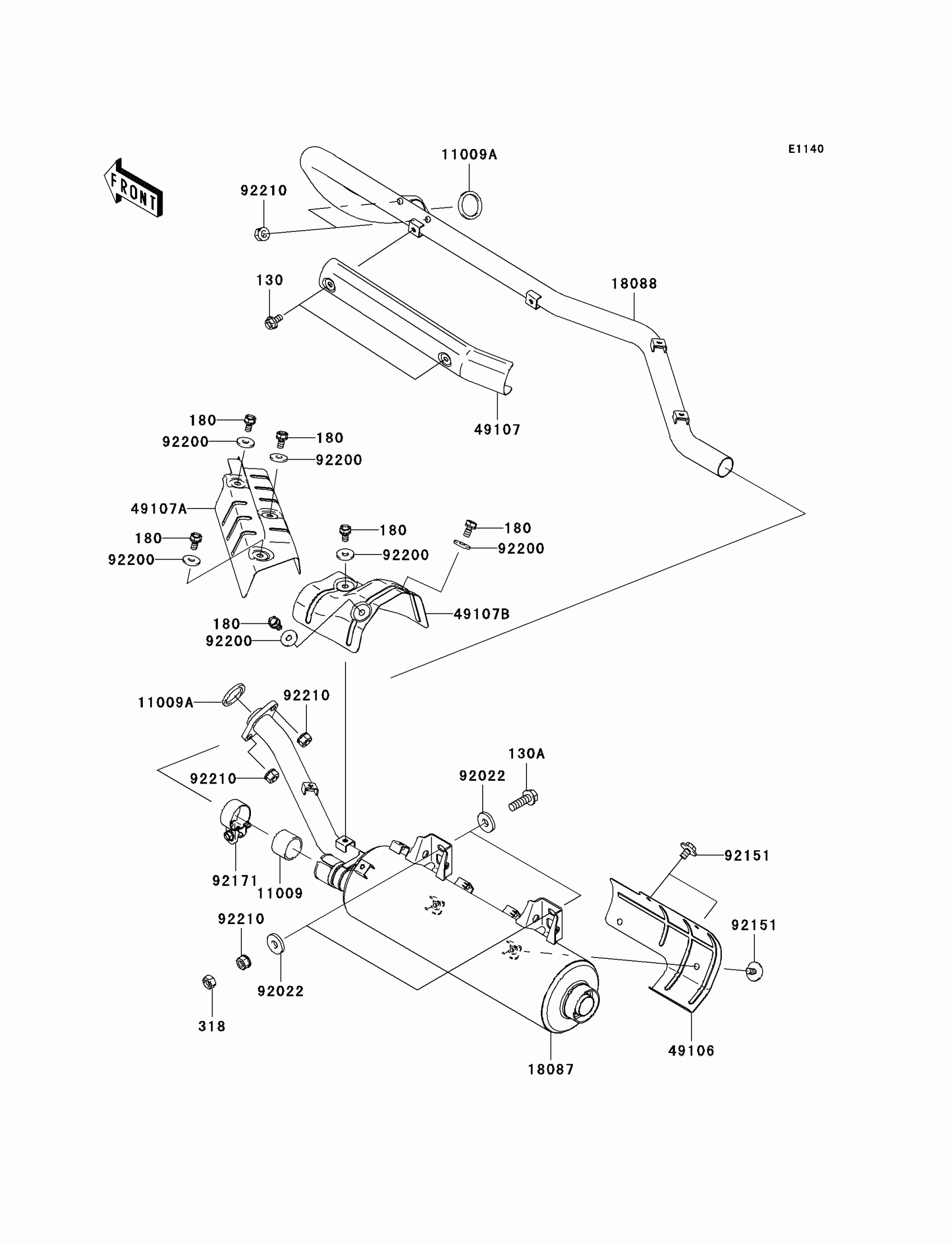

2005 Kawasaki Brute Force 750 4x4i Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

130A

BOLT-FLANGED,8X25

130Z0825

1
Out of stock

180

BOLT-UPSET-WS,6X12

180Y0612

1
Out of stock

318

NUT-HEX-SMALL,8MM

318G0800

1
Out of stock

11009

GASKET,MUFFLER CONNECTING

11009-1865

1
Out of stock

11009A

GASKET,EXHAUST HOLDER

11009-1894

1
Out of stock

18087

MUFFLER

18087-0066

1
Out of stock

18088

PIPE-EXHAUST

18088-0146

1
Out of stock

49106

COVER-MUFFLER

49106-0011

1
Out of stock

49107

COVER-EXHAUST PIPE,FR

49107-0042

1
Out of stock

49107A

COVER-EXHAUST PIPE,CNT

49107-0049

1
Out of stock

49107B

COVER-EXHAUST PIPE,RR

49107-0050

1
Out of stock

92022

WASHER,8.5X22X3.2

92022-276

1
Out of stock

92151

BOLT,UPSET-WP,6X12

92151-1944

1
Out of stock

92171

CLAMP

92171-1330

1
Out of stock

92200

WASHER,6.5X18X2.0

92200-2035

1
Out of stock

92210

NUT,8MM

92210-1242

1
Out of stock
