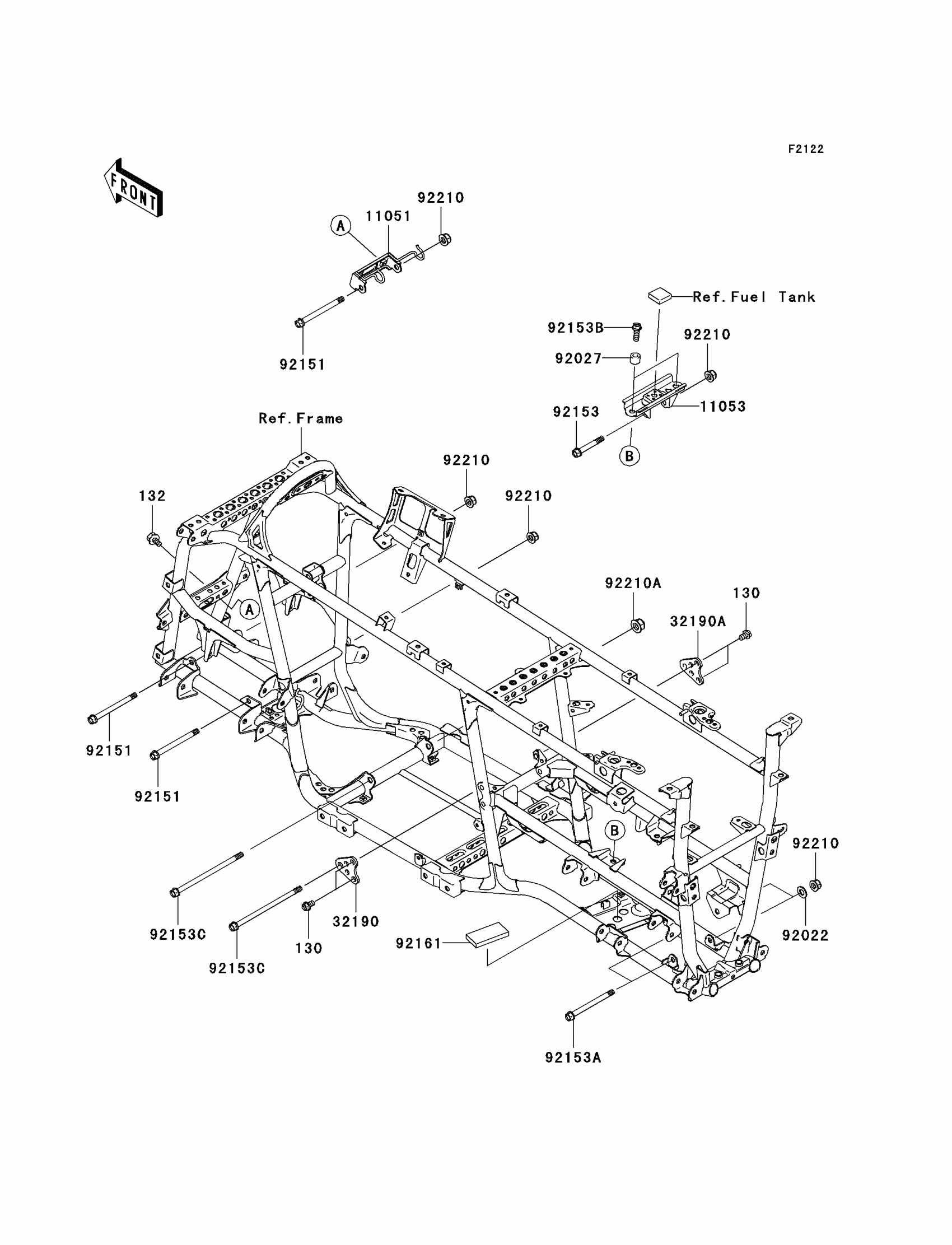

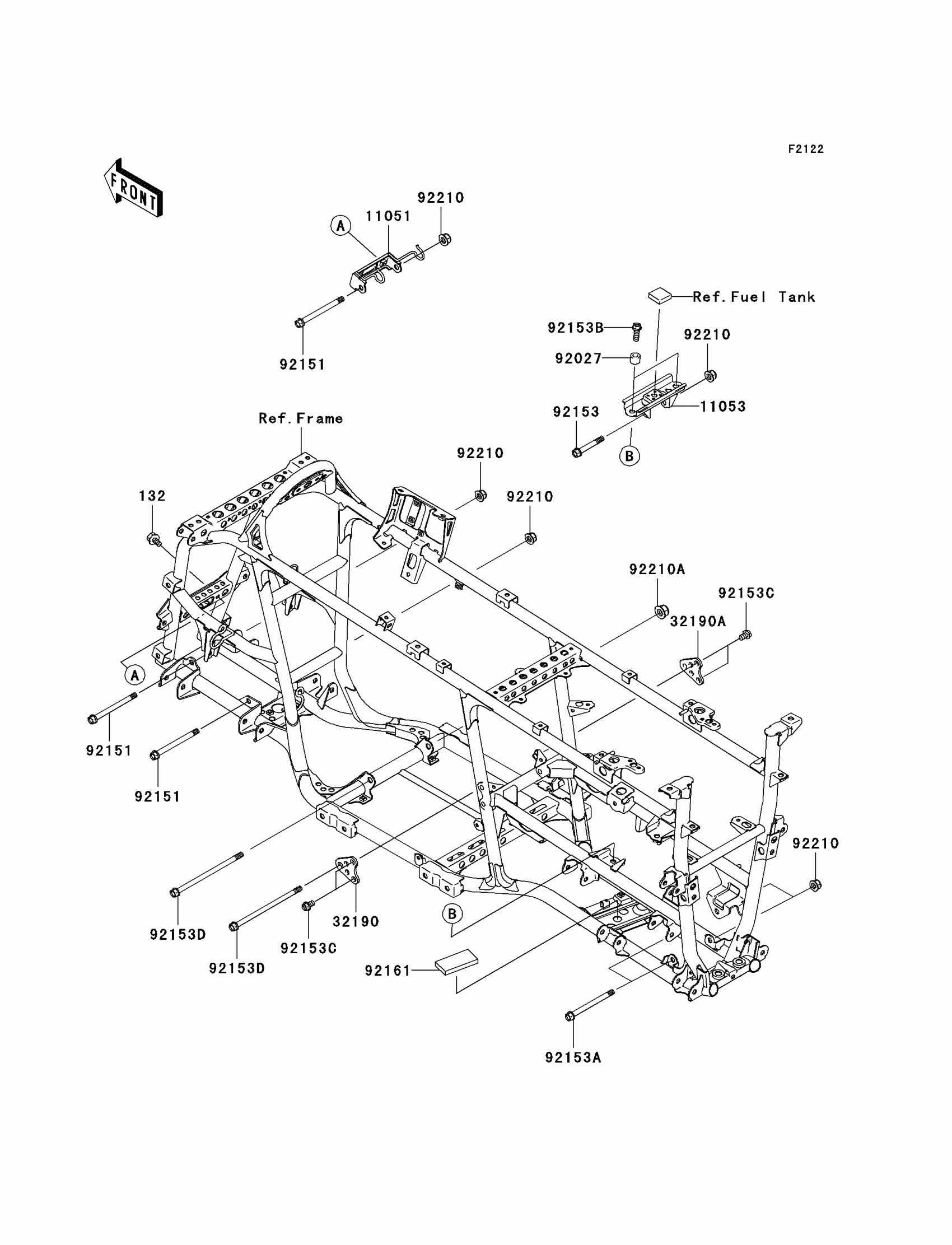

Kawasaki Brute Force 750 4x4i Engine Mount Diagram

Description

Price

130

BOLT-FLANGED

130S1016

Unavailable

132

BOLT-FLANGED-SMALL,8X14

132J0814

Unavailable

11051

BRACKET,FRONT DIFF

11051-1929

$30.58

11053

BRACKET,REAR DIFF,TOP

11053-1592

$9.97

32190

BRACKET-ENGINE,RR,UPP,LH

32190-0059

$3.24

32190A

BRACKET-ENGINE,RR,UPP,RH

32190-0060

$2.79

92022

WASHER,10.2X20X1.5

92022-3742

$3.19

92027

COLLAR,FRONT AXLE,L=14.5

92027-1472

$10.80

92151

BOLT,FLANGED,10X120

92151-1914

$17.97

92153

BOLT,FLANGED,10X70

92153-0871

$4.25

92153A

BOLT,FLANGED,10X120

92153-0872

$18.19

92153B

BOLT,FLANGED,10X30

92153-0930

$3.12

92153C

BOLT,FLANGED,12X190

92153-1272

$16.24

92161

DAMPER

92161-0215

$7.44

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$9.39

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$4.67
