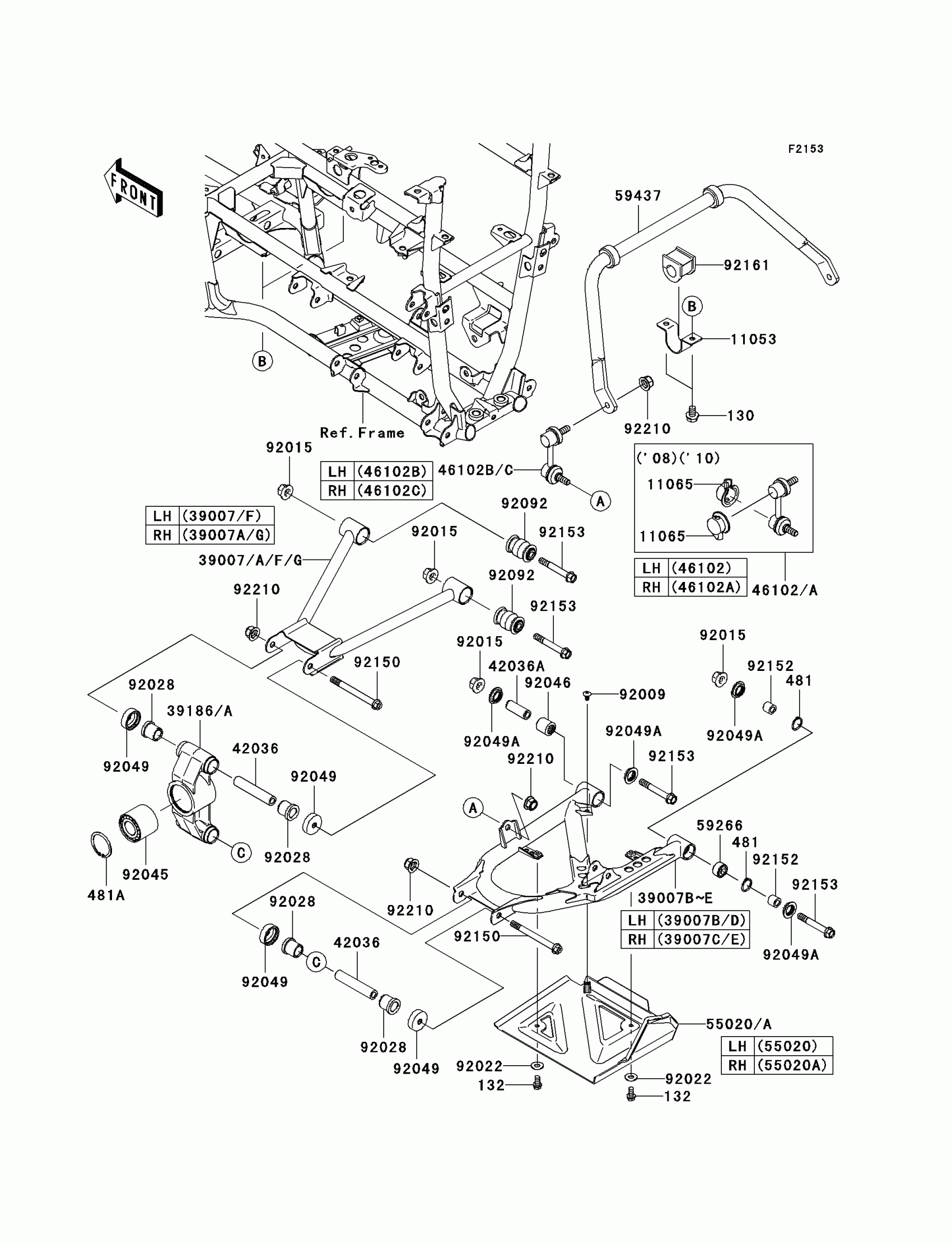

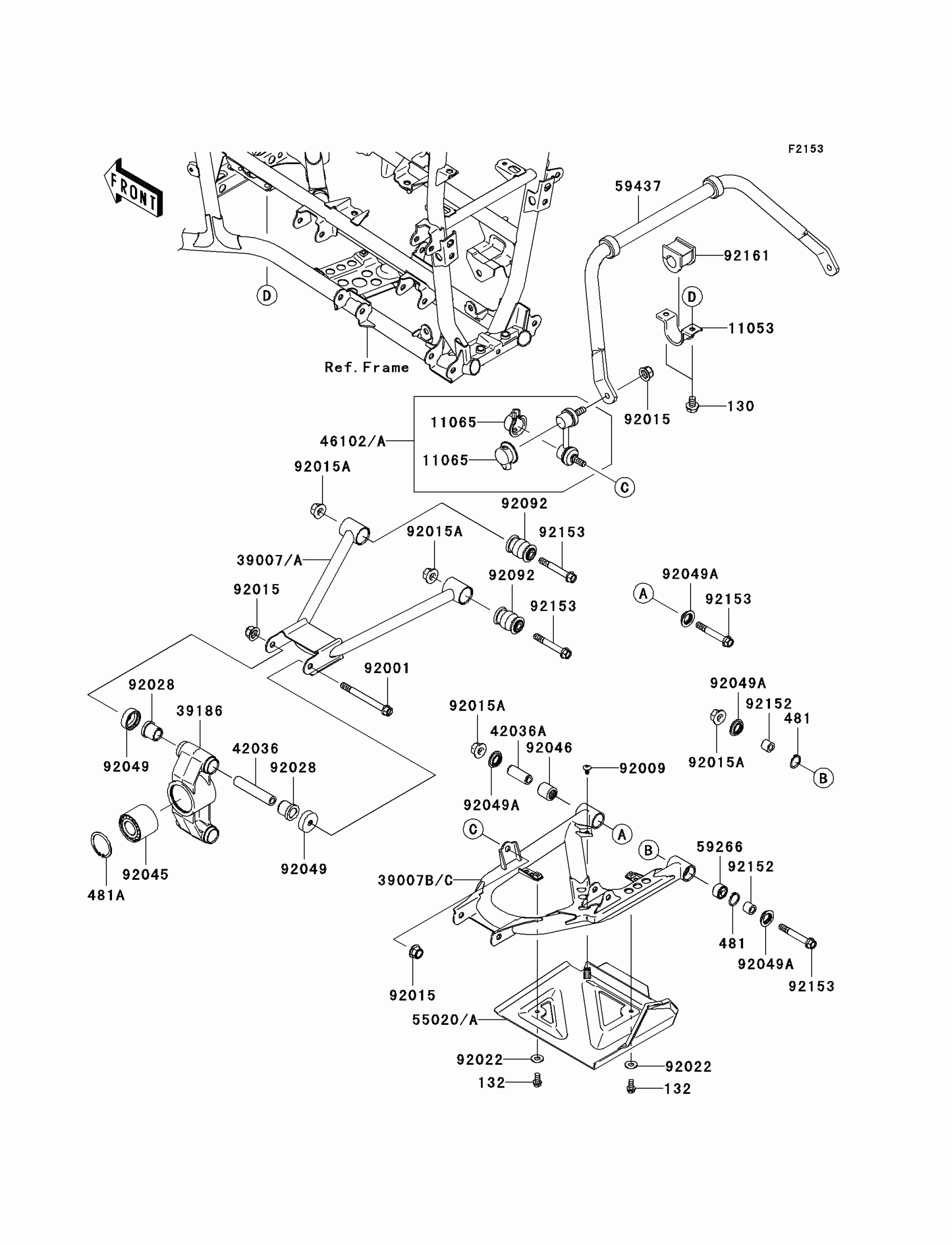

Kawasaki Brute Force 750 4x4i Rear Suspension Diagram

#

Description
Price

130

BOLT-FLANGED,8X12

130J0812

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.22

481A

CIRCLIP-TYPE-C,52MM

481J5200

$3.72

11053

BRACKET,STABILIZER

11053-1585

$3.68

11065

CAP

11065-0086

$10.32

39007

ARM-SUSP,RR,UPP,LH

39007-0021

$97.30

39007A

ARM-SUSP,RR,UPP,RH

39007-0022

$97.30

39007B

ARM-SUSP,RR,LWR,LH

39007-0038

$97.30

39007C

ARM-SUSP,RR,LWR,RH

39007-0039

$92.44

39186

KNUCKLE,RR

39186-0030

$242.80

42036

SLEEVE,10X17X85.6

42036-1190

$26.20

42036A

SLEEVE

42036-1376

$11.17

46102

ROD,STABILIZER,LH

46102-0055

Unavailable

46102A

ROD,STABILIZER,RH

46102-0056

Unavailable

55020

GUARD,REAR ARM,LH,F.BLACK

55020-0166-6Z

Unavailable

55020A

GUARD,REAR ARM,RH,F.BLACK

55020-0167-6Z

Unavailable

59266

JOINT-BALL

59266-1011

$58.78

59437

STABILIZER

59437-0001

$110.38

92001

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.10

92009

SCREW,6X12

92009-1480

$2.23

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,FLANGED,10MM

92015-1415

$3.57

92022

WASHER PLAIN

92022-024

$2.76

92028

BUSHING

92028-1466

$7.83

92045

BEARING-BALL,25BWD02A

92045-0021

$82.52

92046

BEARING-NEEDLE

92046-1046

$22.57

92049

SEAL-OIL,KNUCKLE

92049-1198

$16.19

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92092

BUSHING-RUBBER

92092-0004

$6.32

92152

COLLAR,10X17X14.5

92152-1455

$6.91

92153

BOLT,FLANGED,10X70

92153-0666

$3.66

92161

DAMPER

92161-0265

$4.24
