2005 Kawasaki Brute Force 750 4x4i Front Suspension Diagram

← All diagrams

Find the part on the Front Suspension diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

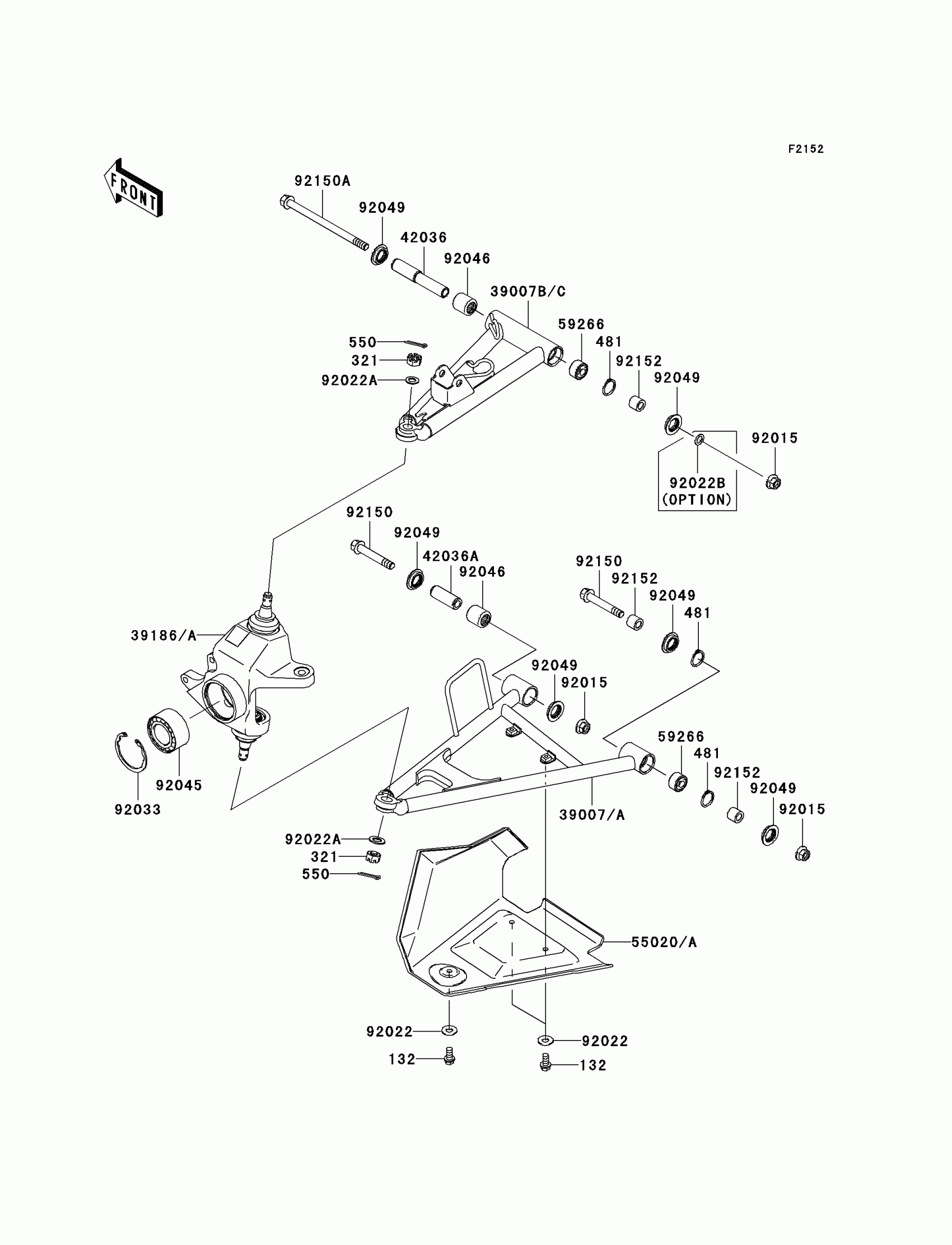

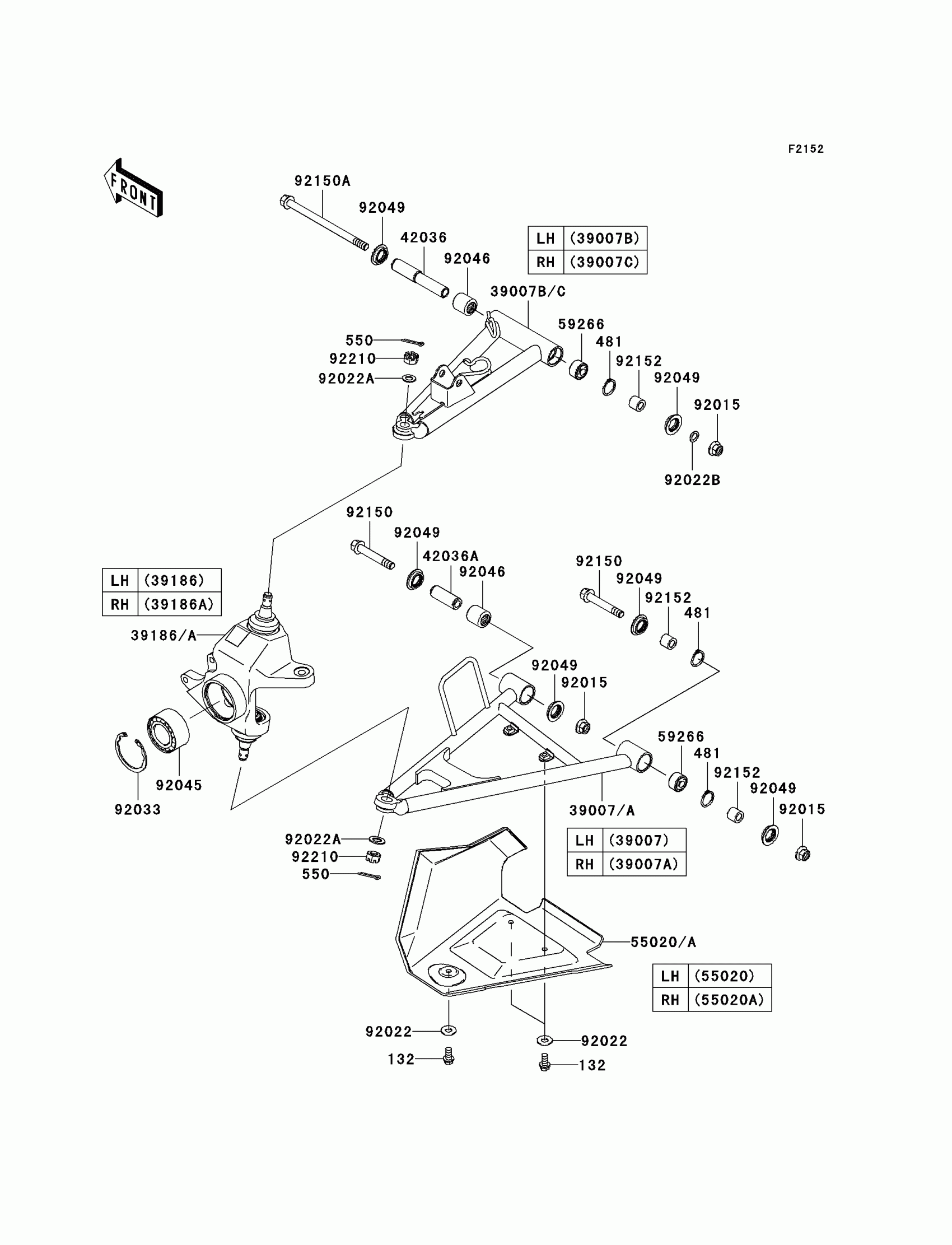

2005 Kawasaki Brute Force 750 4x4i Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

321

NUT-CASTLE,12MM

321H1200

1
Out of stock

481

1

$2.58

In stock

550

PIN-COTTER,3.0X25

550D3025

1
Out of stock

39007

ARM-SUSP,FR,LWR,LH

39007-0040

1
Out of stock

39007A

ARM-SUSP,FR,LWR,RH

39007-0041

1

$95.08

In stock

39007B

ARM-SUSP,FR,UPP,LH

39007-7507

1

$95.08

In stock

39007C

ARM-SUSP,FR,UPP,RH

39007-7508

1
Out of stock

39186

KNUCKLE ASSY,FR,LH

39186-0033

1

$281.18

In stock

39186A

KNUCKLE ASSY,FR,RH

39186-0034

1

$281.18

In stock

42036

1

$26.40

In stock

42036A

SLEEVE

42036-1376

1

$11.64

In stock

55020

1

$34.38

In stock

55020A

1

$31.62

In stock

59266

JOINT-BALL

59266-1011

1

$60.17

In stock

92015

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92022

WASHER PLAIN

92022-024

1

$2.92

In stock

92022A

WASHER,12.3X22X1.6

92022-1065

1

$3.58

In stock

92022B

WASHER,10.2X16X1

92022-1829

—
Out of stock

92033

RING-SNAP,55MM

92033-1274

1

$7.48

In stock

92045

1

$94.43

In stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92049

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92150

BOLT,FLANGED,10X63

92150-1384

1

$10.88

In stock

92150A

BOLT,FLANGED,10X150

92150-1686

1

$12.66

In stock

92152

COLLAR,10X17X14.5

92152-1455

1

$7.20

In stock
