2005 Kawasaki Brute Force 750 4x4i Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

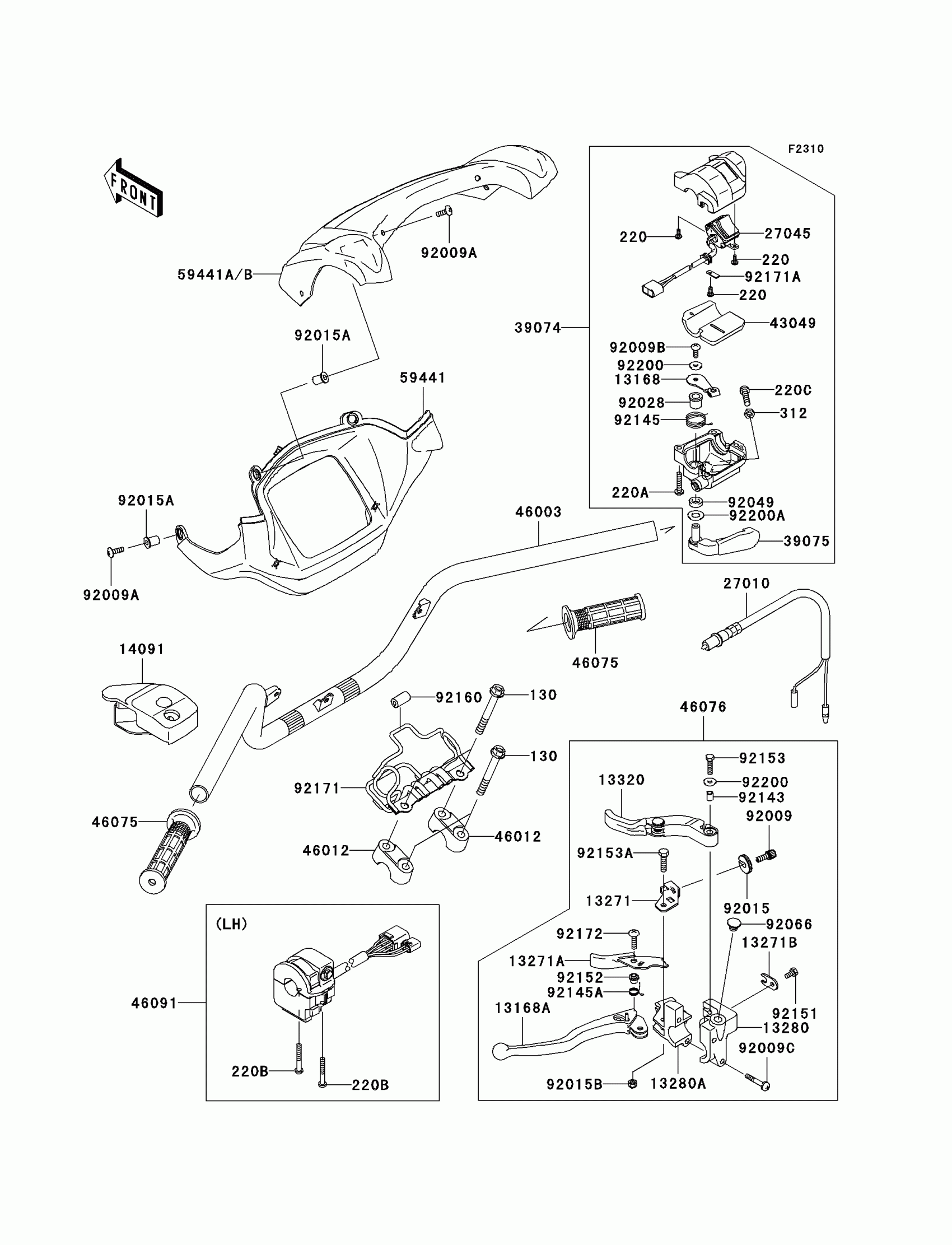

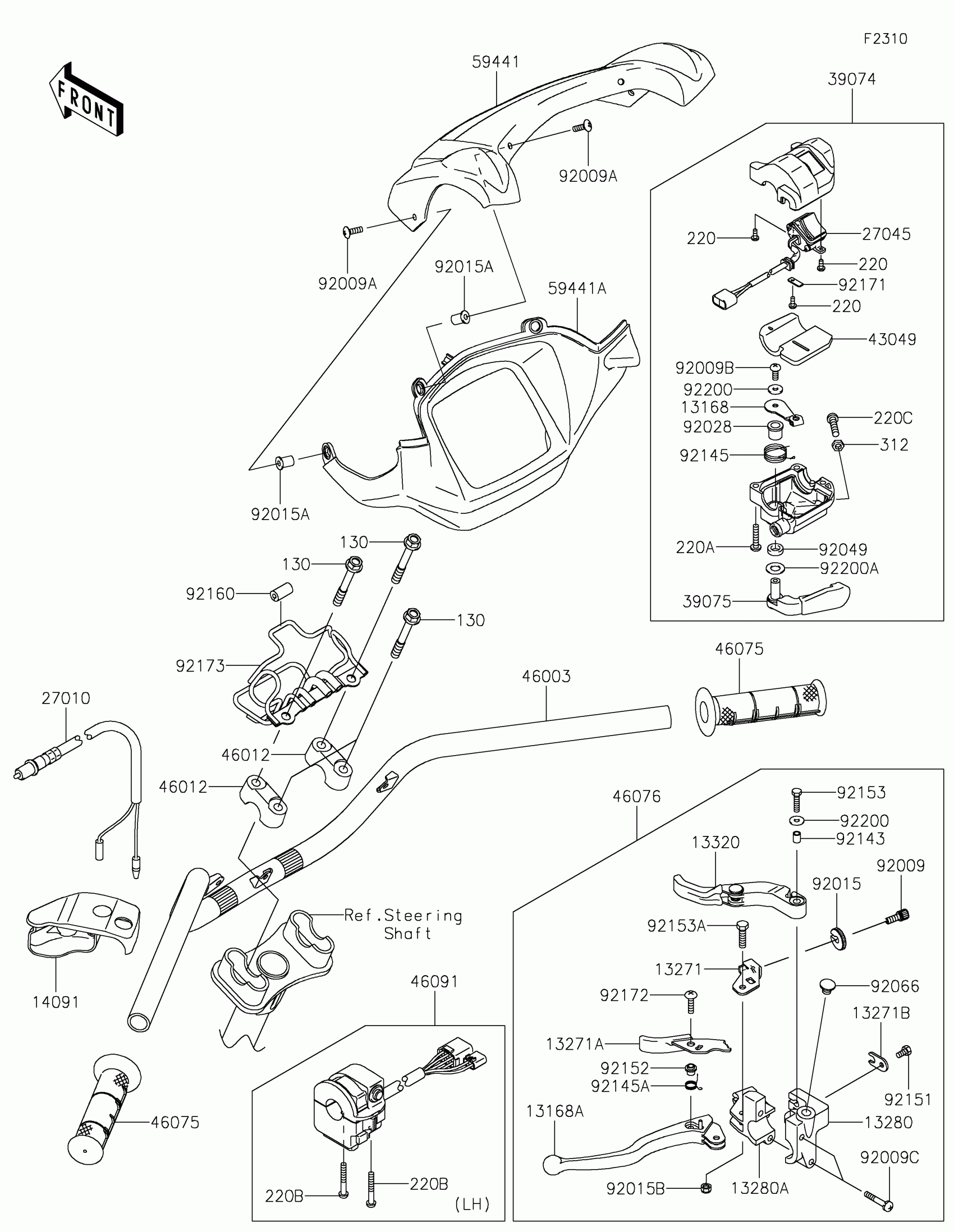

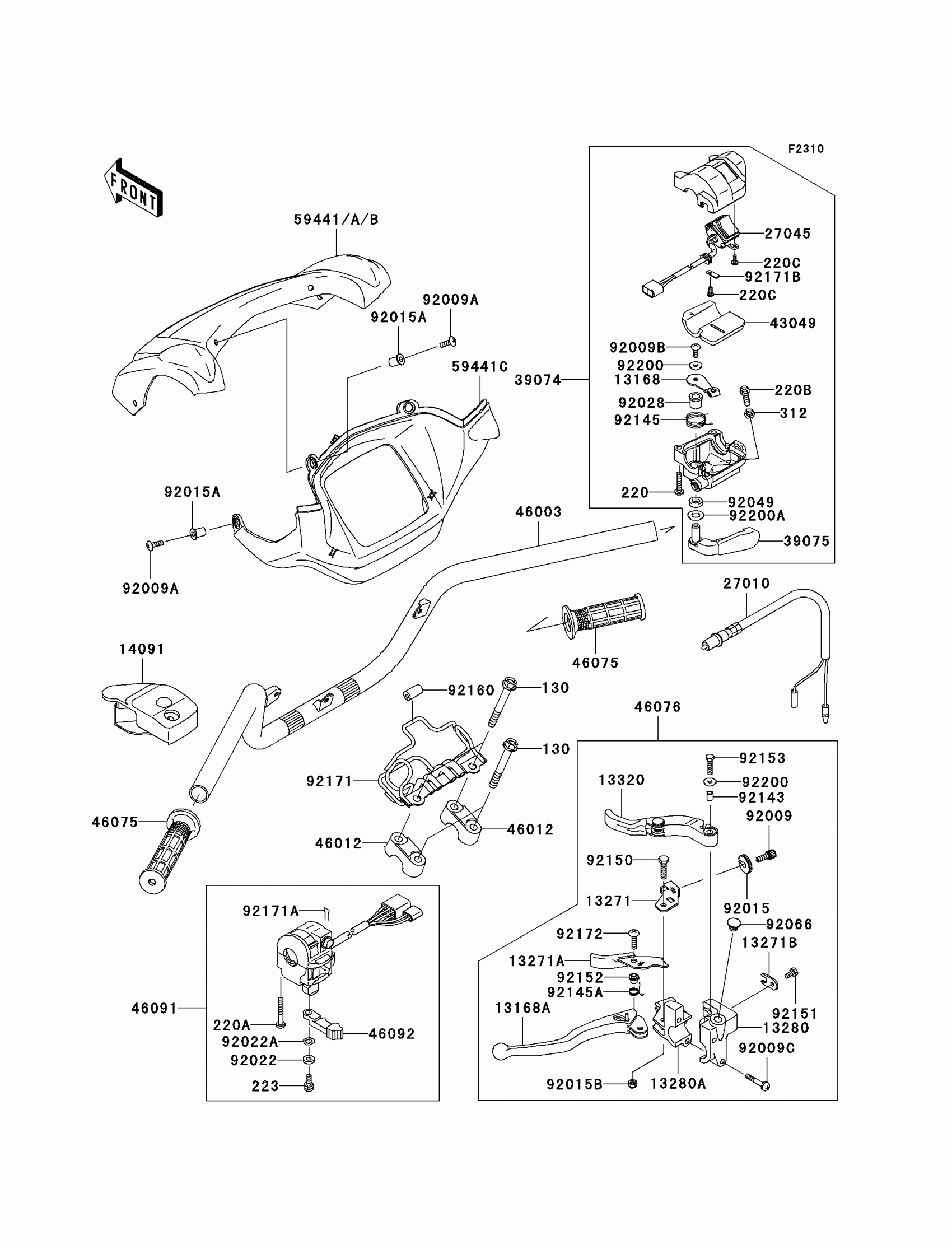

2005 Kawasaki Brute Force 750 4x4i Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER

13168-1715

1
Out of stock

13168A

LEVER,LH

13168-1736

1
Out of stock

13271

PLATE,LOCK

13271-1259

1

$16.64

In stock

13271A

PLATE,LEVER LOCK

13271-1635

1

$13.32

In stock

13271B

1

$3.75

In stock

13280

1

$28.99

In stock

13280A

HOLDER,LEVER,LH

13280-1227

1

$28.99

In stock

13320

1

$65.11

In stock

14091

COVER,DIFF LOCK LEVER

14091-1403

1
Out of stock

27010

SWITCH,BRAKE

27010-1294

1
Out of stock

27045

SWITCH-ASSY

27045-1081

1
Out of stock

39074

LEVER-ASSY-THROTTLE

39074-1062

1

$175.18

In stock

39075

LEVER-THROTTLE

39075-1062

1

$29.26

In stock

43049

PACKING

43049-1088

1
Out of stock

46003

HANDLE

46003-1580

1
Out of stock

46012

HOLDER-HANDLE

46012-1168

1

$15.44

In stock

46075

GRIP,HANDLE

46075-7501

1

$18.32

In stock

46076

1

$105.23

In stock

46091

HOUSING-ASSY-CONTROL,LH

46091-1847

1
Out of stock

46092

LEVER-GRIP,CHOKE

46092-1217

1
Out of stock

59441

COVER-HANDLE,FR,A.RED

59441-0005-260

1
Out of stock

59441A

COVER-HANDLE,FR,D.YELLOW

59441-0005-277

1
Out of stock

59441B

COVER-HANDLE,FR,H.GREEN

59441-0005-6A

1
Out of stock

59441C

COVER-HANDLE,RR,F.BLACK

59441-0006-6Z

1
Out of stock

92009

SCREW,CABLE ADJUST,8MM

92009-1435

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009B

SCREW

92009-1959

1
Out of stock

92009C

SCREW,6X30

92009-1961

1
Out of stock

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92015B

NUT

92015-1829

1
Out of stock

92022

WASHER,5MM

92022-1837

1
Out of stock

92022A

WASHER,WAVE,5MM

92022-1838

1
Out of stock

92028

BUSHING

92028-1986

1
Out of stock

92049

SEAL-OIL

92049-1578

1
Out of stock

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

1
Out of stock

92143

COLLAR

92143-1216

1
Out of stock

92145

SPRING

92145-1392

1
Out of stock

92145A

SPRING

92145-1429

1
Out of stock

92150

BOLT

92150-1420

1
Out of stock

130

BOLT-FLANGED,8X60

130P0860

1
Out of stock

220

SCREW-PAN-CROS,5X25

220C0525

1
Out of stock

220A

SCREW-PAN-CROS,5X35

220C0535

1
Out of stock

220B

SCREW-PAN-CROS,6X25,B

220C0625

1
Out of stock

220C

SCREW-PAN-CROSS

220D0308

1
Out of stock

223

SCREW-PAN-WS-CROS,5X12

223C0512

1
Out of stock

312

NUT-HEX,6MM,BLACK

312C0600

1
Out of stock

92151

BOLT,5X10

92151-1975

1
Out of stock

92152

COLLAR

92152-1176

1
Out of stock

92153

BOLT,5X20

92153-1129

1
Out of stock

92160

DAMPER,4.5X11X20

92160-1074

1
Out of stock

92171

CLAMP,BREATHER TUBE

92171-0378

1

$80.24

In stock

92171A

CLAMP,CLIP

92171-1095

1
Out of stock

92171B

CLAMP

92171-1344

1
Out of stock

92172

SCREW,5X20

92172-0078

1
Out of stock

92200

WASHER

92200-1558

1
Out of stock

92200A

WASHER

92200-1559

1
Out of stock
