2005 Kawasaki Brute Force 750 4x4i Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

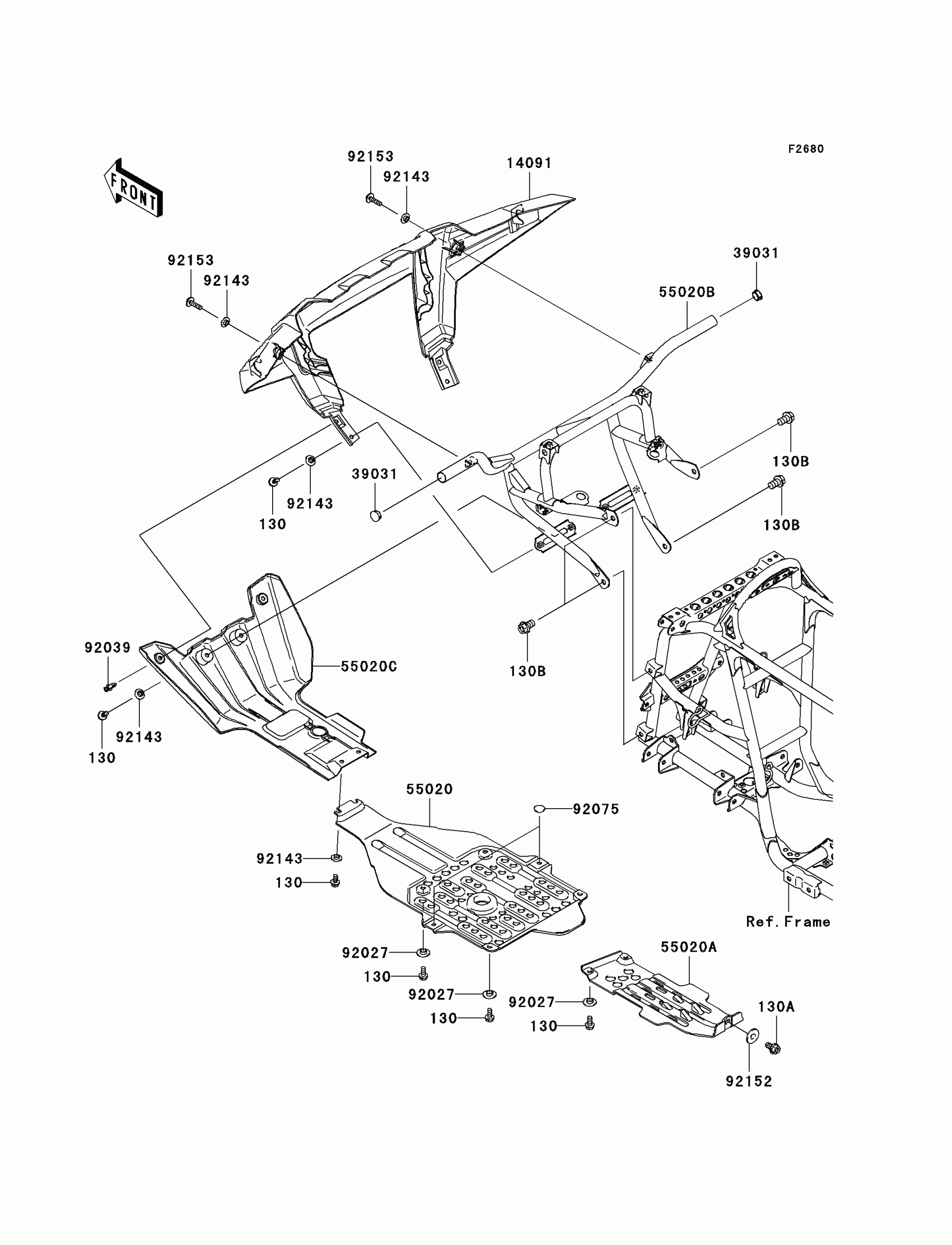

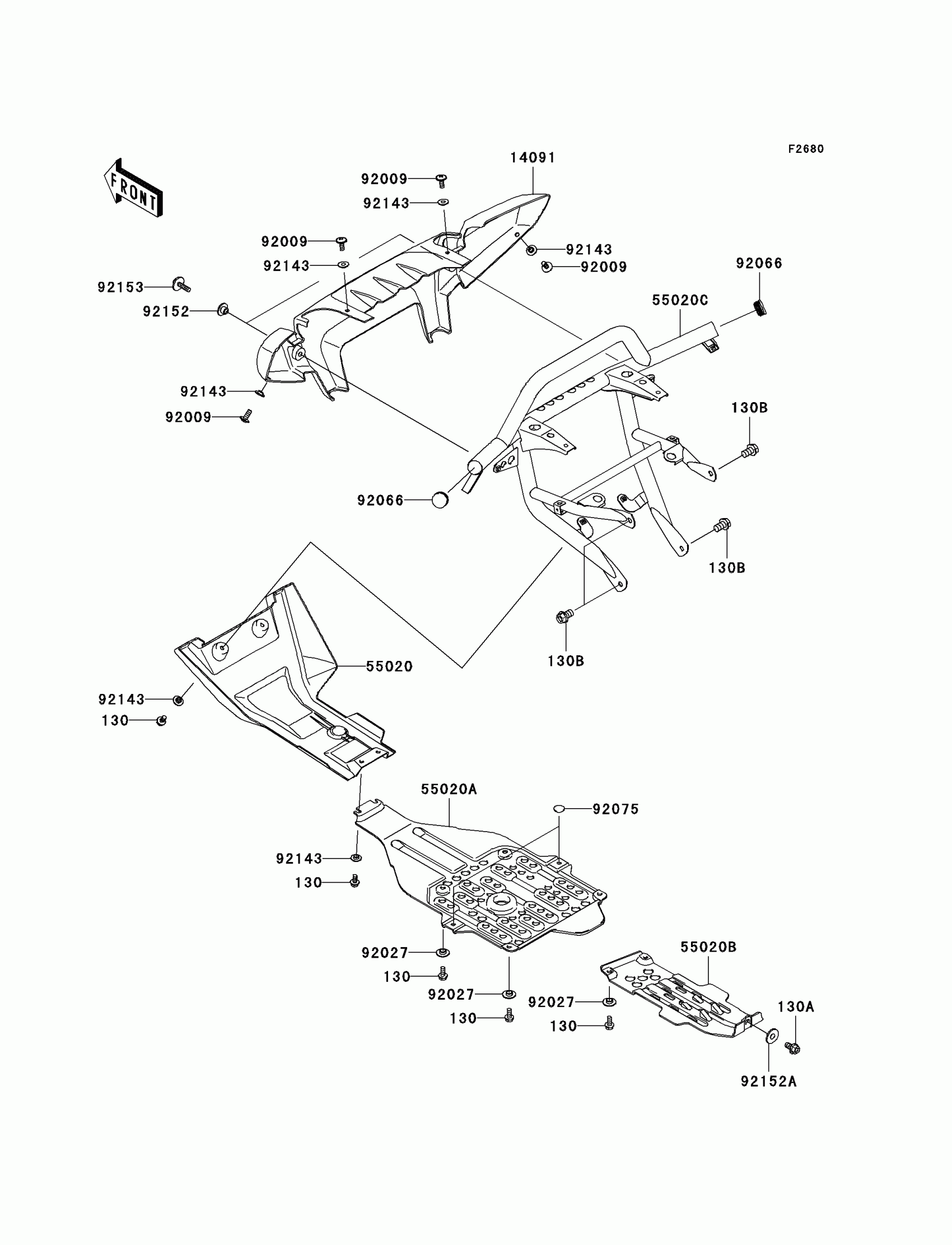

2005 Kawasaki Brute Force 750 4x4i Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130A

BOLT-FLANGED,8X14

130J0814

1
Out of stock

130B

BOLT-FLANGED,10X16

130J1016

1
Out of stock

14091

COVER,FRONT BUMPER,F.BLACK

14091-0291-6Z

1
Out of stock

55020

GUARD,FRONT SKID,F.BLACK

55020-0064-6Z

1

$51.51

In stock

55020A

GUARD,ENGINE

55020-0065

1

$46.05

In stock

55020B

GUARD,REAR GEAR BOX

55020-0105

1

$28.21

In stock

55020C

GUARD,FRONT,M.GRAYSTONE

55020-0149-379

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92027

COLLAR,L=4.7

92027-1964

1
Out of stock

92066

PLUG

92066-0035

1
Out of stock

92075

DAMPER,RUBBER

92075-261

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92152

COLLAR

92152-0181

1
Out of stock

92152A

COLLAR

92152-0198

1
Out of stock

92153

BOLT,SOCKET,6X22

92153-0665

1
Out of stock
