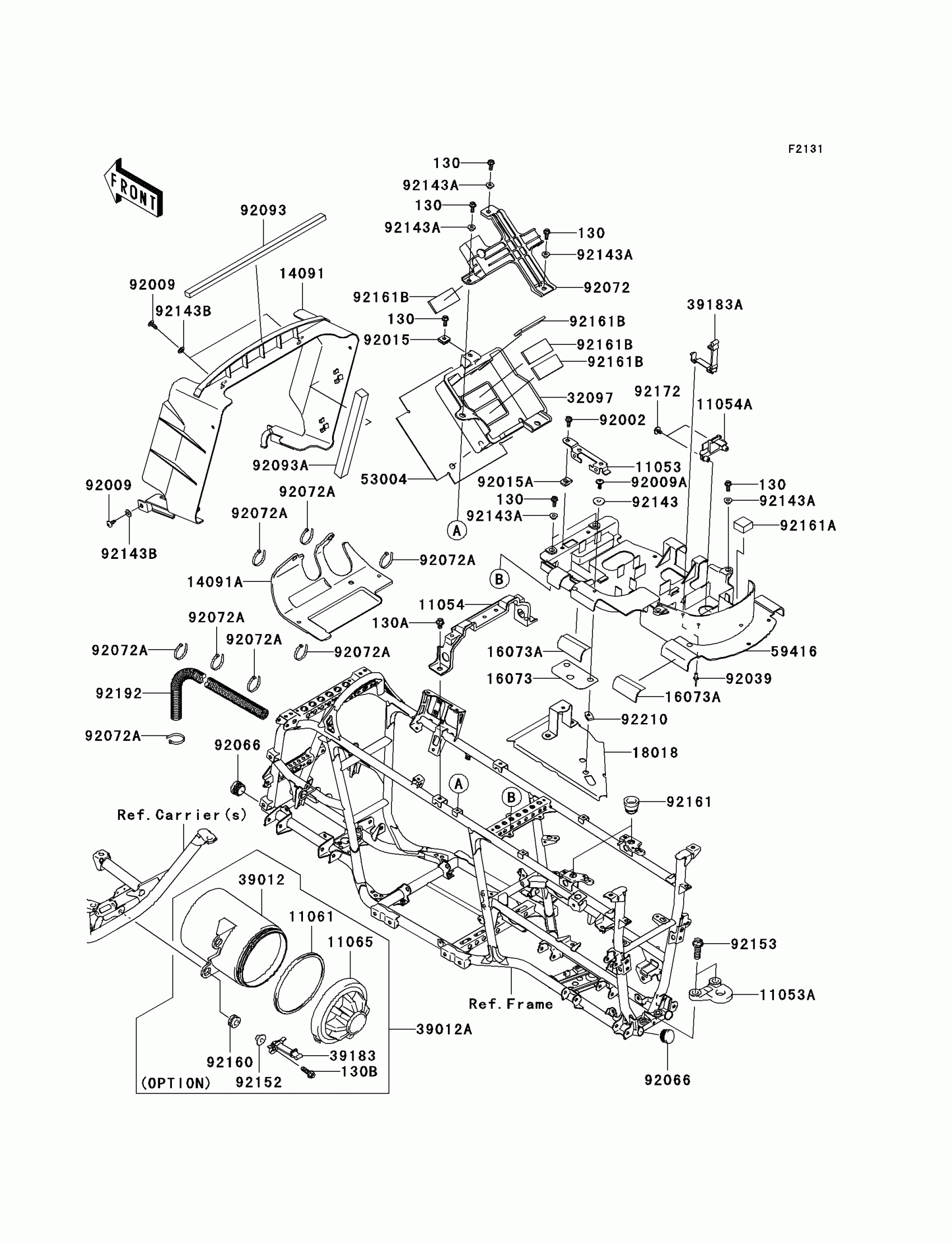

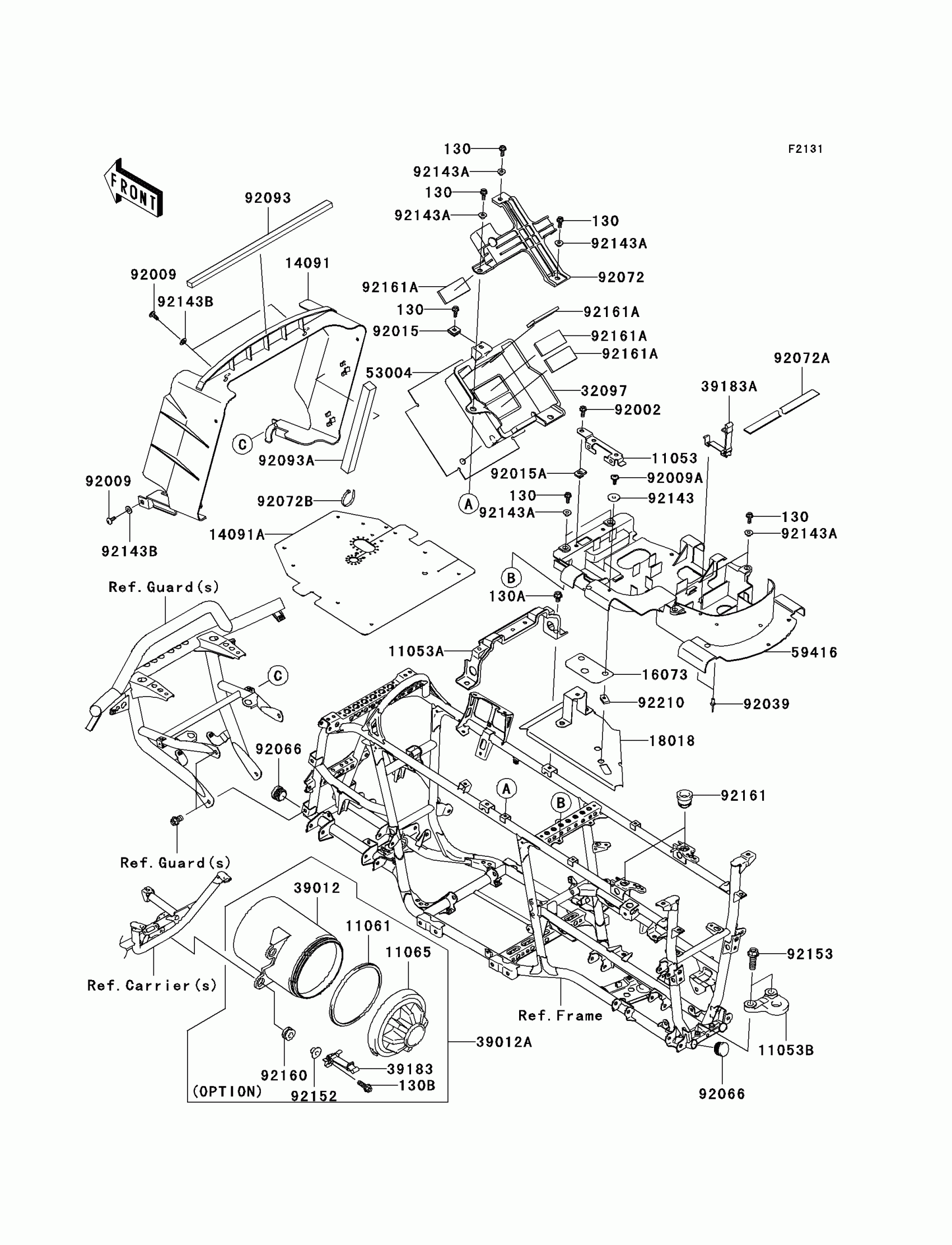

Kawasaki Brute Force 750 4x4i Frame Fittings Diagram

#

Description
Price

11053

BRACKET,FUSE ASSY

11053-0937

$8.97

11053A

BRACKET,SEAT&BATTERY BAND

11053-0969

Unavailable

11053B

BRACKET,TRAILER HITCH

11053-1638

$31.75

11061

GASKET,TOOL CASE

11061-0072

$2.19

11065

CAP,TOOL CASE

11065-0088

$9.63

14091

COVER,RADIATOR

14091-0338

$17.88

14091A

COVER,AIR CLEANER

14091-0339

$17.02

16073

INSULATOR,ELECTRIC CASE

16073-0018

$4.12

18018

PLATE-HEAT GUARD

18018-0003

$15.05

32097

CASE-BATTERY

32097-0009

$12.85

39012

CASE-STORAGE

39012-0005

$28.79

39012A

CASE-STORAGE,ASSY

39012-5013

$78.76

39183

BAND-ASSY,TOOL BAG

39183-0003

$9.58

39183A

BAND-ASSY,TOOL BAG

39183-1065

$9.17

53004

MAT,BATTERY CASE

53004-0002

$14.08

59416

CASE-ELECTRIC

59416-0004

$30.79

92002

BOLT,6X16

92002-1571

$4.17

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,6MM

92015-1094

$6.55

92015A

NUT,6MM

92015-1602

$5.61

92039

RIVET,4.8MM

92039-3719

$5.42

92066

PLUG

92066-0036

$1.52

92072

BAND,BATTERY

92072-0033

$5.29

92072A

BAND,MAGIC TAPE

92072-0040

$16.64

92072B

BAND,L=188

92072-1239

$1.30

92093

SEAL,L=408

92093-0024

$5.00

92093A

SEAL,L=250

92093-0028

$8.31

92143

COLLAR,L=6.5

92143-1025

$4.67

92143A

COLLAR

92143-1057

$3.81

92143B

COLLAR

92143-1087

$2.98

92152

COLLAR

92152-0155

$11.68

92153

BOLT,FLANGED,12X35

92153-0847

$8.03

92160

DAMPER,MUFFLER CONNECTOR

92160-1151

$16.15

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable

130B

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

92161

DAMPER

92161-0048

$4.77

92161A

DAMPER,30X70X5

92161-1127

$5.84

92210

NUT

92210-1331

$4.83
