2005 Kawasaki Brute Force 750 4x4i Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

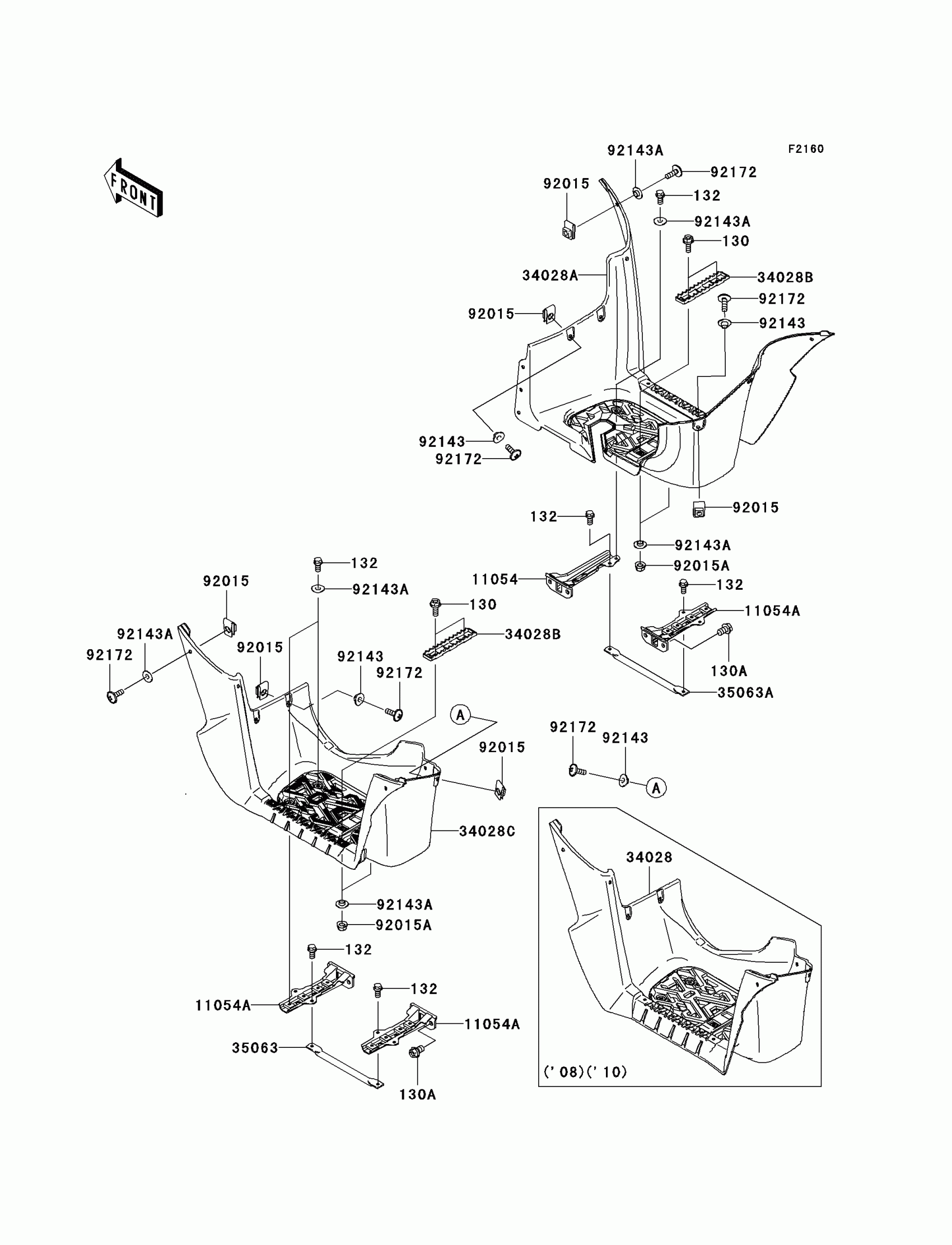

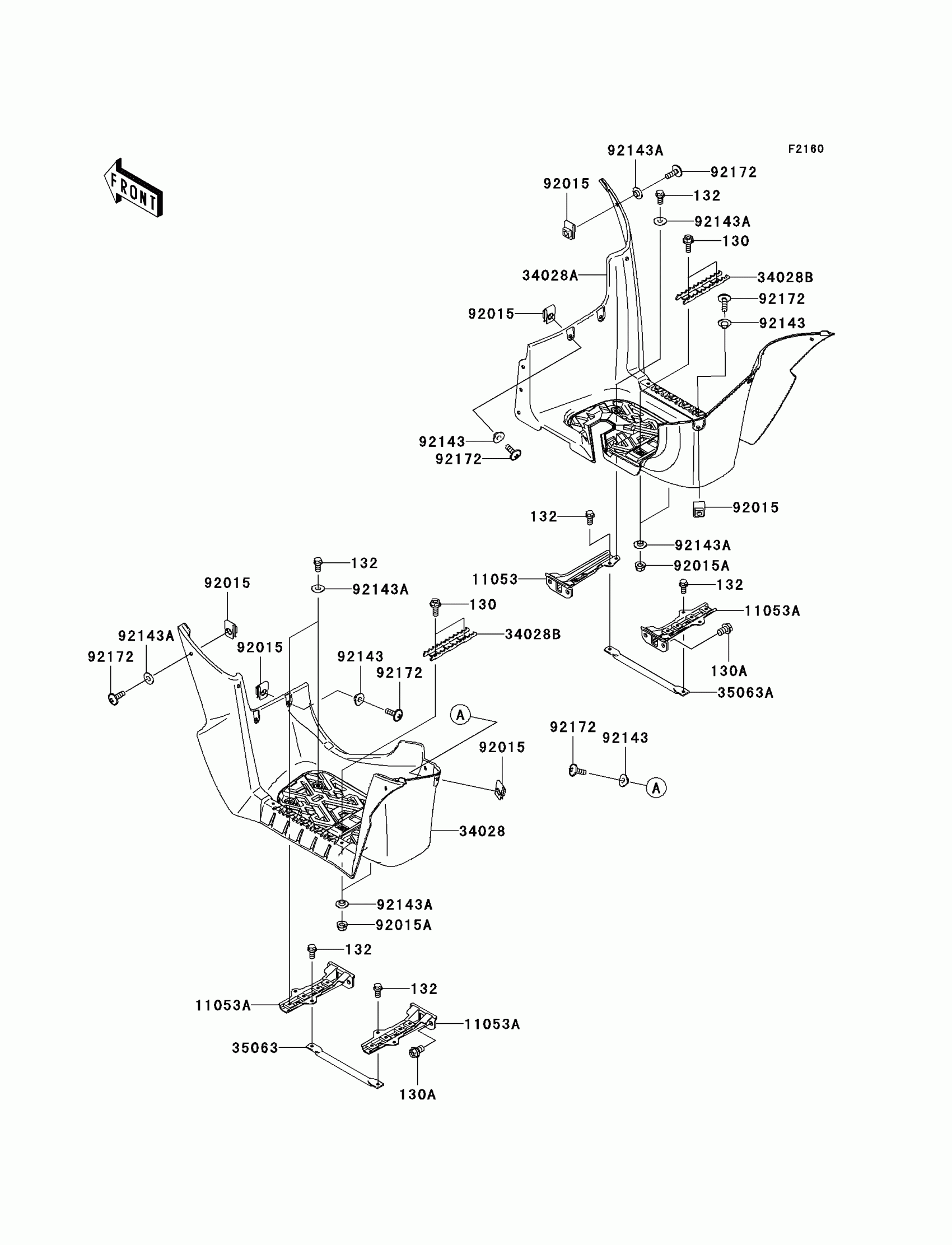

2005 Kawasaki Brute Force 750 4x4i Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,10X16

130J1016

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

11053

BRACKET,FOOT BOARD,RH

11053-0994

1
Out of stock

11053A

BRACKET,FOOT BOARD

11053-0996

1
Out of stock

34028

1

$59.61

In stock

34028A

1

$59.61

In stock

34028B

STEP,FOOT PEG,F.BLACK

34028-1487-21

1

$8.53

In stock

35063

STAY,STEP,LH

35063-0098

1
Out of stock

35063A

STAY,STEP,RH

35063-0099

1

$8.51

In stock

92015

NUT,6MM

92015-1602

1

$5.84

In stock

92015A

1

$3.72

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92143A

COLLAR

92143-1087

1

$3.11

In stock

92172

SCREW,6X18

92172-0002

1

$2.29

In stock
