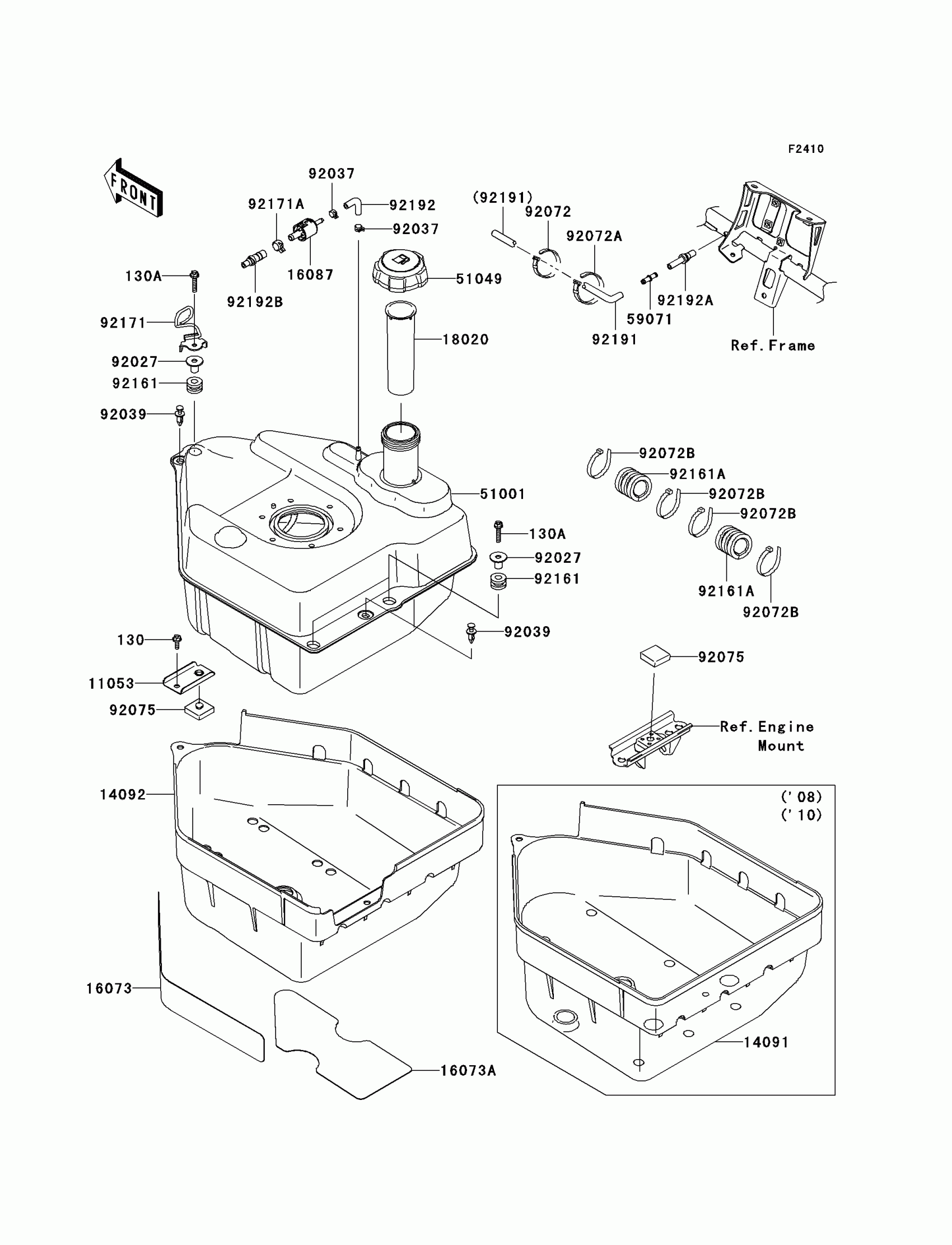

Kawasaki Brute Force 750 4x4i Fuel Tank Diagram

#

Description
Price

11053

BRACKET,FUEL TANK,TOP

11053-0936

$3.17

11053A

BRACKET,FUEL PUMP

11053-1247

$7.88

11061

GASKET,FUEL GAUGE

11061-0071

$19.29

14091

COVER,FUEL TANK,LWR

14091-0308

$42.07

16073

INSULATOR,FUEL TANK COVER,SIDE

16073-0016

$6.64

16073A

INSULATOR,FUEL TANK COVER,LWR

16073-0017

$7.92

16087

VALVE-CHECK

16087-0002

$43.67

18020

BAFFLE,FUEL TANK

18020-0008

$10.12

43049

PACKING

43049-1103

$4.33

51001

TANK-COMP-FUEL

51001-0058

Unavailable

51023

TAP-ASSY,FUEL

51023-0011

Unavailable

51049

CAP-TANK,FUEL

51049-1128

$70.13

52005

GAUGE,FUEL

52005-0011

$186.09

59071

JOINT

59071-3717

$3.07

92009

SCREW,3X5

92009-1123

$0.54

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92027

COLLAR,L=16.1

92027-1847

$4.67

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP,TUBE

92037-1505

$3.63

92039

RIVET

92039-1229

$0.80

92055

RING-O,FUEL TAP

92055-0054

$4.53

92055A

RING-O

92055-1664

$3.96

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=188

92072-1239

$1.30

92075

DAMPER

92075-1882

$6.18

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92153A

BOLT,6MM

92153-0824

$4.25

92161

DAMPER

92161-0106

$1.30

92161A

DAMPER,FUEL PUMP

92161-0125

$5.17

92161B

DAMPER,FUEL TANK,RR

92161-1111

$5.53

92170

CLAMP

92170-1492

$3.81

92171

CLAMP,FUEL TUBE

92171-0380

$11.18

92191

TUBE,CANISTER-SEPARATOR,BLUE

92191-1384

$14.90

130

BOLT-FLANGED,6X16

130G0616

Unavailable

130A

BOLT-FLANGED,6X30

130G0630

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$2.95

92192A

TUBE,FRAME PIPE-CHECK VALVE

92192-0068

$10.49

92192B

TUBE,FUEL

92192-0126

$5.92

92192C

TUBE,FRAME PIPE-CHECK VALVE

92192-0128

Unavailable
