2005 Kawasaki Brute Force 750 4x4i Carburetor Diagram

← All diagrams

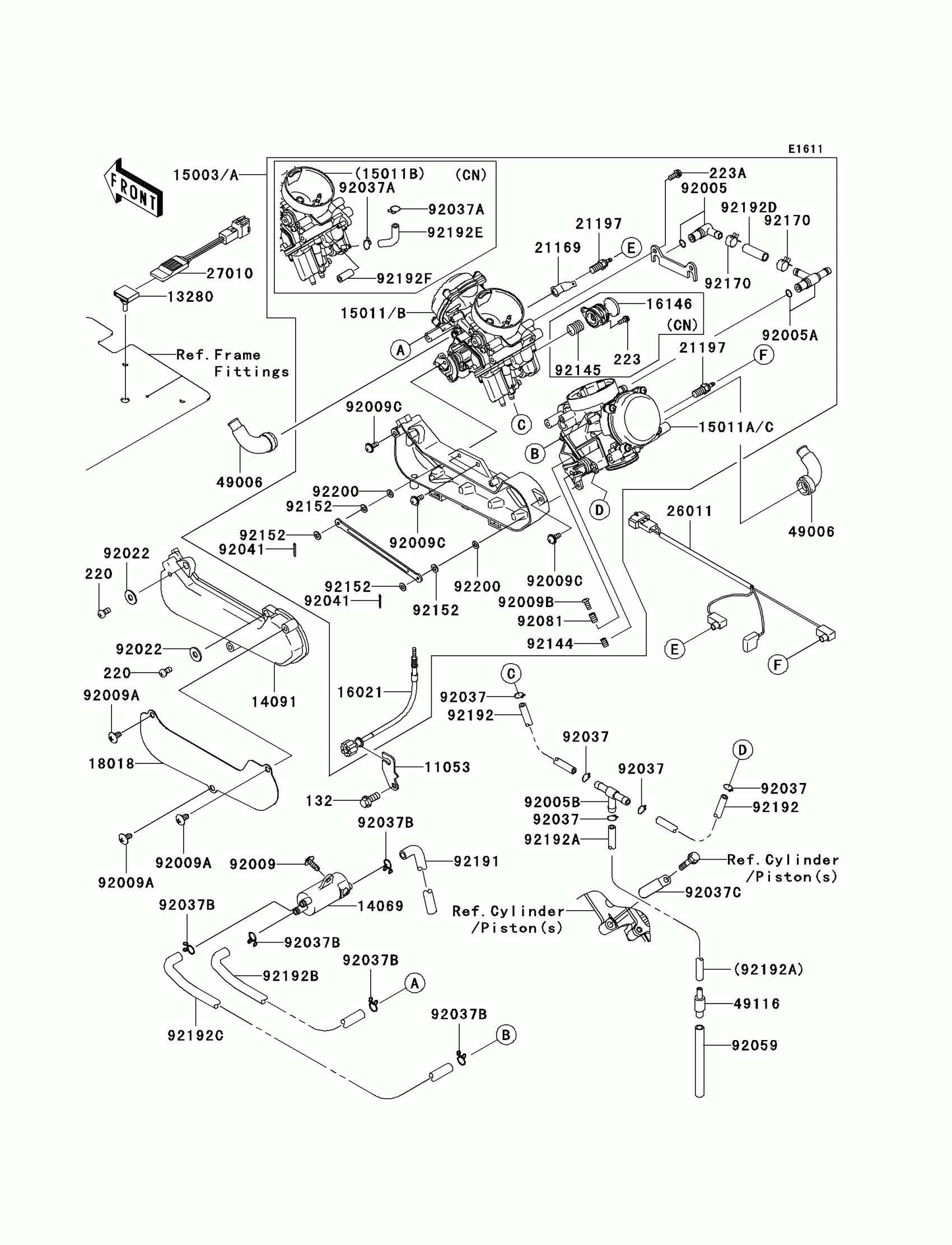

Find the part on the Carburetor diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 750 4x4i Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET

11053-1299

1

$4.25

In stock

13280

HOLDER,CARBURETOR

13280-1253

1

$3.88

In stock

14069

BREATHER

14069-0002

1

$18.36

In stock

14091

COVER

14091-0360

1

$6.31

In stock

16021

SCREW-THROTTLE STOP

16021-0011

1

$70.48

In stock

18018

PLATE-HEAT GUARD

18018-0004

1

$11.07

In stock

21169

TERMINAL

21169-0001

1

$2.25

In stock

21197

HEATER

21197-1006

1

$109.22

In stock

26011

WIRE-LEAD

26011-0030

1

$20.02

In stock

27010

SWITCH

27010-0013

1

$105.63

In stock

49006

BOOT

49006-0028

1

$4.98

In stock

49116

VALVE-ASSY

49116-1126

1

$19.26

In stock

92005

FITTING

92005-0029

1
Out of stock

92005A

FITTING

92005-0030

1
Out of stock

92005B

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92009

SCREW,TAPPING

92009-1113

1
Out of stock

92009A

SCREW,6X12

92009-1480

1
Out of stock

92009B

SCREW,SYNCHRONIZE

92009-1858

1
Out of stock

92009C

SCREW

92009-1878

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92037B

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037C

CLAMP,L=45

92037-1539

1

$4.42

In stock

92041

COTTER

92041-1061

1

$3.71

In stock

92059

TUBE,7X10X100

92059-1736

1

$3.54

In stock

132

BOLT-FLANGED-SMALL,6X14

132Y0614

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

223A

SCREW-PAN-WS-CROS

223D0514

1
Out of stock

92081

SPRING

92081-1620

1

$3.94

In stock

92144

SPRING

92144-1451

1

$9.29

In stock

92152

COLLAR

92152-0268

1

$1.77

In stock

92170

CLAMP,TUBE

92170-1051

1

$8.75

In stock

92191

TUBE,7X11X470

92191-1531

1

$7.14

In stock

92192

TUBE,4.5X8X120

92192-0141

1
Out of stock

92192A

TUBE,4.5X8X370

92192-0142

1
Out of stock

92192B

TUBE,7X11X320

92192-0143

1
Out of stock

92192C

TUBE,7X11X450

92192-0144

1
Out of stock

92192D

TUBE,7.3X12.5X45

92192-0187

1
Out of stock

92200

WASHER,LINK ARM,PLASTIC

92200-1432

1
Out of stock

15003

CARBURETOR-ASSY

15003-0087

1

$1,498.78

In stock

15003A

CARBURETOR-ASSY

15003-0088

1
Out of stock

15011

CARBURETOR,FR

15011-0088

1
Out of stock

15011A

CARBURETOR,RR

15011-0089

1
Out of stock

15011B

CARBURETOR,FR

15011-0090

1
Out of stock

15011C

CARBURETOR,RR

15011-0091

1
Out of stock

16146

COVER-ASSY,PRIMING

16146-1225

1

$52.90

In stock

92037A

CLAMP,TUBE

92037-1201

1

$3.65

In stock

223

1

$3.43

In stock

92145

SPRING,PRIMING

92145-1451

1

$7.76

In stock

92192E

TUBE,4.5X8.5X40

92192-0188

1
Out of stock

92192F

TUBE,4.5X8.5X20

92192-0189

1
Out of stock
