2005 Kawasaki Brute Force 750 4x4i Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

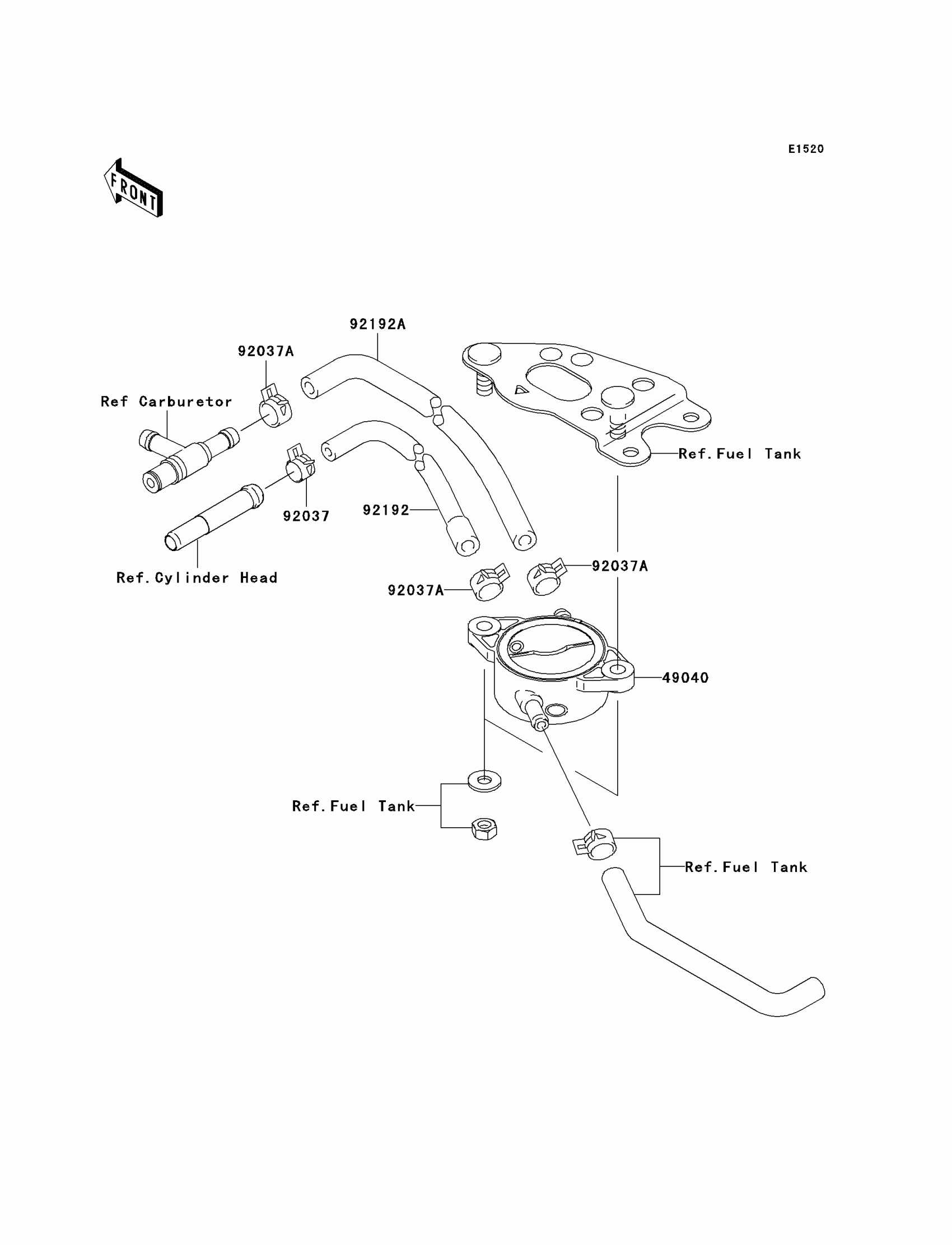

2005 Kawasaki Brute Force 750 4x4i Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49040

PUMP-FUEL

49040-0005

1
Out of stock

92037

CLAMP,TUBE

92037-1461

1
Out of stock

92037A

CLAMP,TUBE

92037-1505

1
Out of stock

92192

TUBE,L=510,BLUE STRIPE

92192-0060

1
Out of stock

92192A

TUBE,5.8X10.8X580

92192-0182

1
Out of stock
