2009 Kawasaki Brute Force® 750 4x4i Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2009 Kawasaki Brute Force® 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

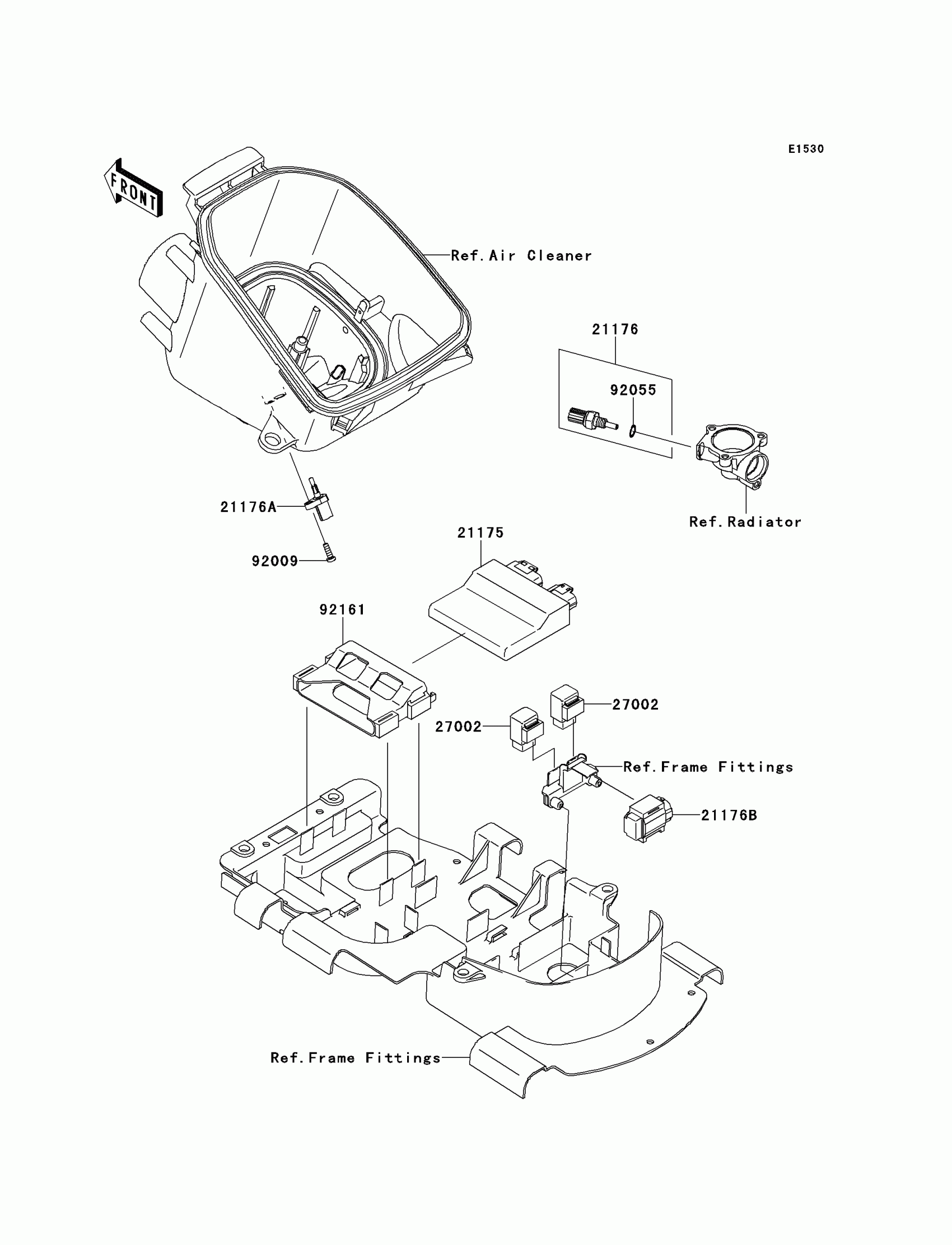

2009 Kawasaki Brute Force® 750 4x4i Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

1

$743.36

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

1

$24.07

In stock

21176B

SENSOR,VEHICLE-DOWN

21176-0066

1

$104.78

In stock

27002

RELAY-ASSY

27002-1062

1

$41.21

In stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER

92161-0465

1

$7.92

In stock
