2019 Kawasaki Brute Force® 750 4x4i Eps Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2019 Kawasaki Brute Force® 750 4x4i Eps, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

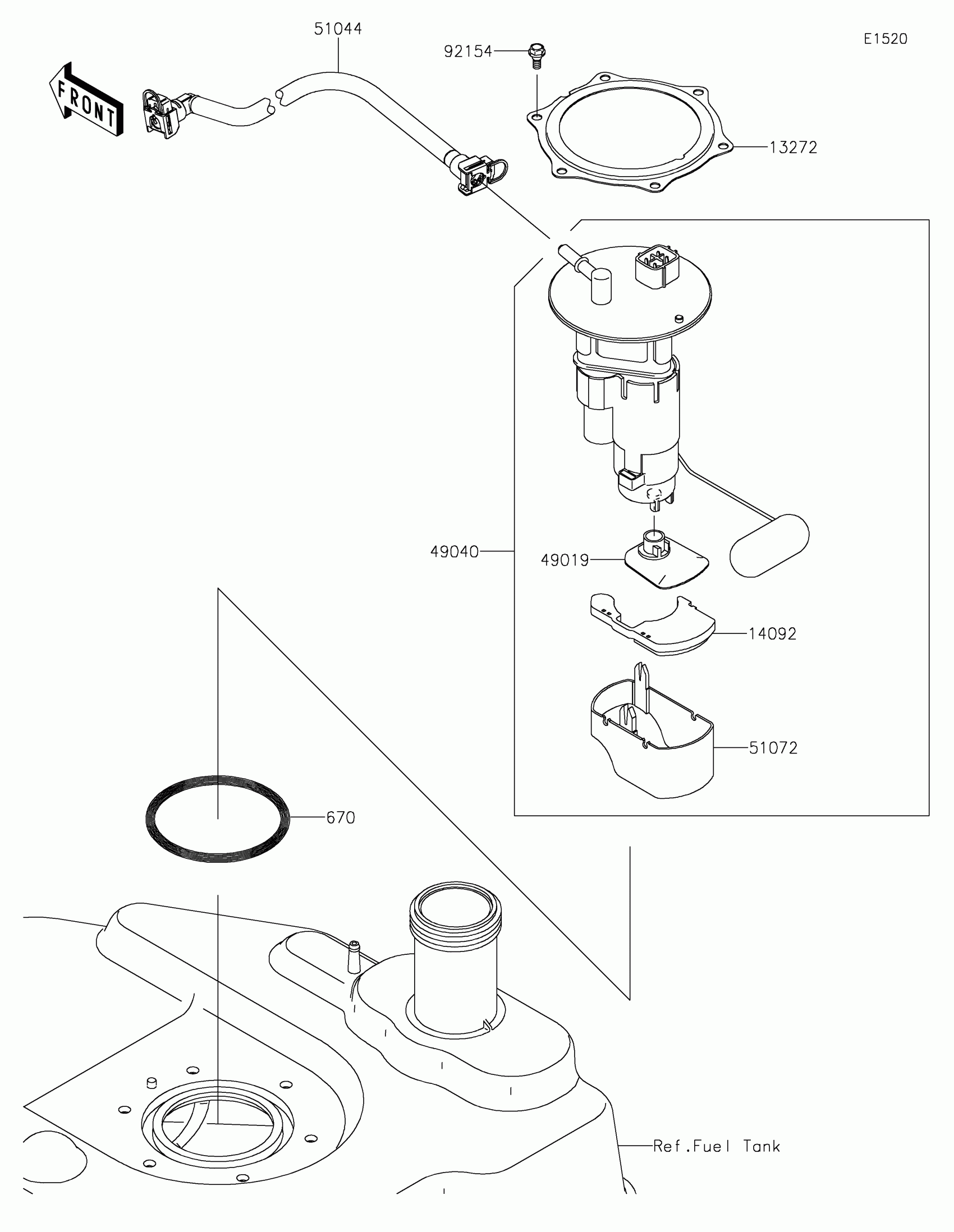

2019 Kawasaki Brute Force® 750 4x4i Eps Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE

13271-0980

1
Out of stock

14092

COVER

14092-1044

1
Out of stock

49019

FILTER-FUEL

49019-0013

1
Out of stock

49040

PUMP-FUEL

49040-0717

1
Out of stock

51044

TUBE-ASSY

51044-0812

1
Out of stock

51072

CHAMBER-FUEL

51072-0003

1
Out of stock

92151

BOLT,FLANGED,5X11.5

92151-1754

1
Out of stock

670

O RING

670E5090

1
Out of stock
