2013 Kawasaki Brute Force® 750 4x4i EPS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

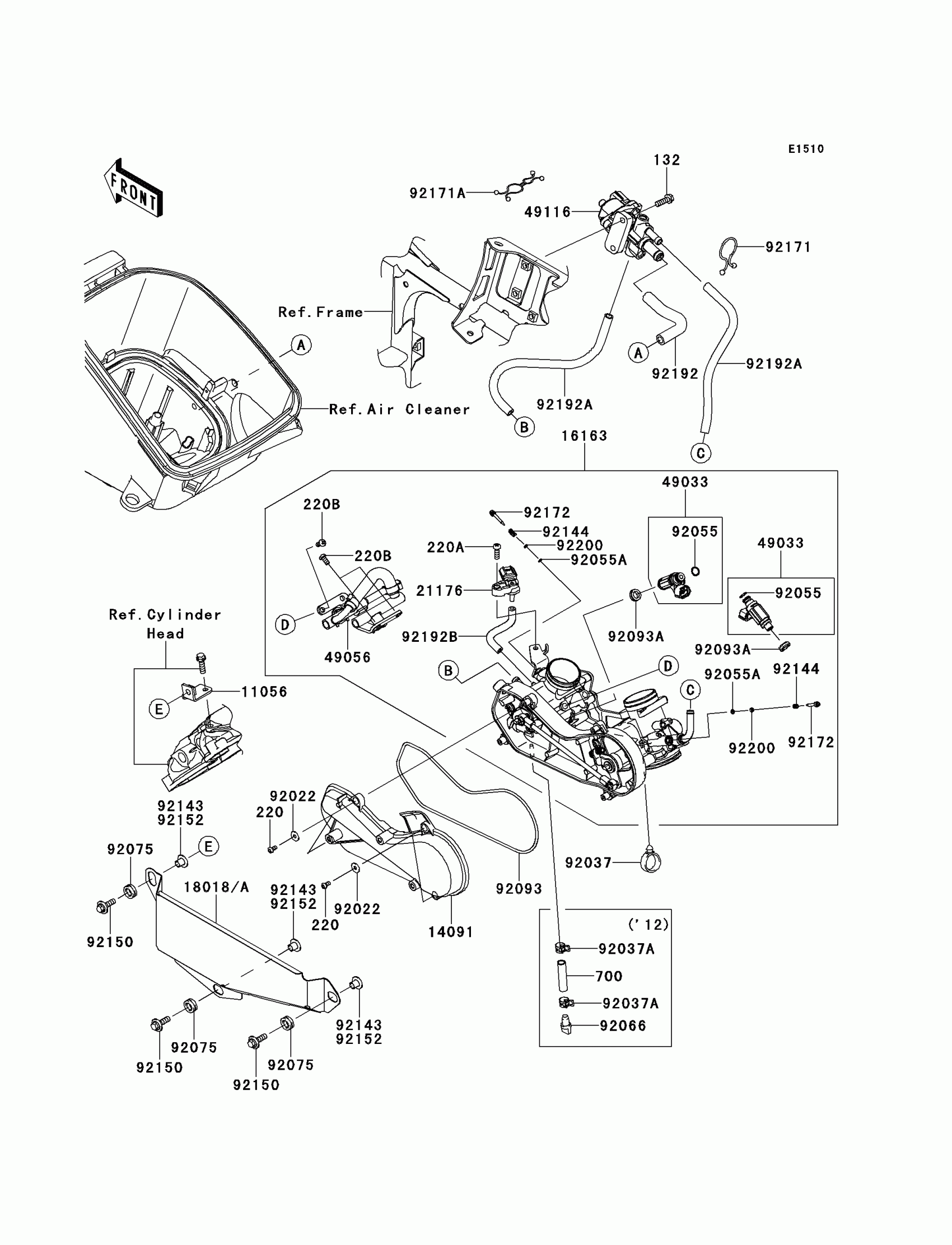

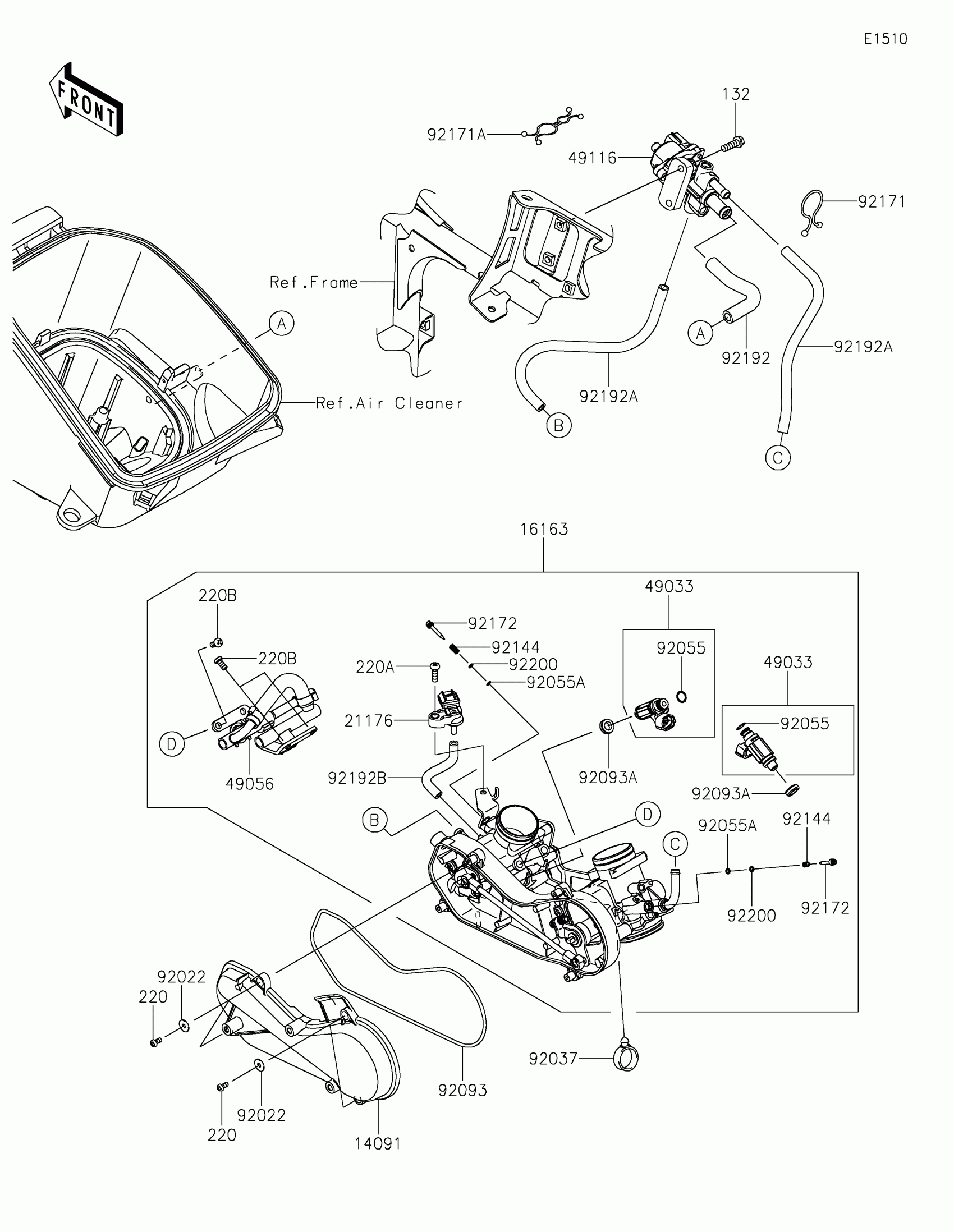

2013 Kawasaki Brute Force® 750 4x4i EPS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.10

In stock

220

SCREW-PAN-CROS,4X8

220AA0408

1
Out of stock

220A

SCREW-PAN-CROS,5X16

220AA0516

1
Out of stock

220B

SCREW-PAN-CROSS,6X12

220D0612

1
Out of stock

11056

BRACKET

11056-1026

1
Out of stock

14091

COVER,THROTTLE LINK

14091-1731

1
Out of stock

16163

THROTTLE-ASSY

16163-0786

1
Out of stock

18018A

PLATE-HEAT GUARD

18018-0033

1
Out of stock

21176

SENSOR,PRESSURE

21176-0111

1
Out of stock

49033

NOZZLE-INJECTION

49033-1060

1
Out of stock

49056

PIPE-INJECTION

49056-0034

1
Out of stock

49116

VALVE-ASSY,ISC

49116-0021

1
Out of stock

92022

WASHER,5.2X13X1

92022-1380

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92055A

RING-O,AIR SCREW

92055-1658

1
Out of stock

92075

DAMPER

92075-1947

1
Out of stock

92093

SEAL

92093-0082

1
Out of stock

92093A

SEAL

92093-0127

1
Out of stock

92144

SPRING,THROTTLE STOP SCREW

92144-1674

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1
Out of stock

92171

CLAMP

92171-1185

1
Out of stock

92171A

CLAMP

92171-1438

1
Out of stock

92172

SCREW

92172-0156

1
Out of stock

92192

TUBE

92192-0437

1
Out of stock

92192A

TUBE

92192-0439

1
Out of stock

92192B

TUBE

92192-0914

1
Out of stock

92200

WASHER,PILOT AIR SCREW

92200-1564

1
Out of stock
