Partiron

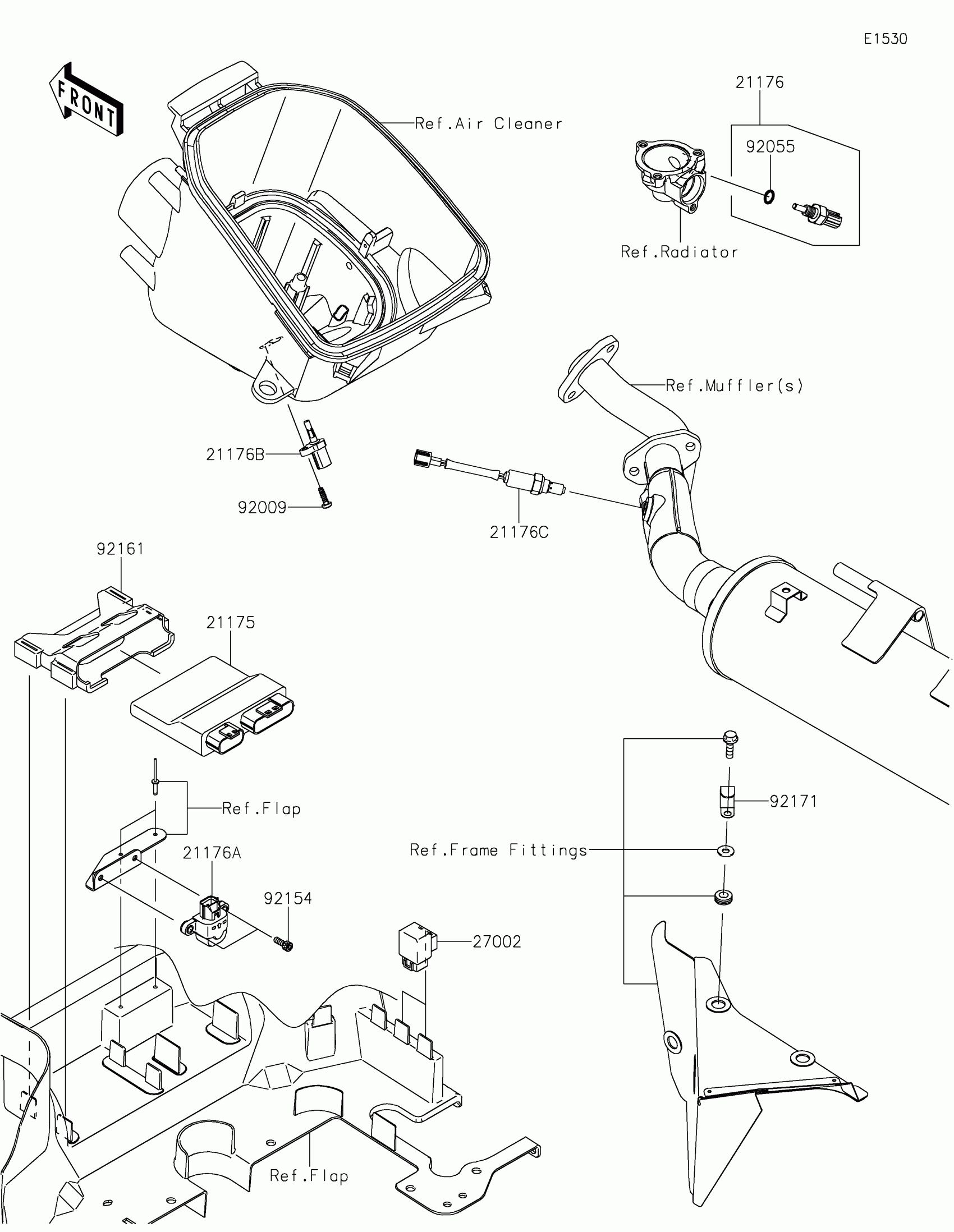

Kawasaki BRUTE FORCE® 750 4x4i EPS Fuel Injection Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC

21175-0338

$710.28

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

27002

RELAY-ASSY

27002-1062

$40.25

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92153

BOLT,SOCKET,5X14

92153-1286

$1.20

92161

DAMPER

92161-0465

$7.92
