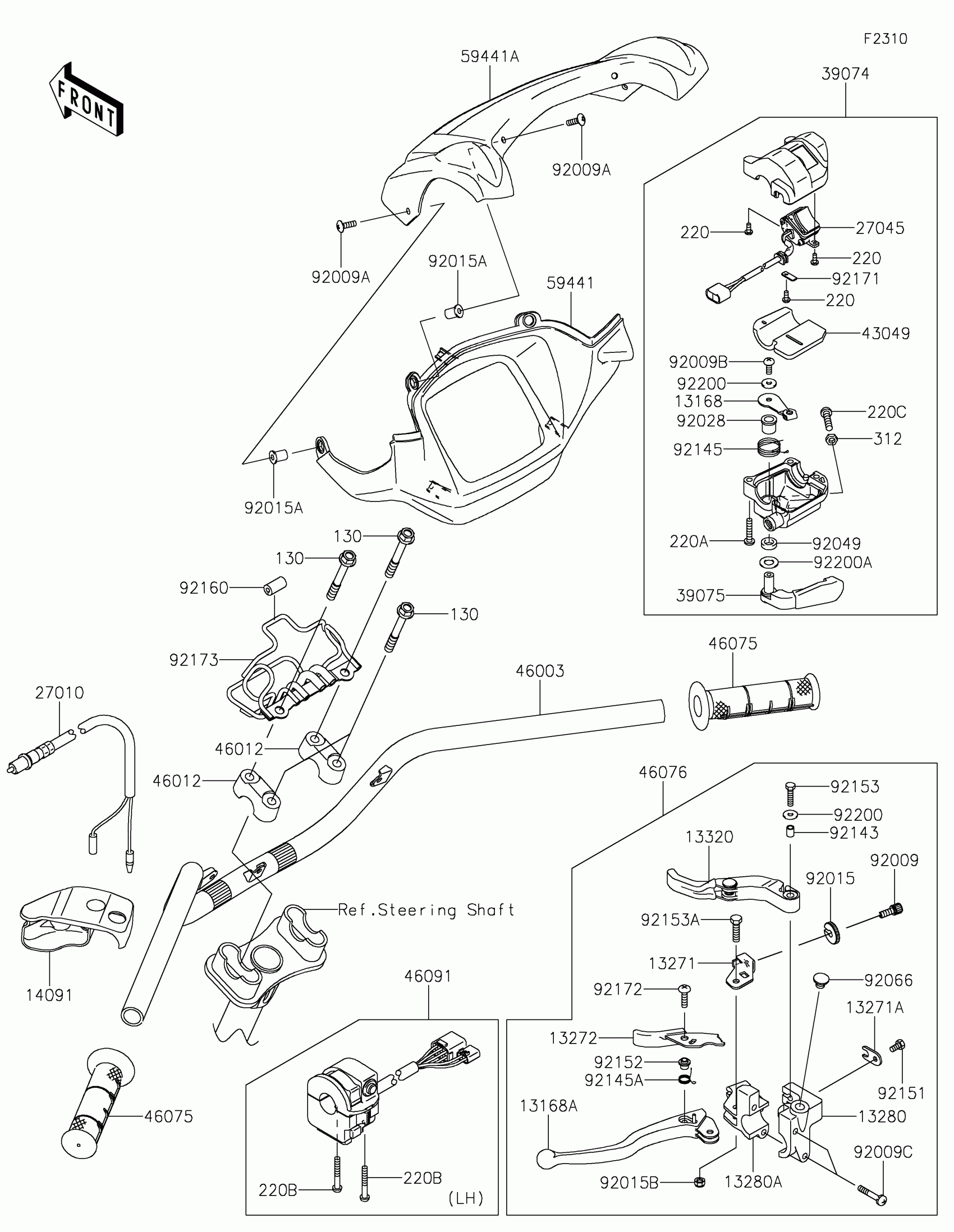

Kawasaki BRUTE FORCE® 750 4x4i EPS CAMO Handlebar Diagram

#

Description
Price

13168

LEVER

13168-1715

$8.37

13168A

LEVER,LH

13168-1736

$25.19

13271

PLATE,LOCK

13271-1259

$16.64

13271A

PLATE,LEVER LOCK

13271-1635

$13.32

13271B

PLATE,WIRE OUTER STOPPER

13271-1636

$3.75

13280

HOLDER,DIFF LOCK LEVER

13280-1226

$28.99

13280A

HOLDER,LEVER,LH

13280-1227

$28.99

13320

LEVER-ASSY,DIFF LOCK

13320-1018

$65.11

14091

COVER,DIFF LOCK LEVER

14091-1403

$17.03

27010

SWITCH,BRAKE

27010-1294

$35.85

27045

SWITCH-ASSY

27045-0010

$31.16

39074

LEVER-ASSY-THROTTLE

39074-0002

$163.93

39075

LEVER-THROTTLE

39075-1062

$29.26

43049

PACKING

43049-1088

$10.63

46003

HANDLE

46003-1580

$67.22

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-0065

$26.99

46076

LEVER-ASSY-GRIP,DIFF LOCK

46076-1238

$105.23

46091

HOUSING-ASSY-CONTROL

46091-0243

$194.06

59441

COVER-HANDLE,RR,F.BLACK

59441-0006-6Z

$21.12

59441A

COVER-HANDLE,FR,CAMOUFLAGE

59441-0015-42H

$61.80

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92009A

SCREW,5X16,BLACK

92009-1654

$2.17

92009B

SCREW

92009-1959

$1.73

92009C

SCREW,6X30

92009-1961

$1.98

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015A

NUT,WELL,5MM

92015-1757

$5.58

92015B

NUT

92015-1829

$3.12

92028

BUSHING

92028-1986

$3.15

92049

SEAL-OIL

92049-1578

$3.55

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92143

COLLAR

92143-1216

$5.54

92145

SPRING

92145-1392

$3.25

92145A

SPRING

92145-1429

$7.46

92151

BOLT,5X10

92151-1975

$2.00

92152

COLLAR

92152-1176

$3.85

92153

BOLT,5X20

92153-1129

$2.63

92153A

BOLT

92153-1919

$16.19

92160

DAMPER,4.5X11X20

92160-1074

$7.36

92171

CLAMP

92171-1344

$2.00

92172

SCREW,5X20

92172-0078

$1.98

92173

CLAMP

92173-0741

$85.90

92200

WASHER

92200-1558

$4.42

92200A

WASHER

92200-1559

$4.42

130

BOLT-FLANGED,8X60

130CA0860

$1.28

220

SCREW-PAN-CROS,3X8

220AA0308

$0.54

220A

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220B

SCREW-PAN-CROS,5X35

220AB0535

$1.49

220C

SCREW-PAN-CROS,6X25

220AB0625

$2.63

312

NUT-HEX,6MM,BLACK

312AB0600

$3.04
