2019 Kawasaki Brute Force® 750 4x4i Eps Camo Control Diagram

← All diagrams

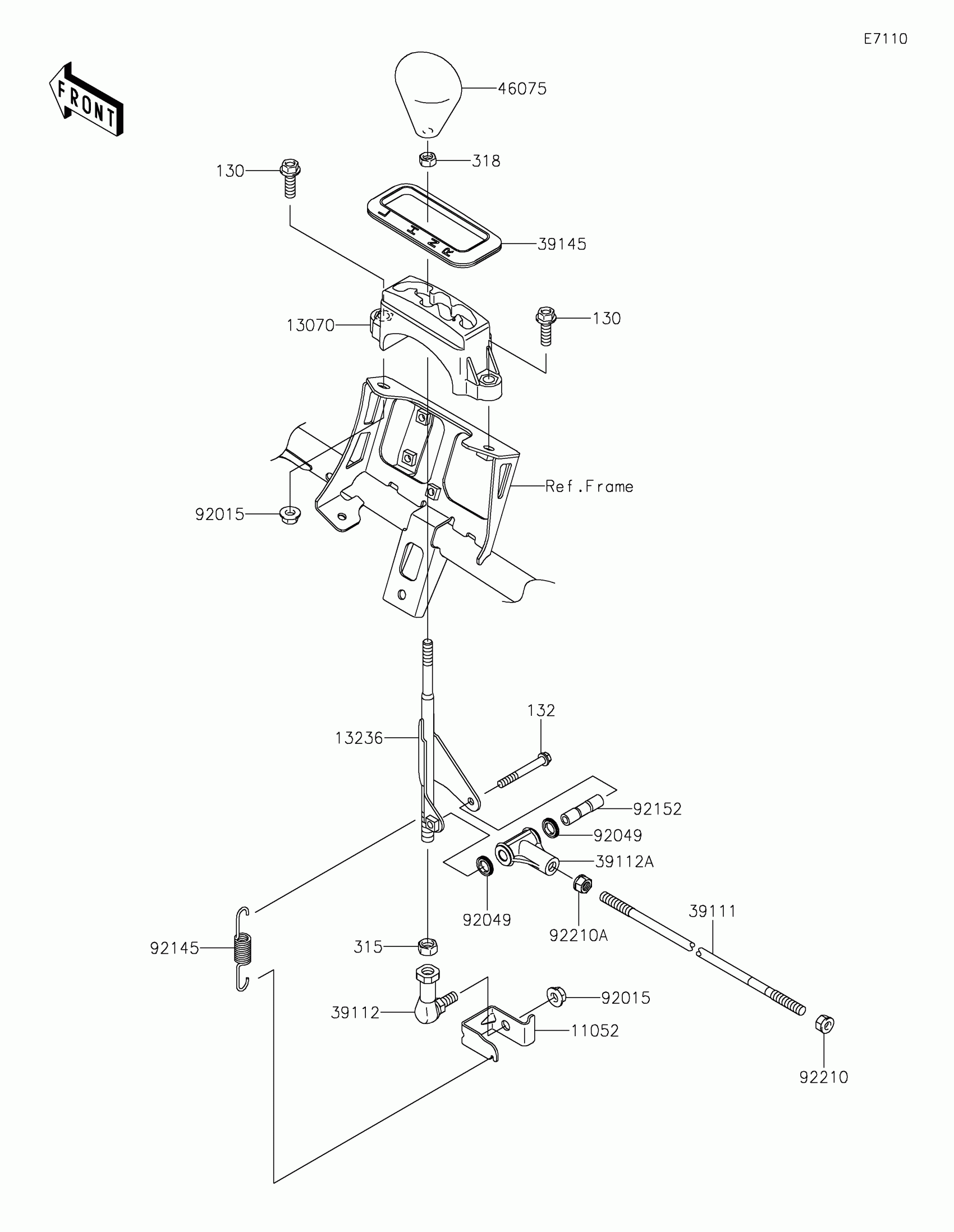

Find the part on the Control diagram for your 2019 Kawasaki Brute Force® 750 4x4i Eps Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki Brute Force® 750 4x4i Eps Camo Control Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,CONTROL

11052-1476

1

$5.39

In stock

13070

GUIDE,CONTROL SHAFT

13070-1396

1

$47.70

In stock

13236

LEVER-COMP,SHIFT

13236-0034

1

$35.20

In stock

39111

ROD-TIE,SHIFT

39111-1174

1

$20.88

In stock

39112

1

$32.00

In stock

39112A

RODEND-TIE

39112-1079

1

$25.83

In stock

39145

1

$4.46

In stock

46075

GRIP,SHIFT

46075-0046

1

$27.63

In stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92049

SEAL-OIL

92049-1458

1
Out of stock

92145

SPRING

92145-0130

1

$4.07

In stock

92152

COLLAR,RODEND-TIE

92152-1222

1

$8.19

In stock

92210

NUT,8MM

92210-1242

1
Out of stock

92210A

NUT,LH,THREAD 8MM

92210-1284

1
Out of stock

130

BOLT-FLANGED,8X25

130CD0825

1

$2.20

In stock

132

1

$4.24

In stock

315

NUT-HEX-FINE,10MM

315AA1000

1

$0.63

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1

$1.20

In stock
