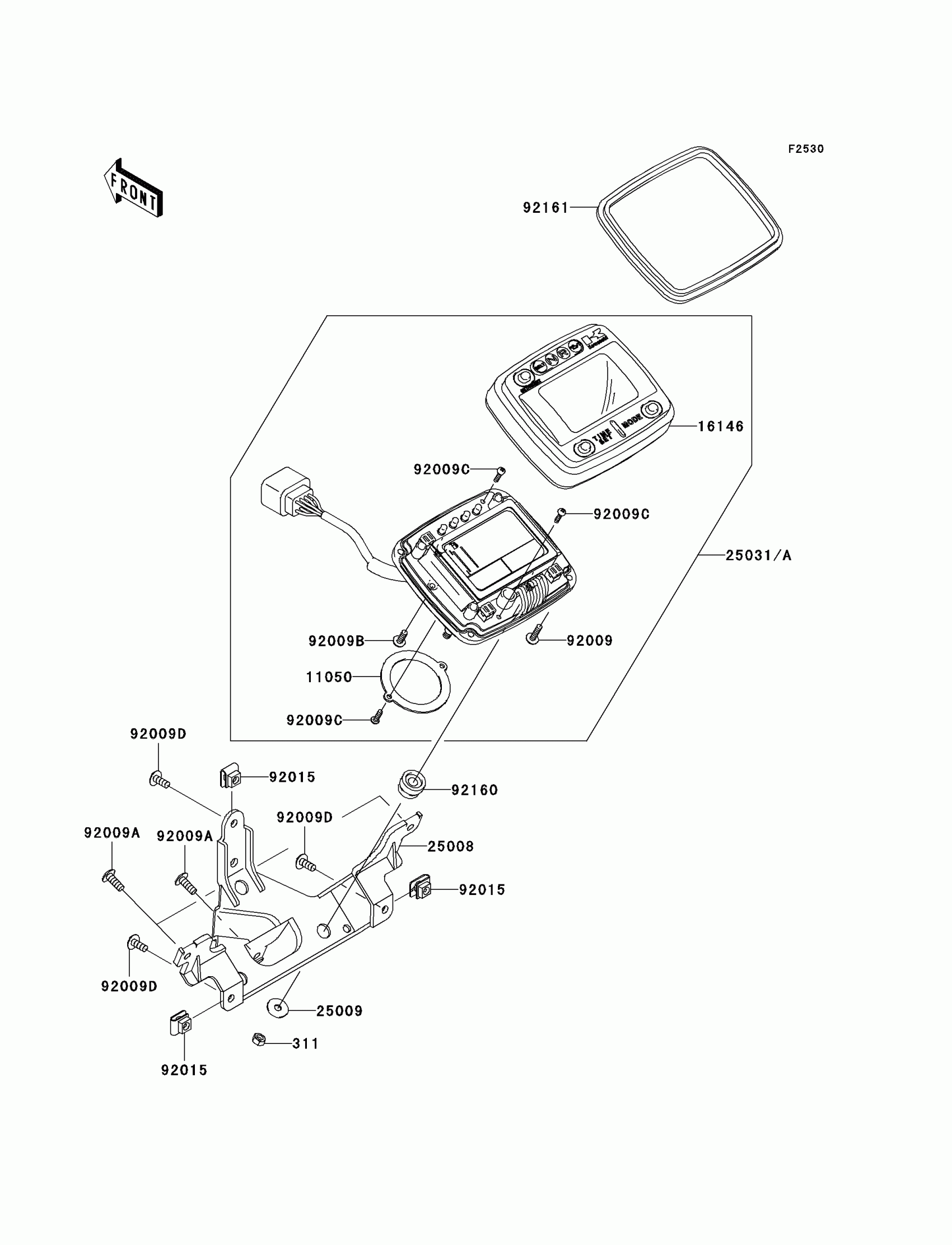

Kawasaki Brute Force 650 4x4i (Canada Only) Meter(s) Diagram

Description

Price

311

NUT-HEX,5MM

311AB0500

$0.46

11050

BRACKET,METER

11050-1932

$7.56

16146

COVER-ASSY,UPPER

16146-0011

$162.01

25008

BRACKET-METER

25008-0003

Unavailable

25009

WASHER,5.2X16X1.2

25009-004

$2.88

25031A

METER-ASSY,KPH

25031-0057

$989.06

92009

SCREW,TAPPING,4X16

92009-1163

$3.13

92009A

SCREW,TAPPING,5X14

92009-1197

$2.99

92009B

SCREW,TAPPING,4X12

92009-1254

$3.68

92009C

SCREW,3X12

92009-1326

$3.20

92009D

SCREW,5X12

92009-1652

$3.03

92015

NUT,5MM

92015-1573

$4.97

92160

DAMPER

92160-1460

$4.32

92161

DAMPER,METER,UPP

92161-1114

$3.69
