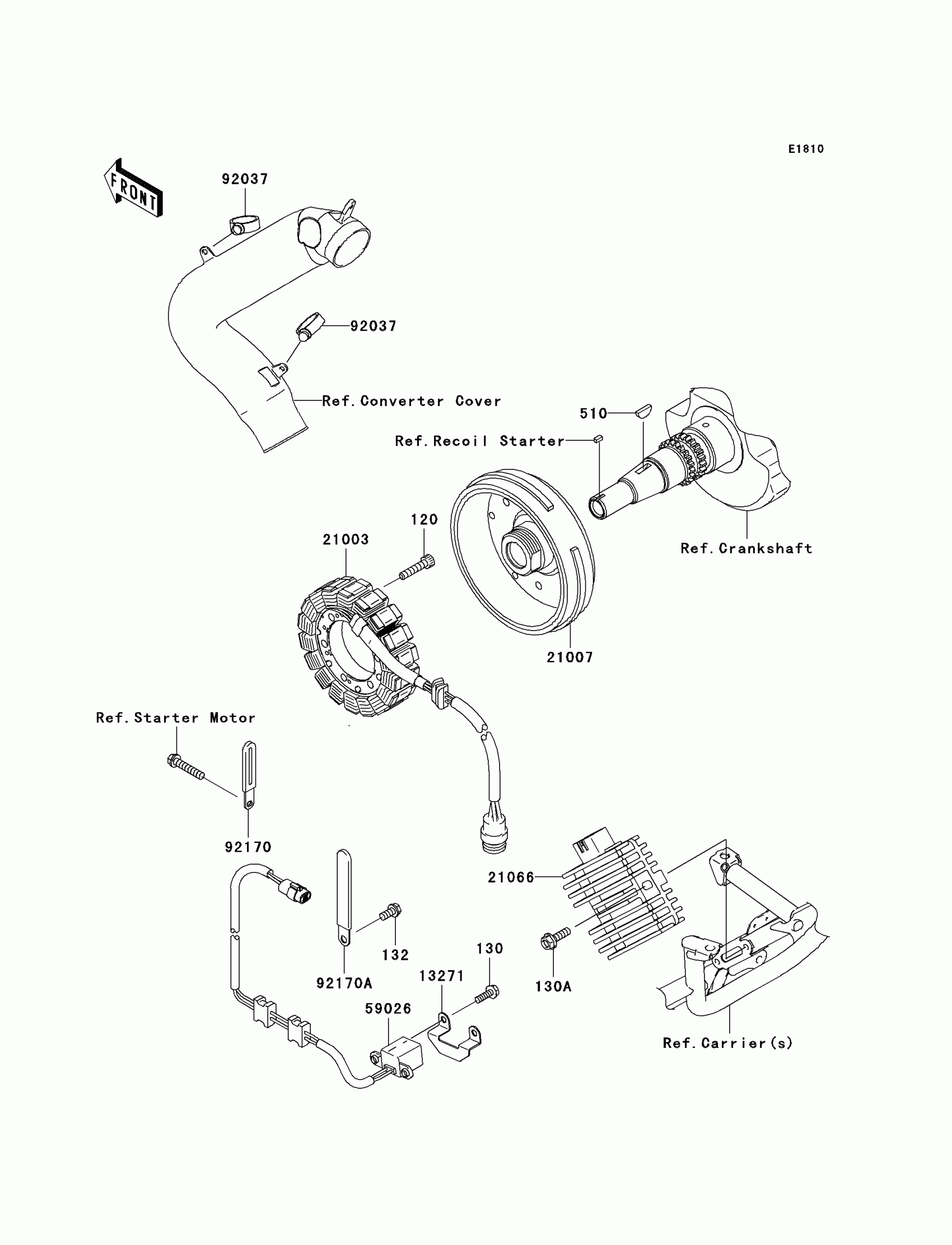

Kawasaki Brute Force 650 4x4i (Canada Only) Generator Diagram

Description

Price

120

BOLT-SOCKET,6X28

120CA0628

$4.42

130

BOLT-FLANGED,5X16

130BA0516

$0.73

130A

BOLT-FLANGED,6X20

130BB0620

$0.47

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.49

510

KEY-WOODRUFF

510A4200

$2.04

13271

PLATE

13271-1369

$2.37

21003

STATOR

21003-0012

$575.34

21007

ROTOR

21007-0013

$613.79

21066

REGULATOR-VOLTAGE

21066-0030

$203.63

59026

COIL-PULSING

59026-0005

$96.47

92037

CLAMP,HOSE

92037-1827

$5.69

92170

CLAMP

92170-1514

$3.29

92170A

CLAMP

92170-1925

$1.98
