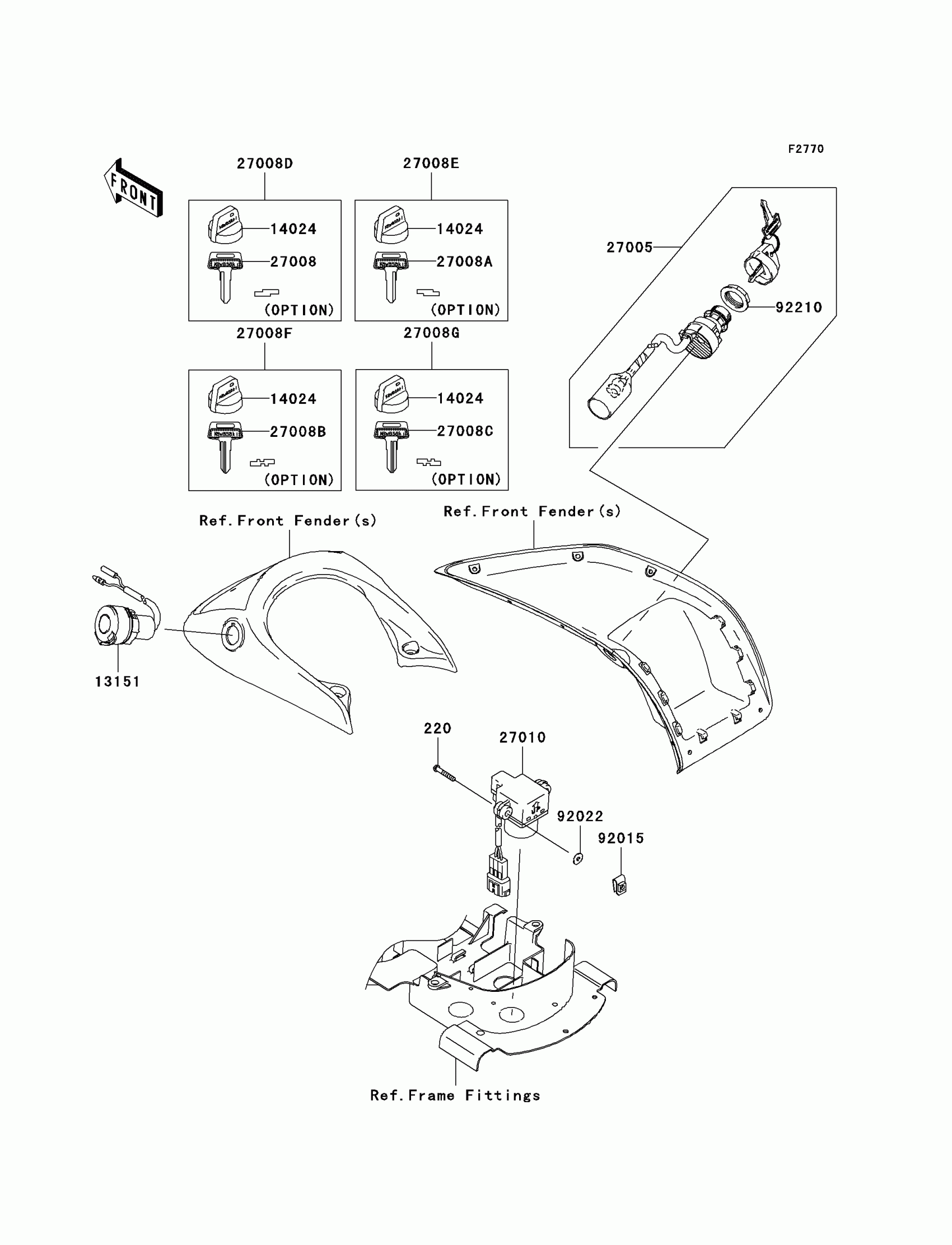

Kawasaki Brute Force 650 4x4i (Canada Only) Ignition Switch Diagram

Description

Price

220

SCREW-PAN-CROS,4X25

220AA0425

$0.86

13151

SWITCH-COMP,D.C.TERMINAL

13151-0003

$145.52

14024

COVER,KEY

14024-1551

$4.72

27005

SWITCH-ASSY-IGNITION

27005-0019

$105.42

27008

KEY-LOCK,BLANK

27008-1041

$13.56

27008A

KEY-LOCK,BLANK

27008-1042

$13.56

27008B

KEY-LOCK,BLANK

27008-1043

$13.56

27008C

KEY-LOCK,BLANK

27008-1044

$16.83

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$17.51

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$17.51

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$14.12

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$14.12

27010

SWITCH,INVERT SENSOR

27010-1421

$204.08

92015

NUT,4MM

92015-1567

$5.66

92022

WASHER,4.3X12.5X1

92022-1888

$2.41

92210

NUT,IGNITION SWITCH

92210-1109

$4.67
