2005 Kawasaki Brute Force 650 4x4 Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

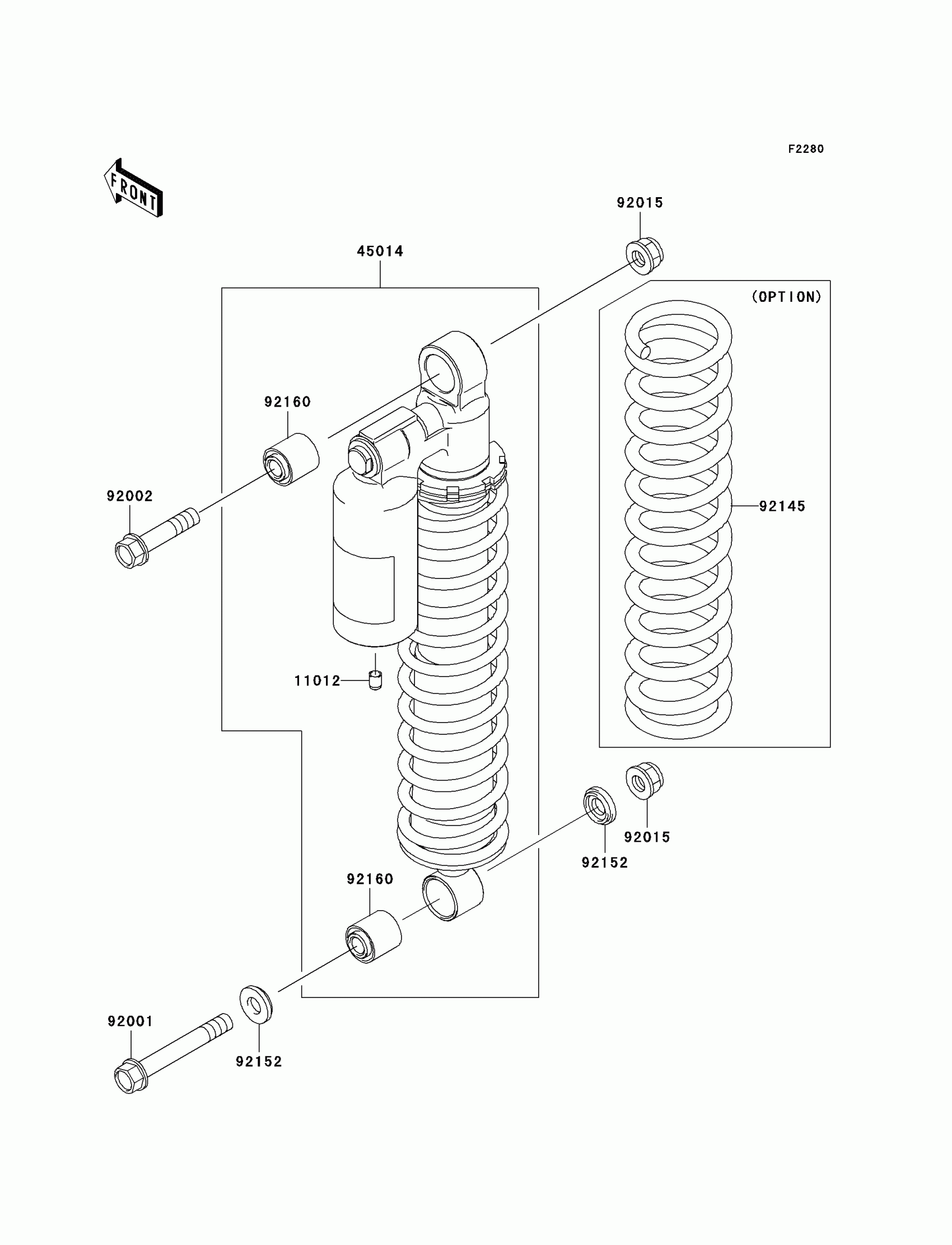

2005 Kawasaki Brute Force 650 4x4 Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1283

1
Out of stock

45014

SHOCKABSORBER

45014-0028

1
Out of stock

92001

BOLT,FLANGED,12X88

92001-1693

1
Out of stock

92002

BOLT,FLANGED,12X55

92002-1840

1
Out of stock

92015

NUT,LOCK,12MM

92015-1617

1
Out of stock

92145

SPRING,REAR SHOCK,K=24.5N/MM

92145-0231

1
Out of stock

92152

COLLAR

92152-1293

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1777

1
Out of stock
