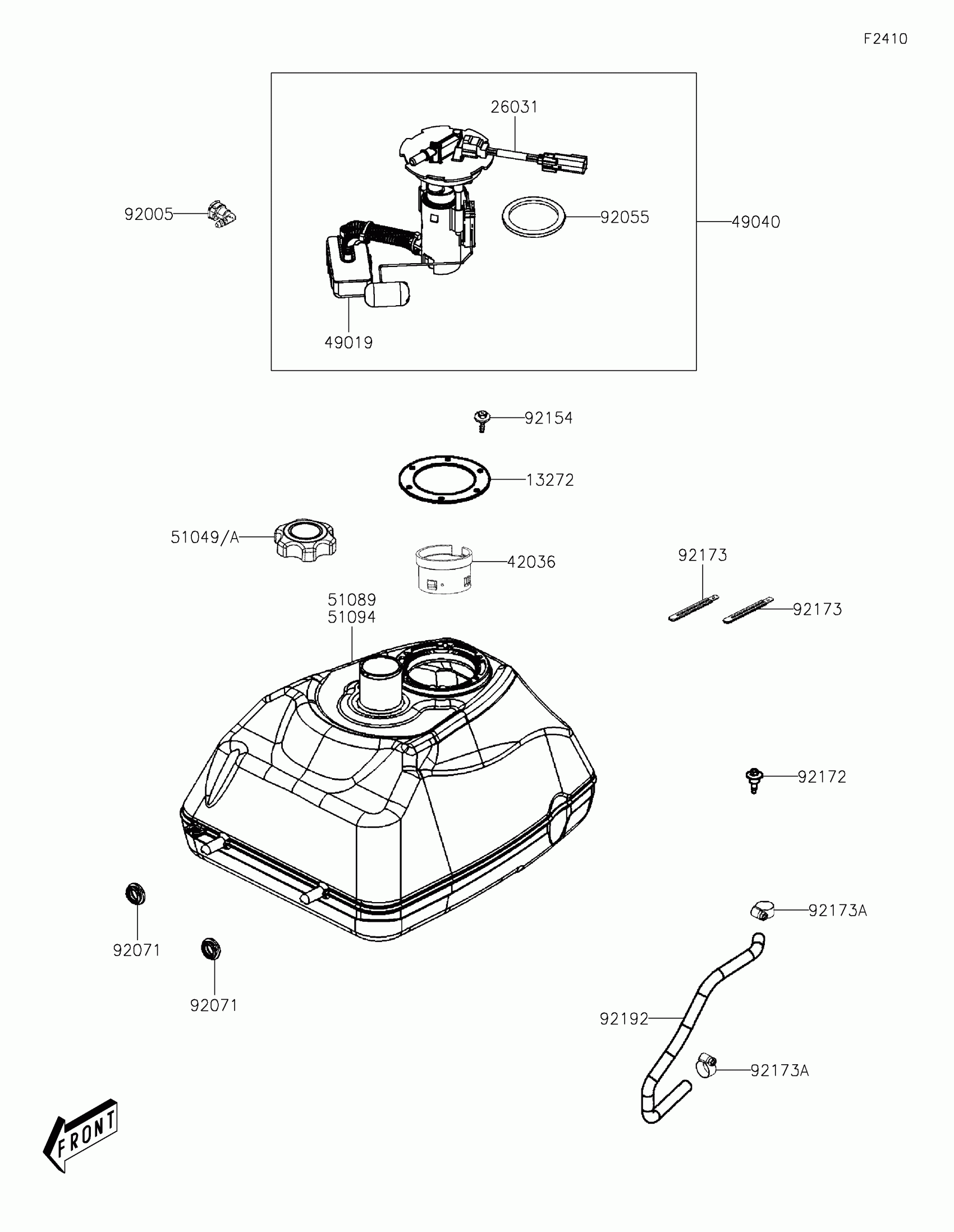

Kawasaki Brute Force 450 Fuel Tank Diagram

Description

Price

13272

PLATE,FUEL PUMP

13272-Y050

$10.03

26031

HARNESS,SUB,FUEL PUMP

26031-Y041

$34.07

42036

SLEEVE,FUEL TANK

42036-Y003

$4.34

49019

FILTER-FUEL

49019-Y004

$43.33

49040

PUMP-FUEL

49040-Y004

$439.32

51049

CAP-TANK

51049-Y007

$13.69

51049A

CAP-TANK,FUEL

51049-Y008

$18.51

51089

TANK-COMP-FUEL

51089-Y001

$316.01

51094

TANK-COMP-FUEL

51094-Y001

$439.67

92005

FITTING,FUEL PUMP

92005-Y002

$19.66

92055

RING-O,FUEL PUMP

92055-Y079

$23.73

92071

GROMMET,FUEL TANK

92071-Y007

$1.81

92154

BOLT,5X16

92154-Y085

$1.98

92172

SCREW

92172-Y095

$5.39

92173

CLAMP

92173-Y004

$1.92

92173A

CLAMP,12.5MM

92173-Y043

$3.76

92192

TUBE

92192-Y075

$38.74
