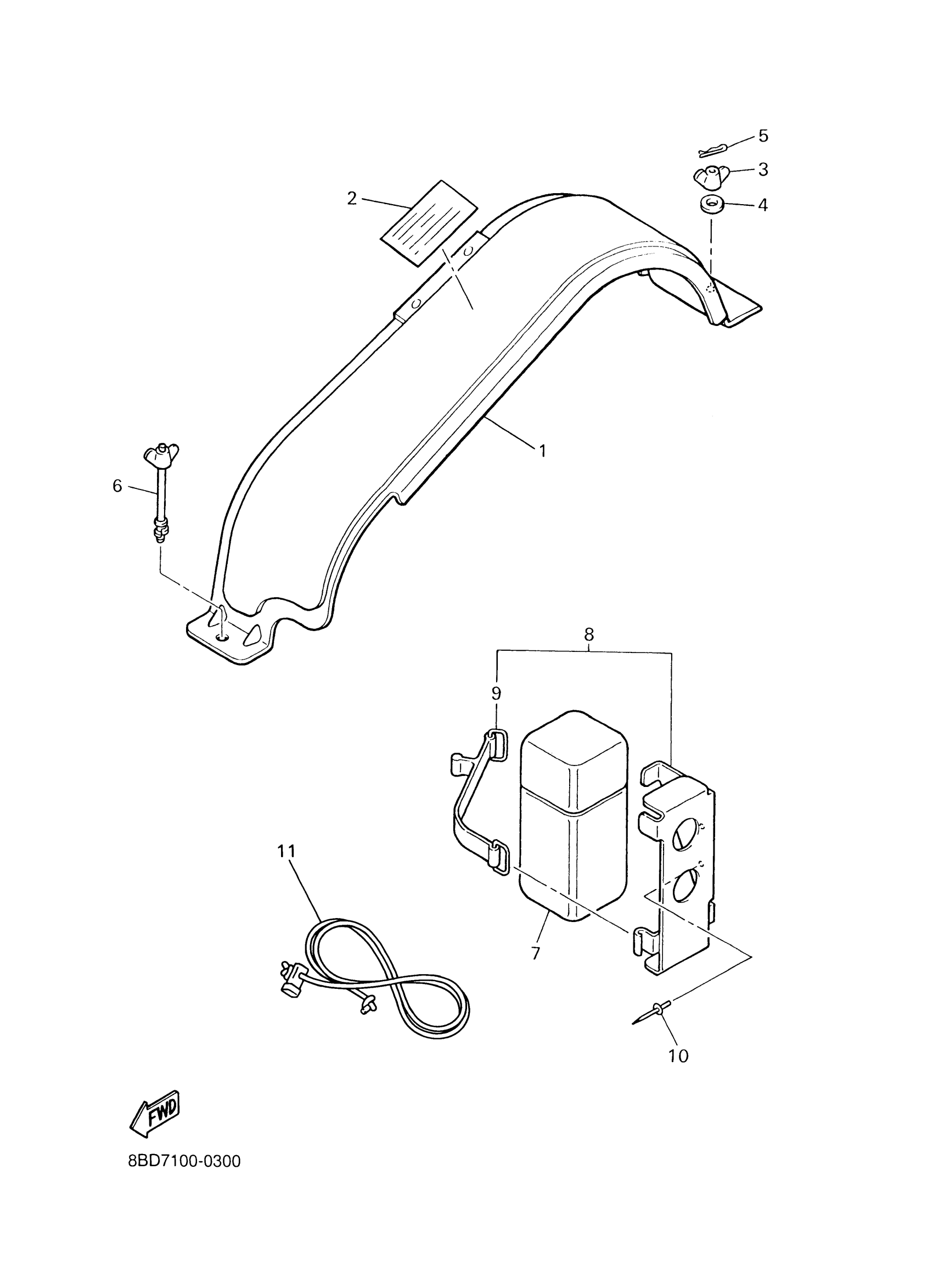

Find the part on the Guard. Luggage Box diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Guard. Luggage Box Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUARD, DRIVE

8R4-77311-00-00

—
Out of stock

2

LABEL, WARNING 2

8BD-77762-00-00

1
Out of stock

3

NUT, WING(8Y1)

90175-08021-00

—
Out of stock

4

WASHER(6TC)

92907-08200-00

1
Out of stock

5

CLIP(4BP)

90468-16192-00

1
Out of stock

6

SCREW

8V0-77387-00-00

1
Out of stock

7

TOOL KIT

85L-28100-01-00

1
Out of stock

8

BRACKET, TOOL BOX FITTING

8AB-21945-00-00

—
Out of stock

9

BAND, BATTERY

4J2-82131-01-00

1
Out of stock

10

RIVET, BLIND

90267-48060-00

1
Out of stock

11

EMERGENCY STARTER ROPE (BRAIDE

8R4-15780-00-00

—
Out of stock
