2001 Yamaha BR250TF 8BD8 Frame Diagram

← All diagrams

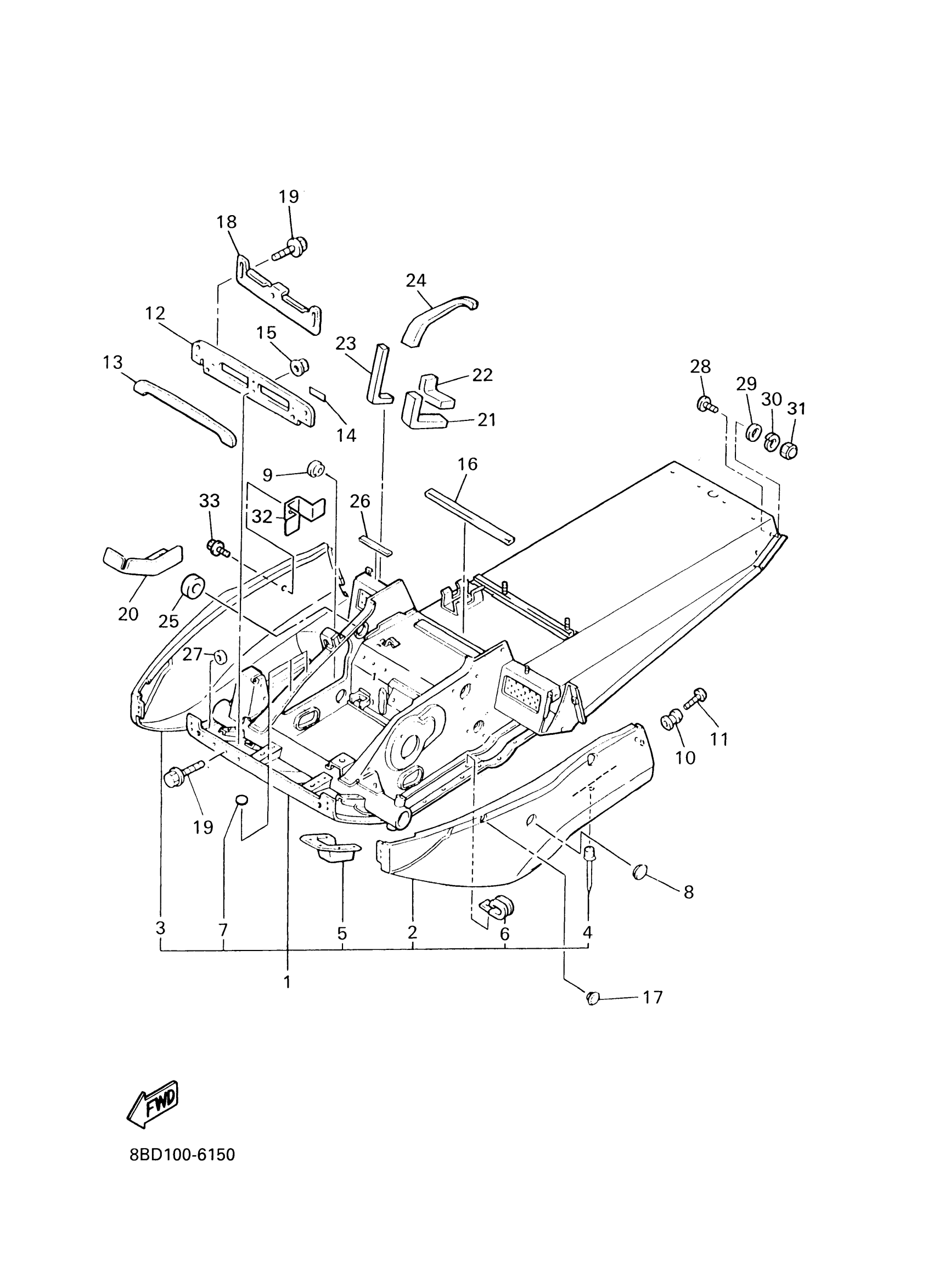

Find the part on the Frame diagram for your 2001 Yamaha BR250TF 8BD8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha BR250TF 8BD8 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8BD-21910-00-00

1
Out of stock

2

HOOD 1

84A-21982-00-00

—
Out of stock

3

HOOD 2

84A-21983-00-00

—

$234.78

In stock

4

RIVET, BLIND

90267-48060-00

1

$2.00

In stock

5

COVER 2

80F-2198G-00-00

—

$25.02

In stock

6

CLAMP

90465-08028-00

1

$4.62

In stock

7

SPACER

80F-21998-00-00

—

$11.69

In stock

8

PLUG (8K4)

90338-40099-00

1

$11.89

In stock

9

GROMMET 117217730000

90480-40047-00

1

$3.91

In stock

10

. HOLDER, LATCH

8M6-77175-00-00

1

$12.72

In stock

11

SCREW, BINDING

98907-06030-00

1

$5.94

In stock

12

COVER 1

8V7-2198F-00-00

—

$95.74

In stock

13

DAMPER 1

8V7-77198-01-00

1
Out of stock

14

LABEL,WARNING 2

8BE-77762-00-00

1
Out of stock

15

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

16

SHIELD, NOISE 1

8R4-23891-00-00

—

$3.49

In stock

17

PLUG (8R4)

90338-09127-00

—

$3.74

In stock

18

COVER 2

8V7-2198G-00-00

—

$28.42

In stock

19

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

20

SHIELD, HEAT

80F-2199H-00-00

1
Out of stock

21

PATCH 1

8V7-21961-00-00

—

$7.05

In stock

22

PATCH 1

8V7-21961-00-00

—

$7.05

In stock

23

PATCH 3

8V7-21963-00-00

1
Out of stock

24

PATCH 4

82X-21964-00-00

1
Out of stock

25

PATCH 7

80F-21967-00-00

1
Out of stock

26

DAMPER, PLATE

90520-10012-00

1
Out of stock

27

PATCH 9

80F-21989-00-00

1
Out of stock

28

SCREW, BINDING

98907-08016-00

1
Out of stock

29

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

30

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

31

NUT, CAP

95307-08800-00

—
Out of stock

32

STAY, BELT

8BD-77338-00-00

—
Out of stock

33

BOLT, FLANGE(JN5)

95817-08016-00

—

$4.12

In stock
