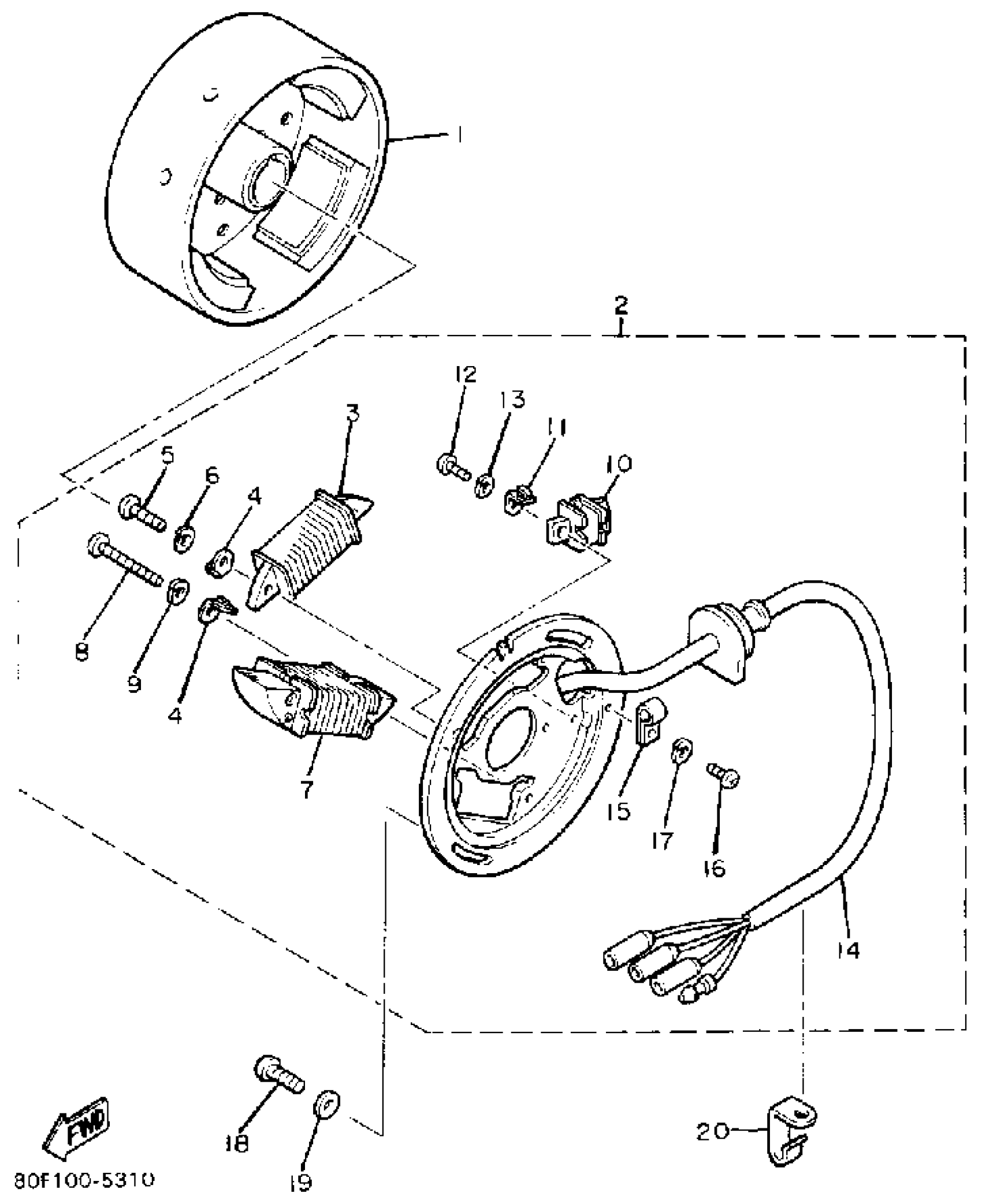

Find the part on the Generator diagram for your 1985 Yamaha Bravo (BR250J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha Bravo (BR250J) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. ROTOR ASSEMBLY

8AE-85550-00-00

1
Out of stock

2

BASE ASSEMBLY

8R4-85560-M0-00

1
Out of stock

3

CHARGE COIL ASSY

8R4-85520-M0-00

1

$120.11

In stock

4

. TERMINAL, EARTH 2

8R4-85569-M0-00

1
Out of stock

5

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

6

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

7

. COIL, LIGHTING 1

8R4-81313-M0-00

1
Out of stock

8

SCREW, PAN

98507-05035-00

1

$6.69

In stock

9

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

10

PULSER ASSY

8R4-85580-M0-00

—

$148.80

In stock

11

. TERMINAL, EARTH 1

8R4-85568-M0-00

1
Out of stock

12

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

CORD ASSEMBLY

(8R4-8131X-M0-00)

1
Out of stock

15

CLAMP (2T4)

90461-05036-00

—

$4.05

In stock

16

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

18

SCREW, BIND (705)

98980-06016-00

—
Out of stock

19

WASHER, PLATE 6261117600

90201-06043-00

—
Out of stock

20

CLAMP (706)

90465-06100-00

—
Out of stock
