1982 Yamaha BR250F Steering Gate BR250F - G Diagram

← All diagrams

Find the part on the Steering Gate BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

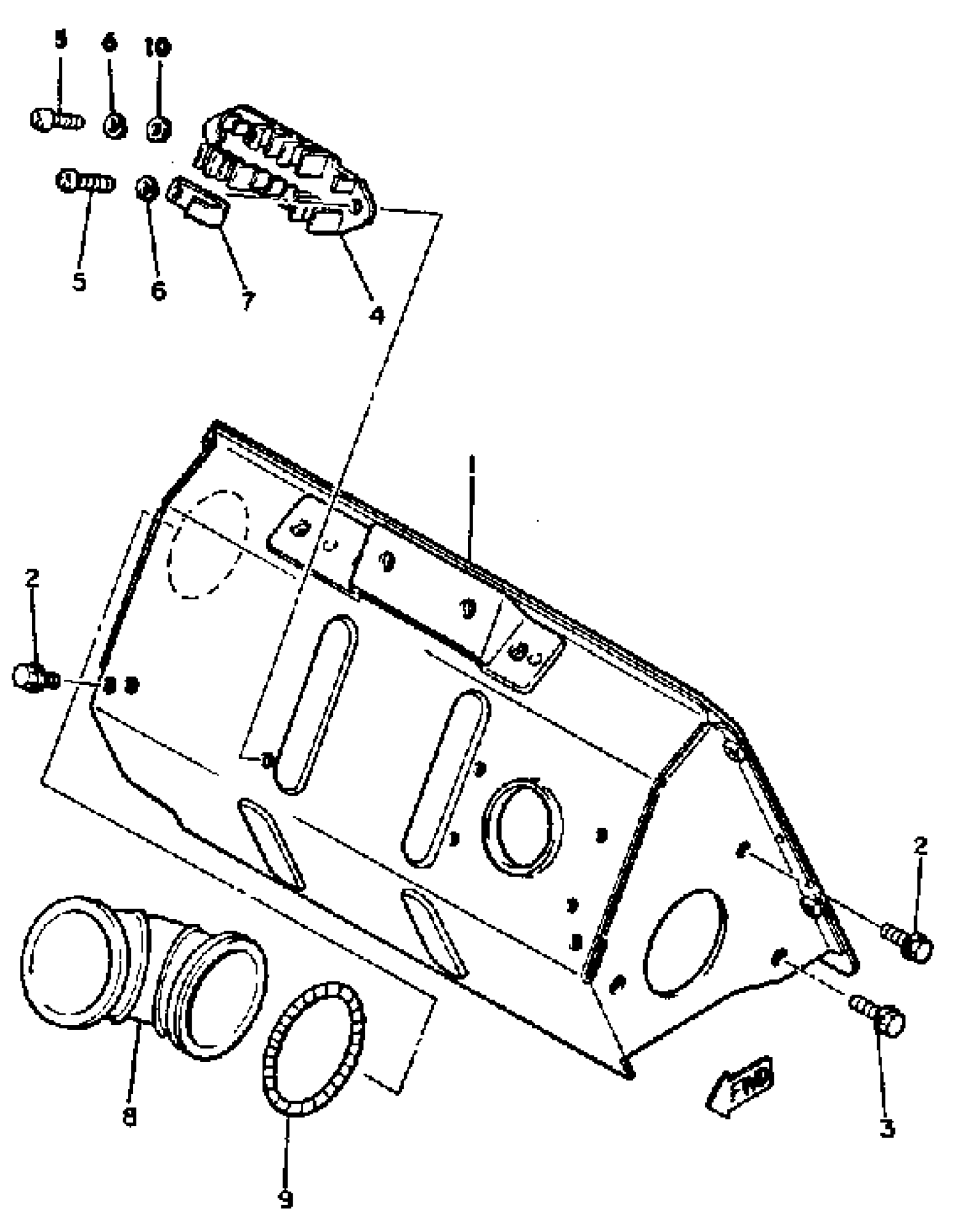

1982 Yamaha BR250F Steering Gate BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GATE, STEERING

8R4-23871-00-00

1
Out of stock

2

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

3

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

4

HOLDER, COUPLER

8F3-21794-00-00

—

$7.18

In stock

5

SCREW, PAN

98507-06014-00

1

$6.18

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

CLAMP

90465-08028-00

1

$4.62

In stock

8

PIPE, SUCTION

8A5-14423-00-00

1
Out of stock

9

1

$6.89

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
