1982 Yamaha BR250F SKI BR250F - G Diagram

← All diagrams

Find the part on the SKI BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

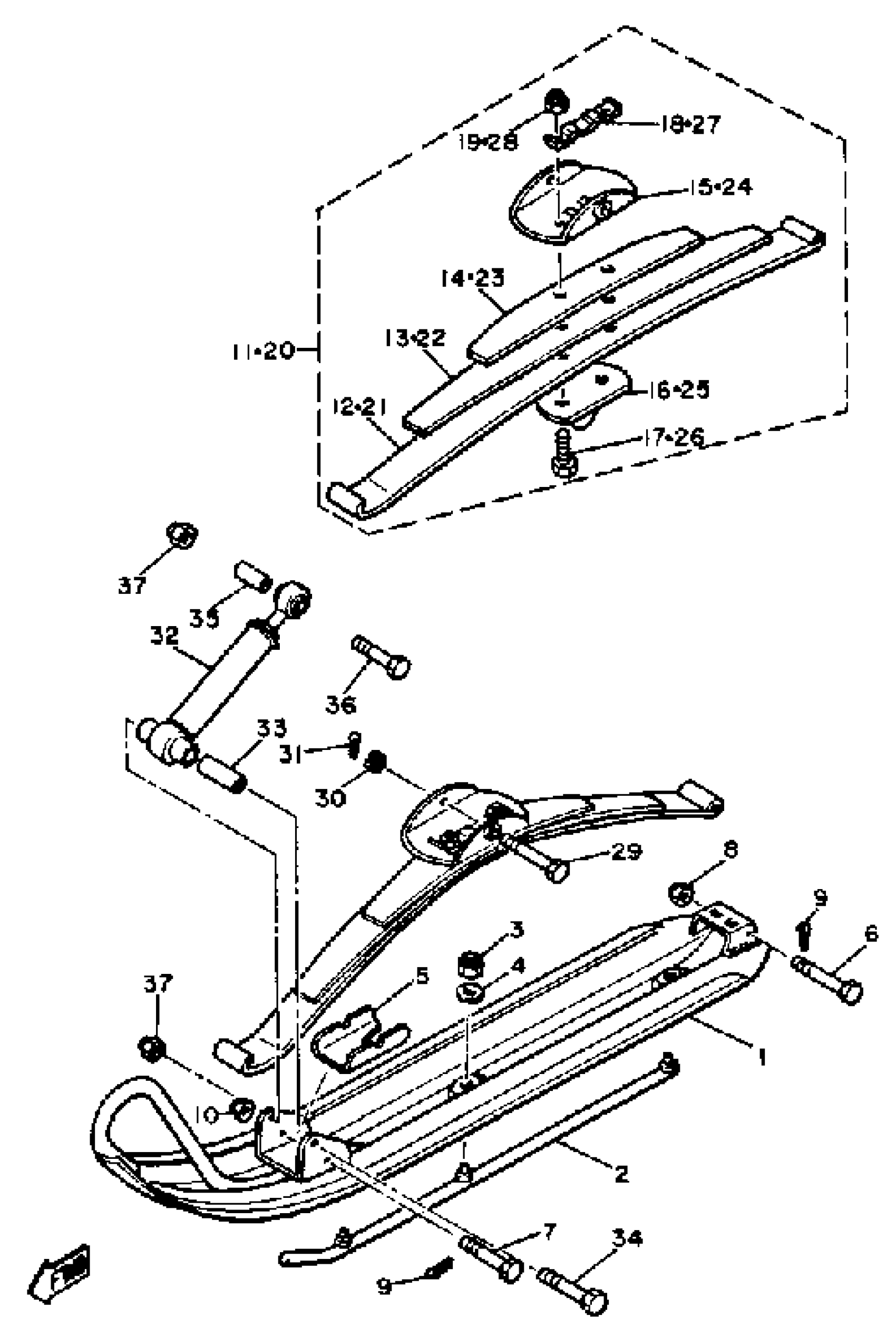

1982 Yamaha BR250F SKI BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP

8F3-23710-01-00

1

$197.99

In stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, NYLON

95717-08300-00

1

$2.57

In stock

4

WASHER(6TC)

92907-08200-00

1
Out of stock

5

PLATE, WEAR

8F3-23735-00-00

1

$17.98

In stock

6

1

$8.14

In stock

7

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

8

NUT, NYLON

95717-08300-00

1

$2.57

In stock

9

PIN, COTTER

91490-20025-00

1

$1.31

In stock

10

NUT, U

95617-08100-00

1

$6.78

In stock

11

SPRING ASSEMBLY 1

8R4-23760-00-00

1
Out of stock

12

LEAF 1

8F3-23761-10-00

1
Out of stock

13

LEAF 2

8F3-23762-10-00

1
Out of stock

14

LEAF 3

8F3-23763-10-00

1
Out of stock

15

SADDLE

8G6-23766-00-00

—

$32.37

In stock

16

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

17

. BOLT

90109-105E7-00

1
Out of stock

18

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

19

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

20

SPRING ASSY 2

8R4-23770-10-00

—

$249.91

In stock

21

LEAF 1

8F3-23761-10-00

1
Out of stock

22

LEAF 2

8F3-23762-10-00

1
Out of stock

23

LEAF 3

8F3-23763-10-00

1
Out of stock

24

SADDLE

8G6-23766-00-00

—

$32.37

In stock

25

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

26

. BOLT

90109-105E7-00

1
Out of stock

27

WASHER, ROCK (8J5)

90215-10155-00

—

$11.66

In stock

28

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

29

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

30

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

SHOCK ABSORBER ASSEMBLY

8J5-23350-00-00

1
Out of stock

33

COLLAR (878)

90387-08262-00

—

$9.02

In stock

34

BOLT, HEXAGON

97013-08055-00

—

$3.25

In stock

35

COLLAR (864)

90387-08224-00

—

$7.52

In stock

36

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

37

NUT, NYLON

95717-08300-00

1

$2.57

In stock
