1982 Yamaha BR250F Intake BR250F - G Diagram

← All diagrams

Find the part on the Intake BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

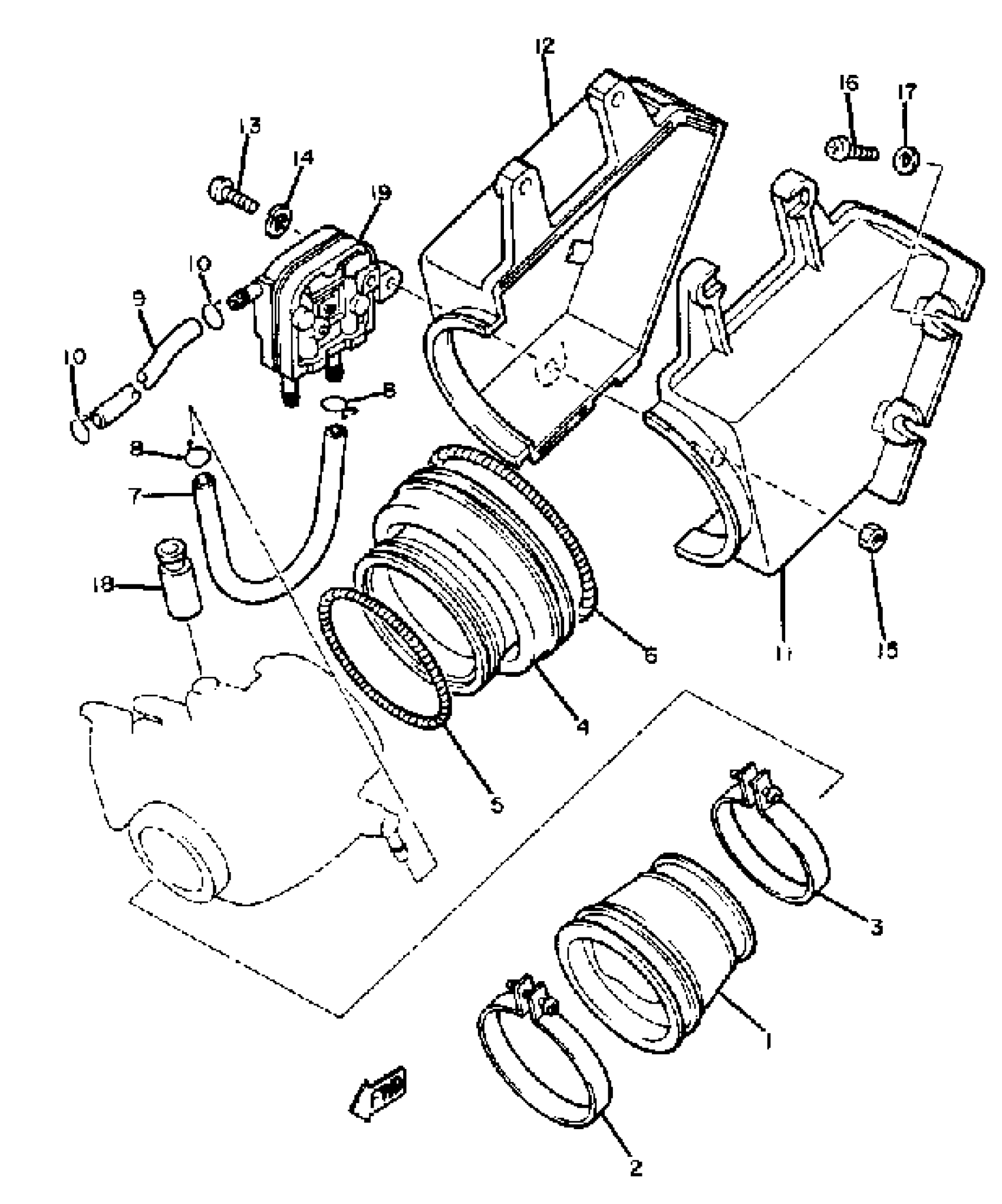

1982 Yamaha BR250F Intake BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

8R4-13555-00-00

—

$43.42

In stock

2

HOSE CLAMP ASSY

90450-64004-00

1

$12.00

In stock

3

CLAMP HOSE 304144550000

90460-51059-00

1

$14.64

In stock

4

JOINT, AIR CLEANER 1

8R4-14453-00-00

1

$32.53

In stock

5

SPRING, TENSION (8R4)

90506-06261-00

1

$6.94

In stock

6

SPRING, TENSION (8R4)

90506-06262-00

1

$5.74

In stock

7

HOSE (L450)

90445-10144-00

1

$4.52

In stock

8

CLIP

90467-090A2-00

1

$2.51

In stock

9

HOSE

90446-11326-00

1
Out of stock

10

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

11

SILENCER, INTAKE 1

8R4-14431-00-00

1
Out of stock

12

SILENCER 2

8R4-14441-01-00

—

$26.23

In stock

13

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

16

BOLT, HEXAGON

97013-05012-00

—

$1.43

In stock

16

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

17

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

18

BOOT

8J5-26352-00-00

1
Out of stock

19

FUEL PUMP ASSY

8R4-24410-01-00

—

$153.29

In stock
