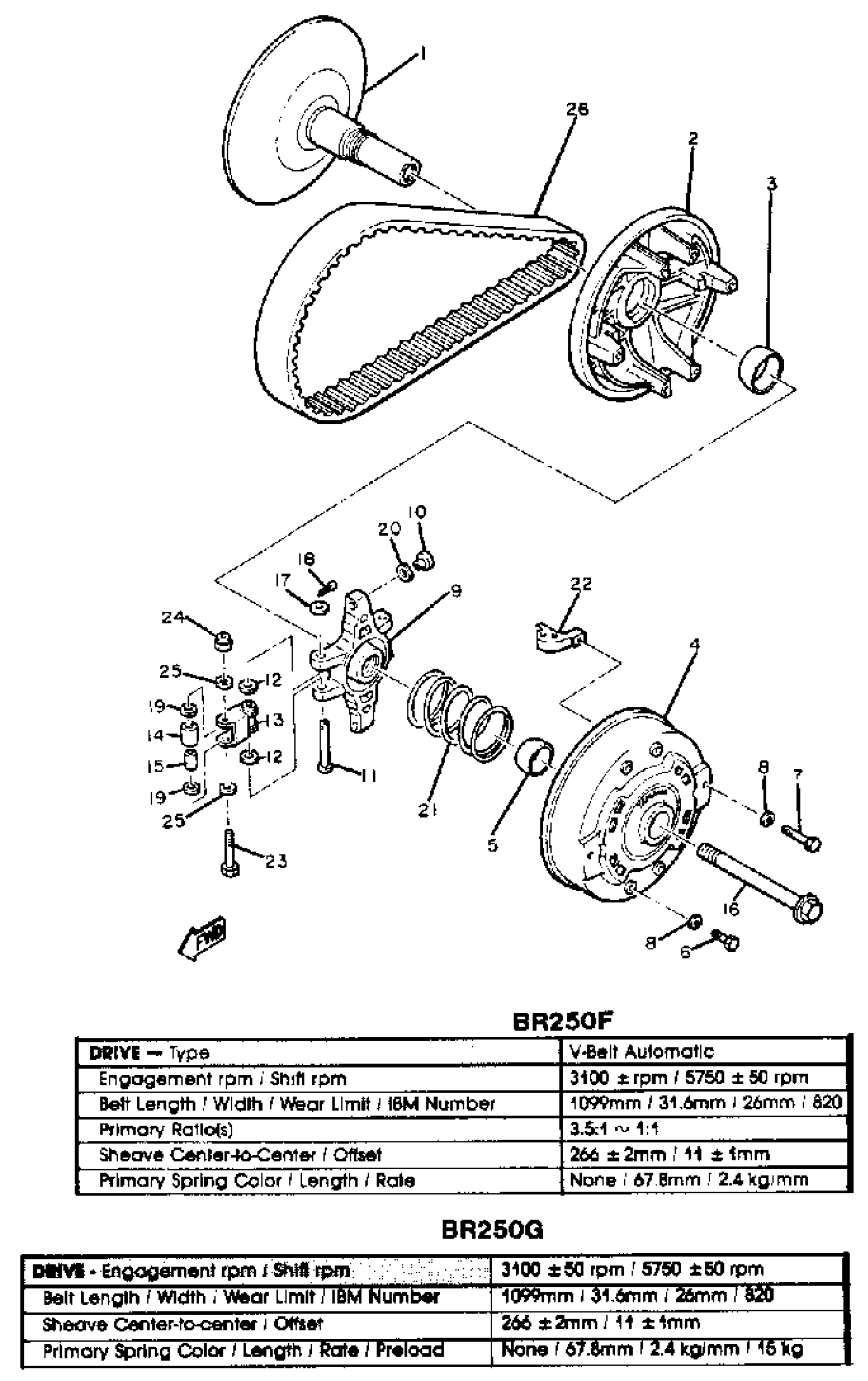

Find the part on the Primary Sheave BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha BR250F Primary Sheave BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8R4-17610-00-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8H9-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-39025-00

1
Out of stock

4

CAP

8H9-17631-00-00

1
Out of stock

5

BUSH, SPEC''L SHAPE

90389-26024-00

1
Out of stock

6

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

7

BOLT (682)

97095-06040-00

1

$2.36

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

SPIDER

8H9-17627-00-00

1
Out of stock

10

SLIDER

8F2-17653-00-00

1

$10.03

In stock

11

PIN, CLEVIS

90240-07112-00

1
Out of stock

12

WASHER, PLATE

90201-06104-00

1
Out of stock

13

WEIGHT

8H9-17632-01-00

1
Out of stock

14

COLLAR (8H9)

90387-09698-00

1

$5.42

In stock

15

COLLAR (8H9)

90387-06697-00

1

$13.34

In stock

16

BOLT

8H9-17647-00-00

1
Out of stock

17

WASHER, PLATE

90201-06M08-00

1
Out of stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock

19

WASHER, PLATE

90201-09728-00

1
Out of stock

20

WASHER, PLATE (8K2)

90201-090A4-00

—

$1.05

In stock

21

SPRING, COMPRESSION

90501-50654-00

1
Out of stock

21

SPRING, COMPRESSION

90501-55485-00

1
Out of stock

22

CAM

8J2-17623-00-00

1
Out of stock

23

BOLT (90101-06663)

90101-06663-00

1
Out of stock

24

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

25

WASHER, PLATE (8H9)

90201-06727-00

—
Out of stock

26

V-BELT

820-17641-01-00

1

$33.66

In stock

26

CLUTCH TUNE-UP KIT

(8H9-00000-50-00)

1
Out of stock

26

PRIMARY SHEAVE ASSEMBLY

(8R4-17601-09-00)

1
Out of stock
