1982 Yamaha BR250F Instrument Panel BR250F - G Diagram

← All diagrams

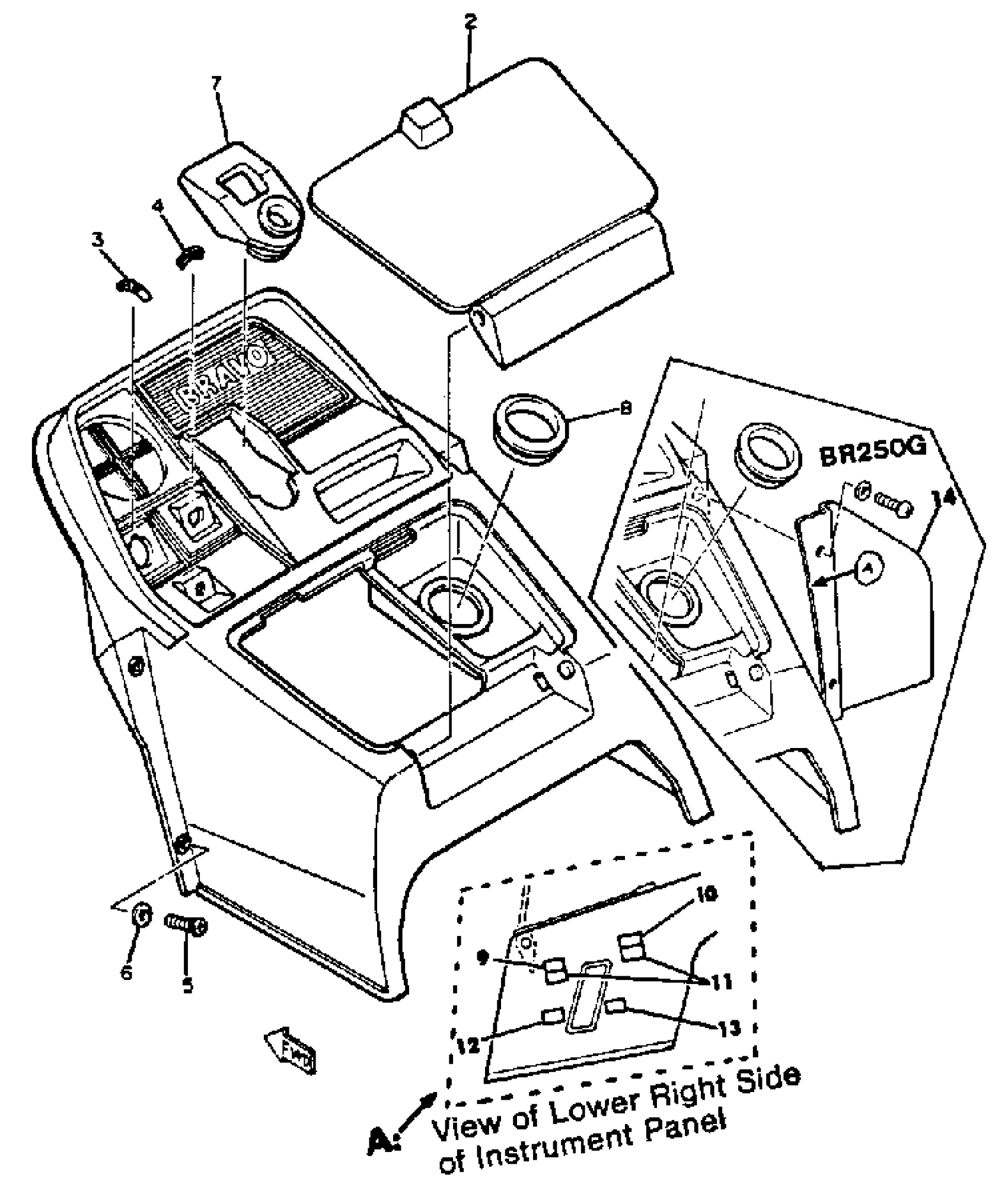

Find the part on the Instrument Panel BR250F - G diagram for your 1982 Yamaha BR250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha BR250F Instrument Panel BR250F - G Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

8R4-77711-00-00

1
Out of stock

2

PANEL, INSTRUMENT

8R4-77712-00-00

1
Out of stock

3

INDICATOR 1

8K2-77741-01-00

1
Out of stock

4

INDICATOR 2

8K4-77742-00-00

1
Out of stock

5

SCREW, PAN

98517-05012-00

1

$3.91

In stock

6

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

6

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

7

GROMMET, INSTRUMENT PANEL

8R4-77740-00-00

—

$17.14

In stock

8

GROMMET (8R4)

90480-53313-00

—

$7.05

In stock

9

INDICATOR 2

8G8-77742-00-00

1
Out of stock

10

INDICATOR 3

8A1-77743-00-00

1
Out of stock

11

INDICATOR 4

878-77744-00-00

1
Out of stock

12

INDICATOR 5

878-77745-00-00

1
Out of stock

13

INDICATOR 4

8A1-77744-00-00

1
Out of stock

14

BRACKET 1

8U0-77721-00-00

1
Out of stock
